ROEMHELD Lifting Modules – Shop Floor, Manual-Hydraulic, M4.301 (450, 900, 1350 lbs) Part # CLR-8915-06-30-H Carr Lane Mfg.®

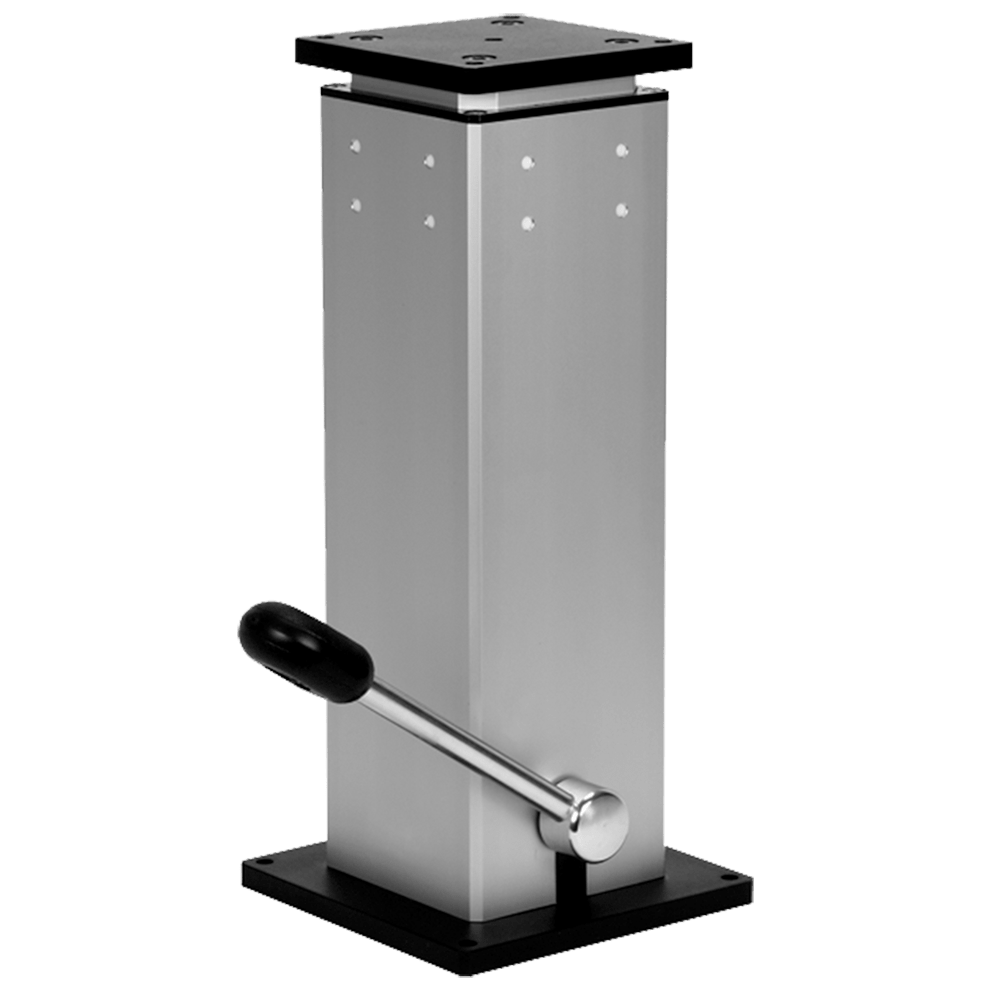

Lifting modules are base units that can be used for controlled lifting and lowering of loads, or simply for convenient height adjustment. These sturdy units feature quick manual-hydraulic operation to allow performing a wide range of work at an ergonomically optimum height. Lifting-stroke movement is obtained hydraulically, with fluid being pumped manually by a foot-lever-actuated piston pump into a plunger cylinder. When the foot lever is lifted for retraction, fluid returns from the cylinder back to the reservoir due to the weight of the load, at a controlled lowering speed.

The "Shop Floor" lifting modules shown here have a 150mm-square aluminum column, rated for 500Nm bending moment. These modules can be ordered with a maximum lifting force of 450, 900, or 1350 lbs (greater lifting capacity requires more pump strokes to lift a given distance), with a choice of stroke length from 200 to 600mm. This sturdy industrial design features optimized ergonomics, simple operation, and an optimum working height.

Applications include industrial assembly working places, height adjustment of assembly working places in workshops, maintenance works, assembly fixtures, adjusting systems in supply processes of mid-sized objects, and handling systems for product packing and transfer.

Documents

M4.301

Data Sheet

ROEMHELD Lifting Modules – Shop Floor, Manual-Hydraulic, M4.301 (450, 900, 1350 lbs)

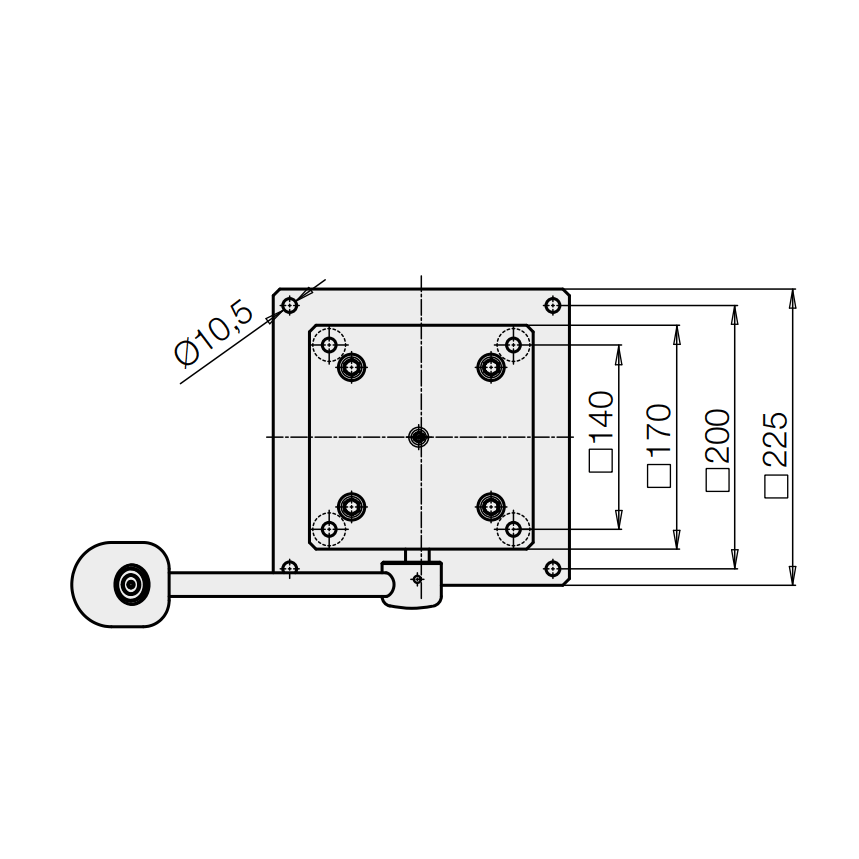

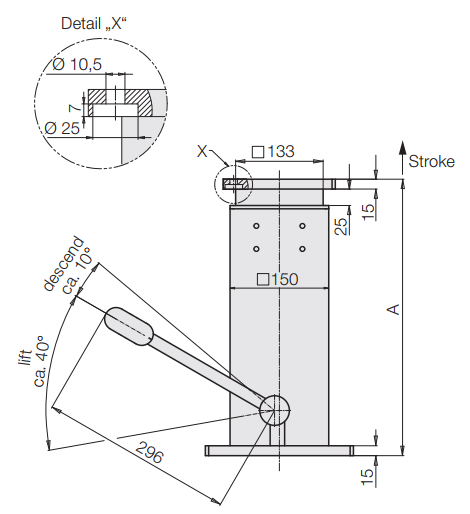

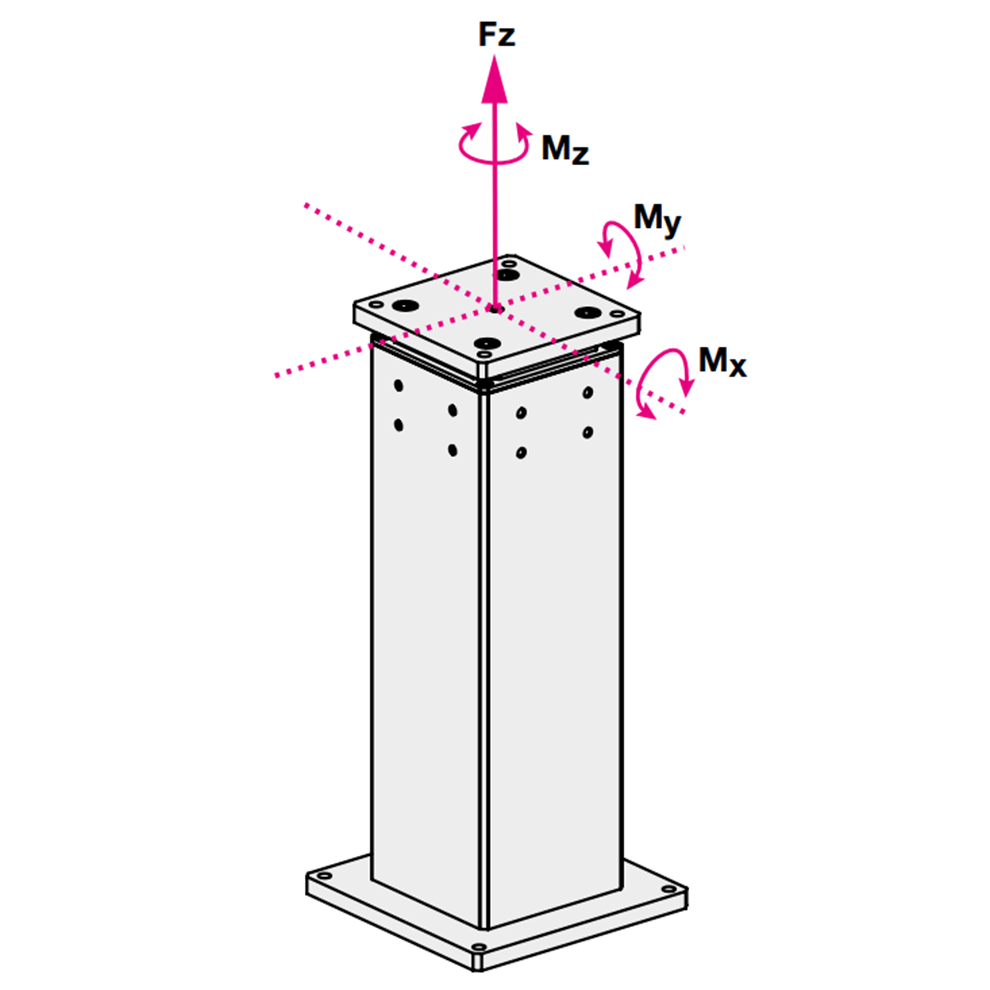

PART NO.	MAXIMUM LIFTING FORCE Fz (lbs)	ALLOWABLE TORQUE +/- Mx and My (Nm)	ALLOWABLE TORQUE +/- Mz (Nm)	STROKE (mm)	A RETRACTED HEIGHT (mm)
CLR-8915-02-20-H	450	500	300	200	420
CLR-8915-02-30-H	450	500	300	300	520
CLR-8915-02-40-H	450	500	300	400	620
CLR-8915-02-50-H	450	500	300	500	720
CLR-8915-02-60-H	450	500	300	600	820
CLR-8915-04-20-H	900	500	300	200	420
CLR-8915-04-30-H	900	500	300	300	520
CLR-8915-04-40-H	900	500	300	400	620
CLR-8915-04-50-H	900	500	300	500	720
CLR-8915-04-60-H	900	500	300	600	820
CLR-8915-06-20-H	1350	500	300	200	420
CLR-8915-06-30-H	1350	500	300	300	520
CLR-8915-06-40-H	1350	500	300	400	620
CLR-8915-06-50-H	1350	500	300	500	720
CLR-8915-06-60-H	1350	500	300	600	820
