Swivel Nuts

Work Supports & Rest Buttons

Save to My Project

What is this?

Product Information

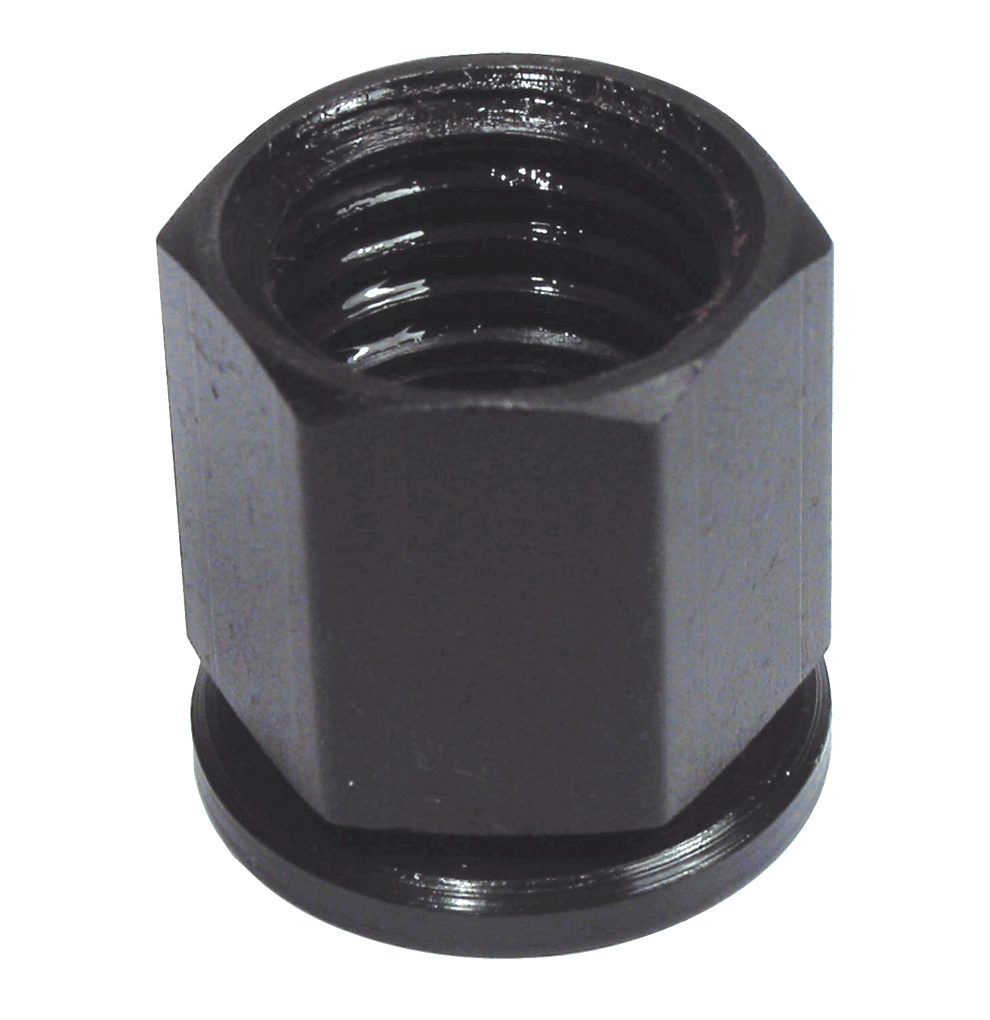

Swivel Nuts Part # CL-8-SN Carr Lane Mfg.®

Nut turns freely without pivoting while the contact pad remains stationary, to avoid moving or marring the workpiece. Available with tapped-hole sizes from 1/4-20 to 3/4-10 (M6 to M12 in metric). Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	1215 Steel	-	carburized-hardened Black Oxide	✔	✔
Pad	1215 Steel	-	Black Oxide Finish	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Swivel Nuts

Inch

PART NO.	A THREAD	B	C	D	E DIA
CL-4-SN	1/4-20	5/16	7/16	3/16	3/8
CL-5-SN	5/16-18	3/8	17/32	1/4	7/16
CL-6-SN	3/8-16	7/16	17/32	17/64	1/2
CL-8-SN	1/2-13	5/8	21/32	3/8	11/16
CL-10-SN	5/8-11	3/4	1	7/16	7/8
CL-12-SN	3/4-10	7/8	1	1/2	1

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

PART NO.	A THREAD	THREAD PITCH (mm)	B (mm)	C (mm)	D (mm)	E DIA (mm)
CLM-6-SN	M6	1	8	11	4.8	10
CLM-10-SN	M10	1.5	13	14	7	13
CLM-12-SN	M12	1.75	17	17	9.5	18

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
