Through Hole Screw Rest Button

Work Supports & Rest Buttons

Save to My Project

What is this?

Product Information

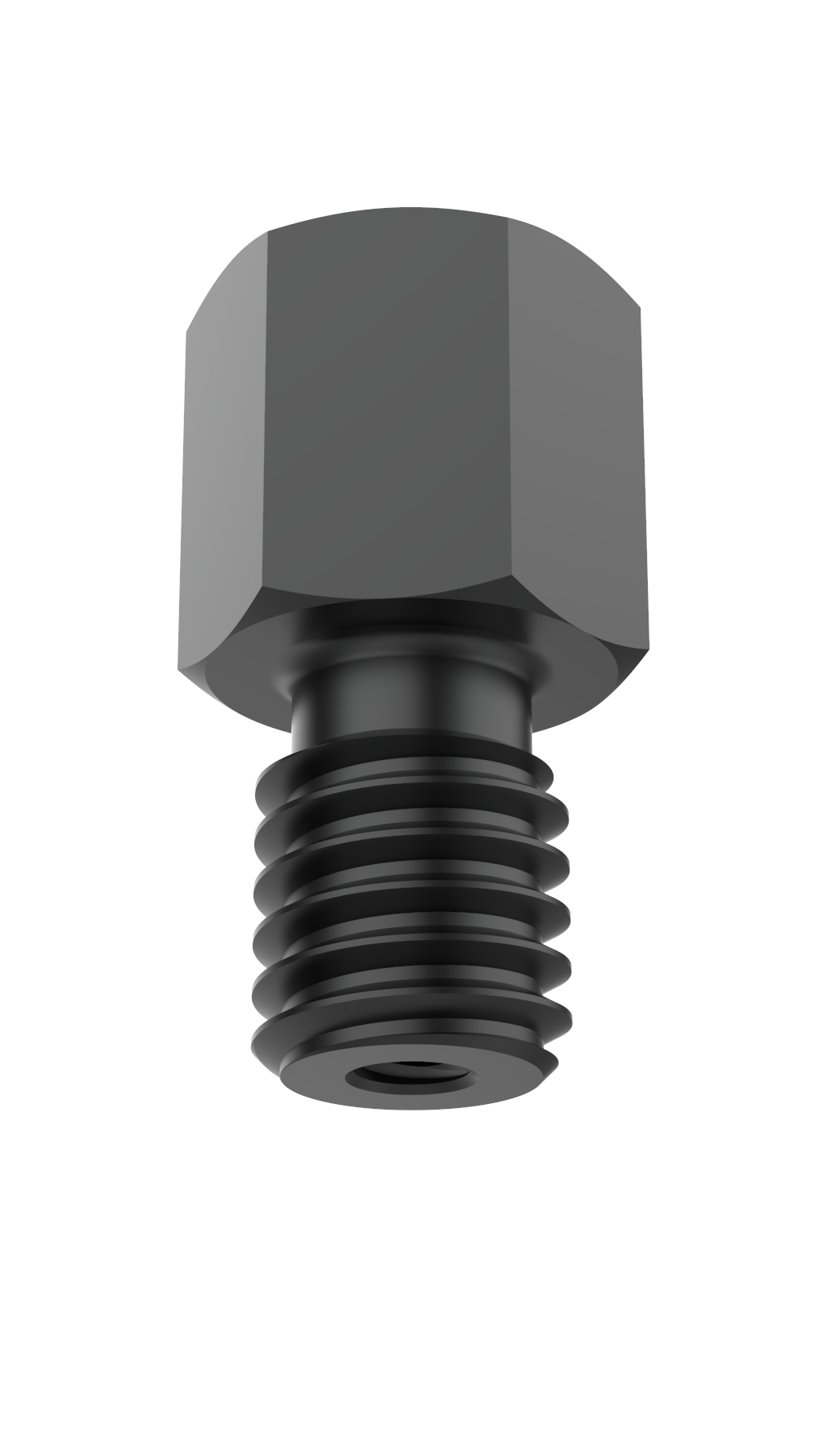

Through Hole Screw Rest Button Part # CL-8-SRB-PR Carr Lane Mfg.®

Position sensing threaded rest button with a hex machined .005 to .01” over nominal height for finish grinding after installation. Sensor contains .06 through hole allowing air to travel through and detect whether a part is loaded utilizing a sensor. The position sensing rest button also contains a #10-32 tapped hole on the shank for installation of a threaded nipple for easy air line installation. Available in inch and metric, Made in the USA

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1215 Steel	carburized-hardened .015 to .020" deep	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Through Hole Screw Rest Button

Inch

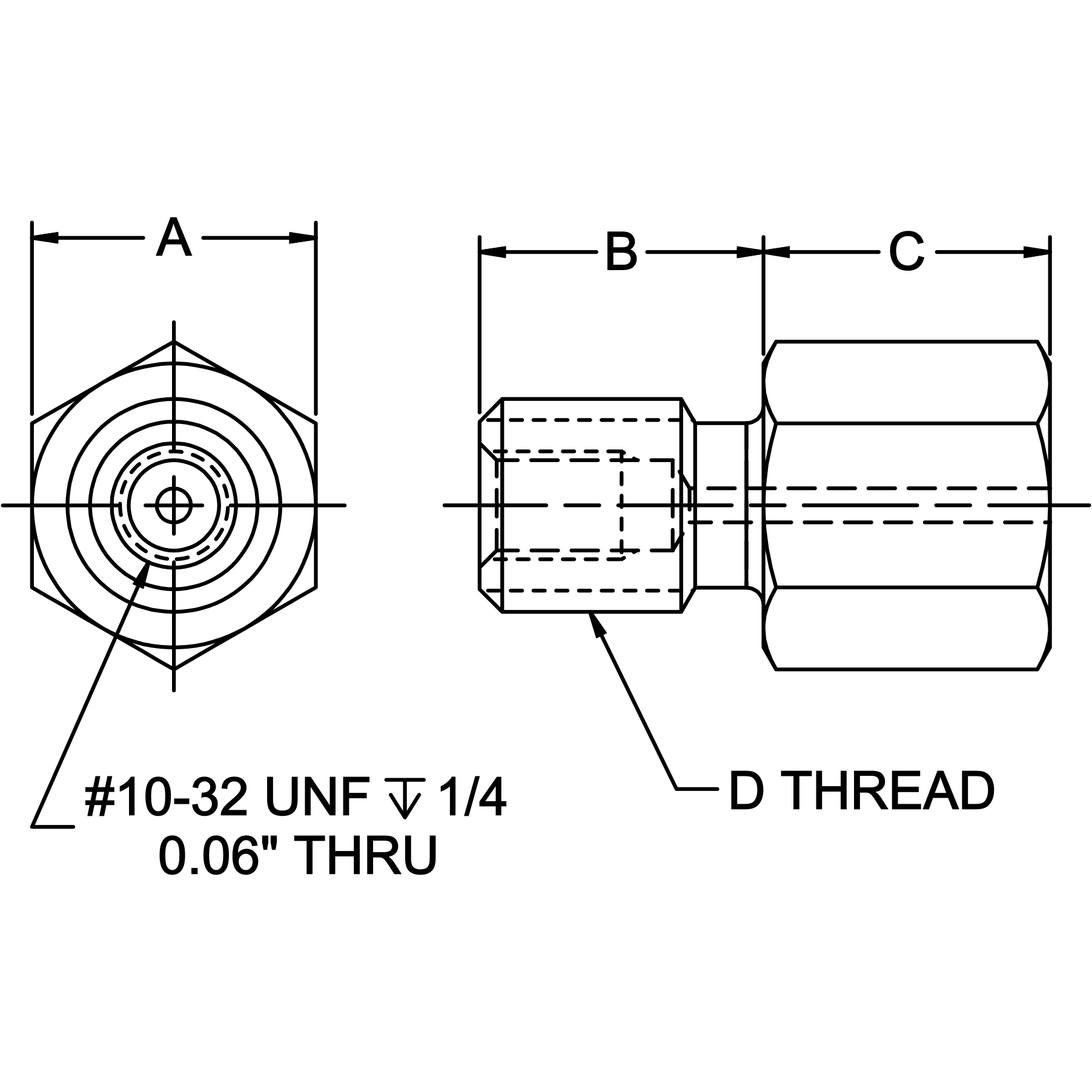

QUANTITY	PART NO.	A	B	C NOMINAL	C ACTUAL	D THREAD
	CL-8-SRB-PR	1/2	1/2	1/2	.5000	3/8-16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

QUANTITY	PART NO.	A	B	C NOMINAL	C ACTUAL	D THREAD
	CLM-1205-SRB-PR	17	16	5	5.13mm / 5.26mm	M12

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
