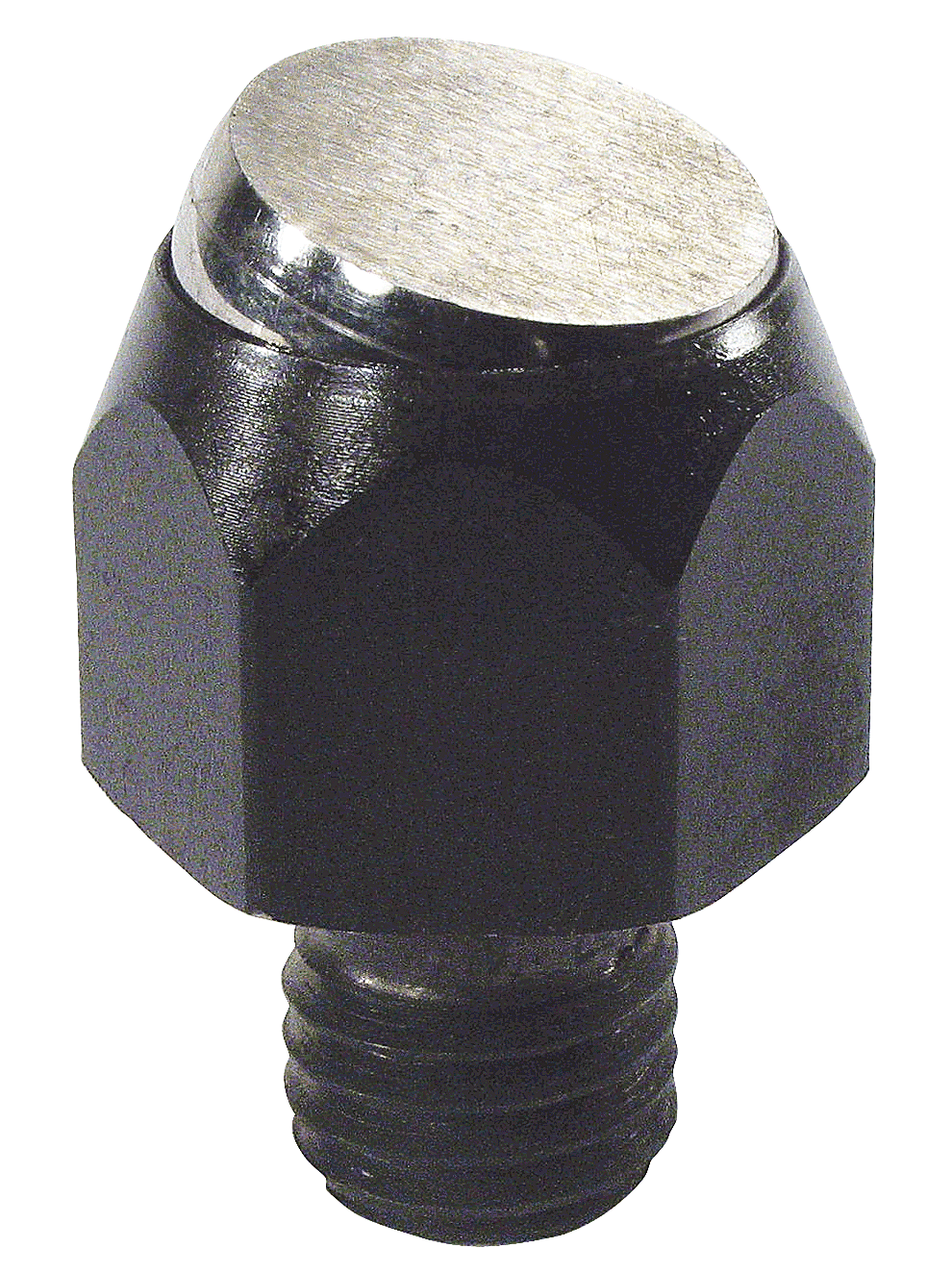

Swivel Contact Bolts Part # CL-MF40-2501 Carr Lane Mfg.®

Precision swivel ball that can be used either as a contact bolt or as a rest pad. As contact bolts, these swivel-ball units are ideal for evenly distributing clamping pressure on sloped or uneven surfaces. As rest pads, these units are precision ground (top and bottom) for accurate height location, even on sloped surfaces. 20° total swivel angle. Available in thread sizes from 5/16-18 to 5/8-11. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Used as a contact bolt

Used as a rest pad

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Ball	Chromium Steel	Heat Treated Rc 60-67	-	✔	✔
Body	1144 Steel	Heat Treated Rc 35-40	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Swivel Contact Bolts

Inch

PART NO.	A THREAD	B	D DIA	E NOMINAL	E ACTUAL	F	G
CL-MF25-2502	5/16-18	9/16	13/32	1/2	.5000	.32	15/32
CL-MF30-2503	3/8-16	13/16	19/32	13/16	.8125	.47	23/32
CL-MF40-2501	1/2-13	7/8	5/8	13/16	.8125	.41	23/32
CL-MF50-2501	5/8-11	1-1/16	13/16	1	1.0000	.61	29/32

Check Price & Availability
