Peerless Rest Pad Shim

Work Supports & Rest Buttons

Save to My Project

What is this?

Product Information

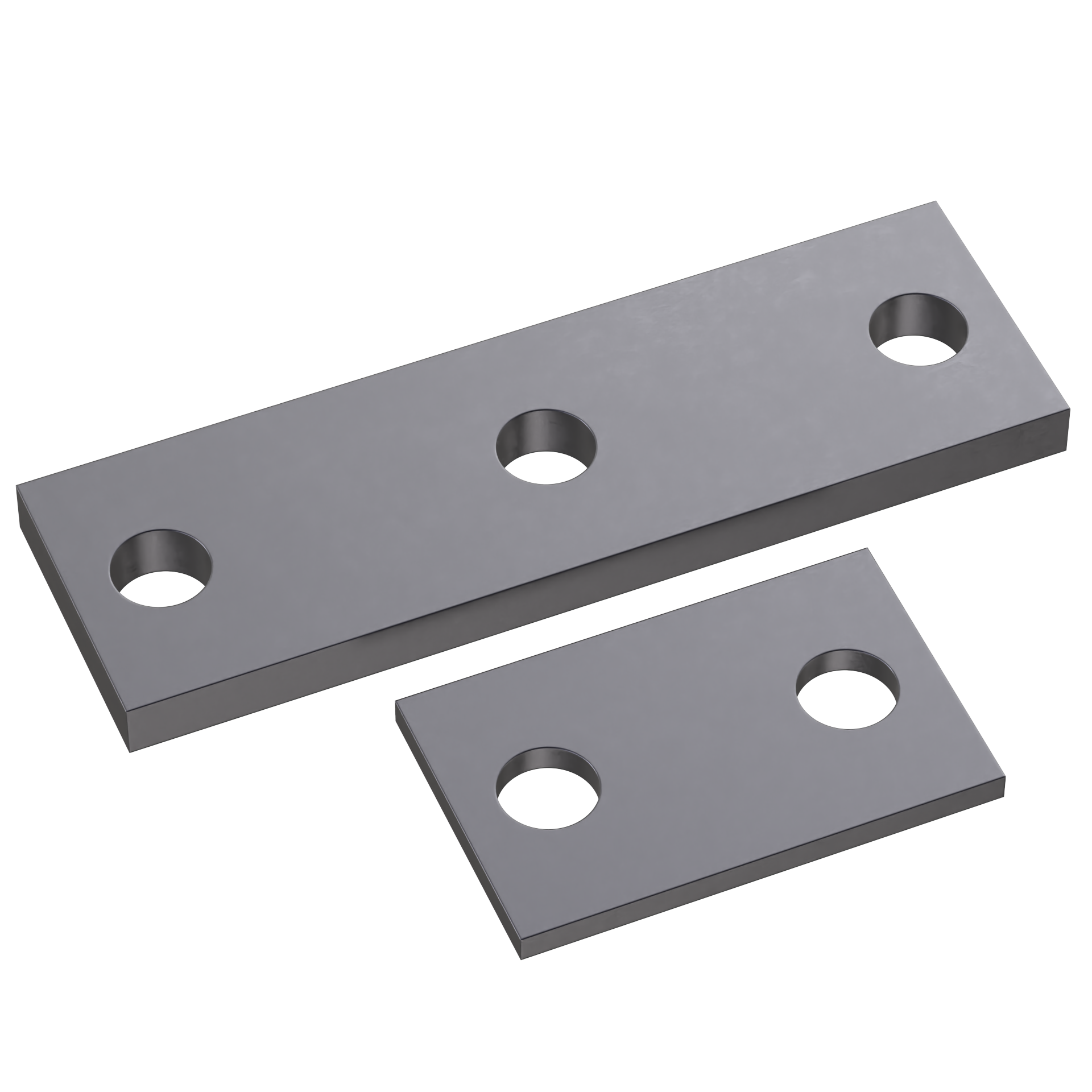

Achieve precision and perfect alignment with our Peerless Rest Pad Shims, designed to work seamlessly with Peerless Rest Pads. Available in 1/8” or 1/4” thicknesses for each size, these metal shims provide the fine adjustments necessary for optimal weld fixture alignment.

Ideal for manufacturers, these shims are placed between two components in a fixture. By adding or removing individual shims, you can precisely adjust the positioning of the second component relative to the first. This helps ensure that parts assemble smoothly after welding, allowing for flawless results every time.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

MATERIAL	HEAT TREAT	FINISH
1018 Steel	Case Hardened	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

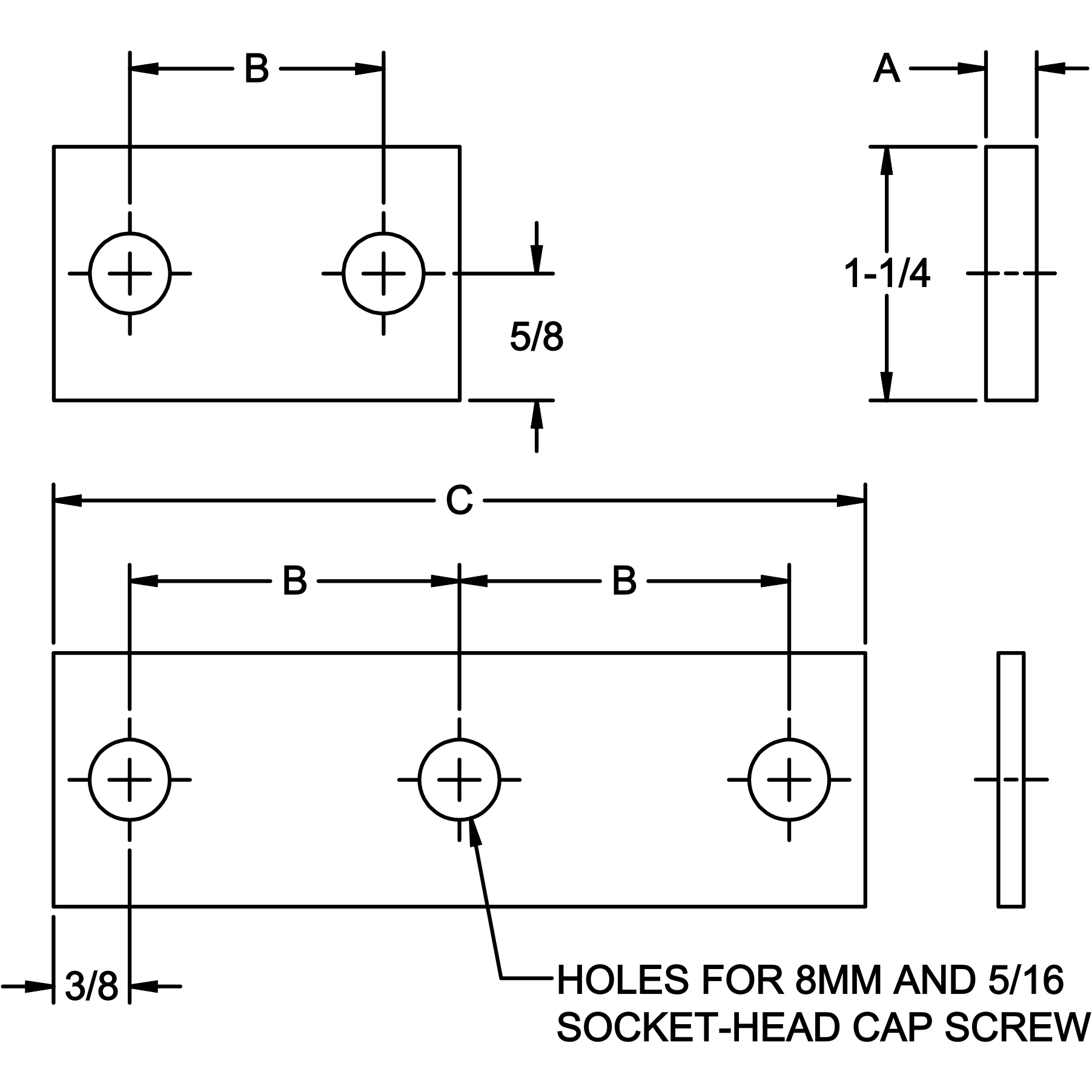

Peerless Rest Pad Shim

Part No.	A ±.002	B	C	NUMBER OF HOLES	FOR USE WITH
CL-2X1/8-SHIM	.125	1-1/4	2	2	CL-36332-PXRP CL-5492-PXRP
CL-2X1/4-SHIM	.250	1-1/4	2	2	CL-36332-PXRP CL-5492-PXRP
CL-4X1/8-SHIM	.125	1-5/8	4	3	CL-36334-PXRP CL-5493-PXRP
CL-4X1/4-SHIM	.250	1-5/8	4	3	CL-36334-PXRP CL-5493-PXRP
CL-6X1/8-SHIM	.125	2-5/8	6	3	CL-36336-PXRP CL-5494-PXRP
CL-6X1/4-SHIM	.250	2-5/8	6	3	CL-36336-PXRP CL-5494-PXRP

Check Price & Availability
