Delrin® Rest Button, Flat

Work Supports & Rest Buttons

Save to My Project

What is this?

Product Information

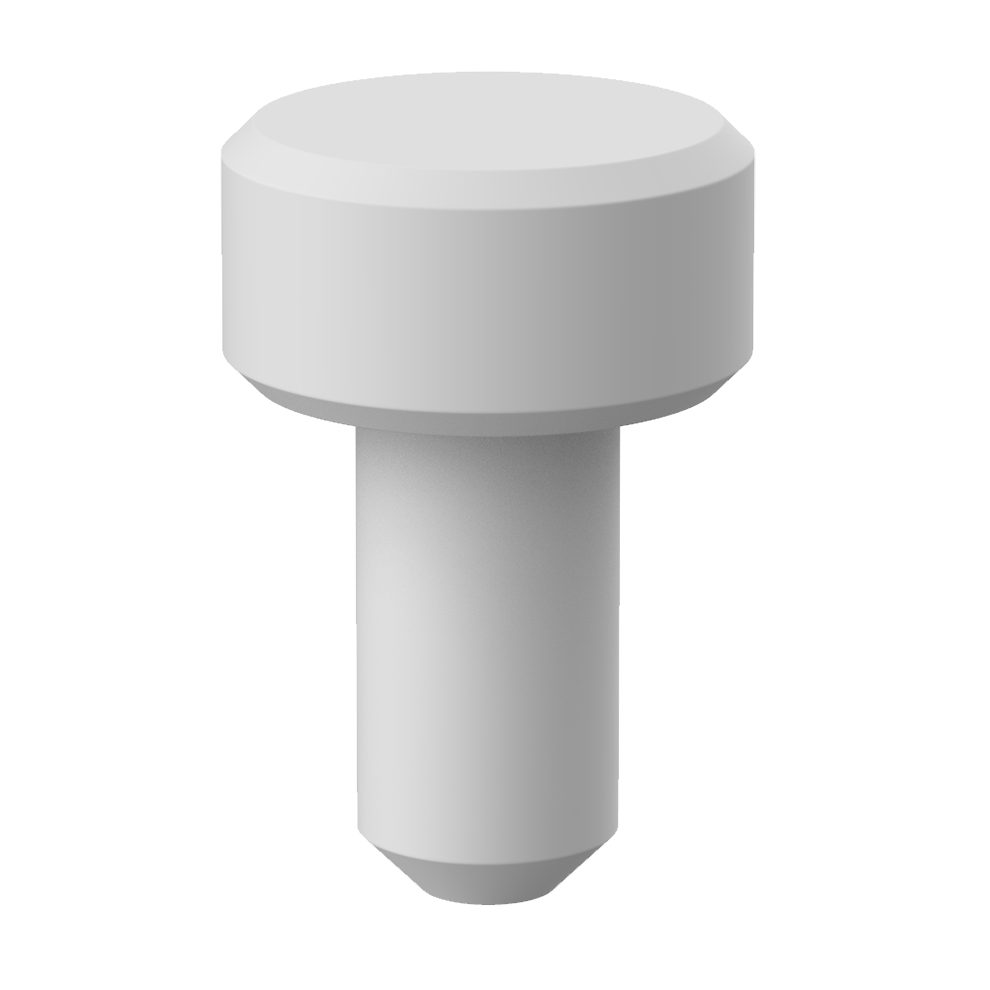

Delrin® Rest Button, Flat Part # CL-16-RB-N Carr Lane Mfg.®

New Item!

Delrin® Rest Buttons are similar to our standard Rest Buttons, and Delrin® prevents marring. Rest Buttons are extremely useful as supports, side locator pads, and jig feet. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

MATERIAL	HEAT TREAT	FINISH
White Delrin®	-	-

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Delrin® Rest Button, Flat

Inch

PART NUMBER	A DIA	B	C	D DIA
CL-1-RB-N	.2510	.50	.500	.50
CL-2-RB-N	.2510	.50	.250	.50
CL-3-RB-N	.2510	.50	.375	.50
CL-4-RB-N	.3760	.63	.500	.63
CL-5-RB-N	.3760	.63	.250	.63
CL-6-RB-N	.3760	.63	.375	.63
CL-7-RB-N	.3760	.63	.625	.63
CL-8-RB-N	.3760	.63	.750	.63
CL-9-RB-N	.5010	.63	.500	.88
CL-10-RB-N	.6260	.75	.500	1.00
CL-11-RB-N	.7515	.88	.625	1.25
CL-12-RB-N	.1885	.38	.250	.38
CL-13-RB-N	.1885	.38	.375	.38
CL-14-RB-N	.1885	.38	.500	.38
CL-15-RB-N	.5010	.63	.375	.88
CL-16-RB-N	.5010	.63	.625	.88
CL-17-RB-N	.6260	.75	.375	1.00
CL-18-RB-N	.6260	.75	.750	1.00
CL-19-RB-N	.7515	.88	.500	1.25

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to Delrin® Rest Button, Flat

Jig Rest Buttons

Rest Buttons

Screw Rest Buttons
