Carbide-Tipped Rest Buttons

Work Supports & Rest Buttons

Save to My Project

What is this?

Product Information

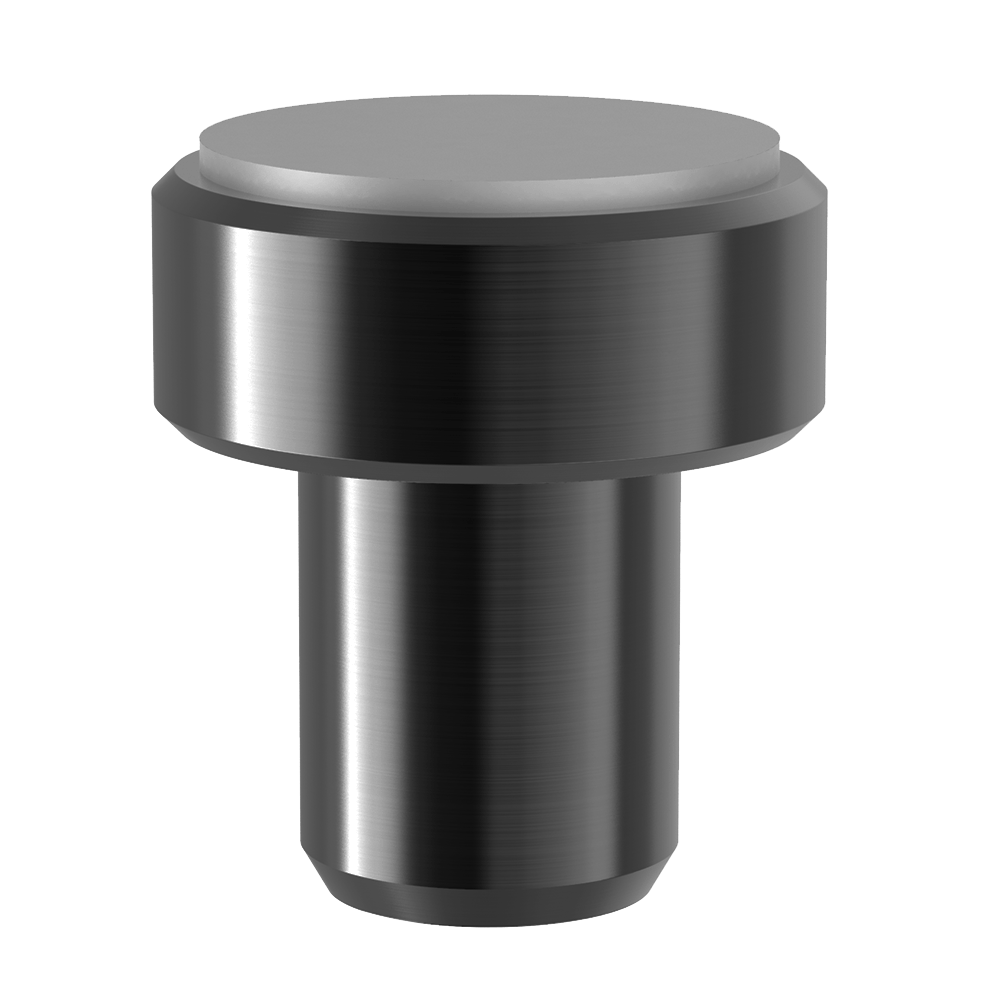

Carbide-Tipped Rest Buttons Part # CL-12-CTRB Carr Lane Mfg.®

New Item!

Carbide-Tipped Rest Buttons are available in many of the same diameters and heights as our standard Rest Buttons, so they can be used as direct replacements where additional wear resistance is desired. These rest buttons feature a thick embedded carbide pad, finish machined to a precision height. Like standard Rest Buttons, these locators have a close-tolerance shank for installation in a reamed hole. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	1144 Steel	Heat Treated Rc 40-45	Black Oxide	✔	✔
Pad	Carbide	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Carbide-Tipped Rest Buttons

Inch

PART NO.	A DIA NOMINAL	A DIA ACTUAL	B	C NOMINAL	C ACTUAL	D DIA	E DIA
CL-12-CTRB	3/16	.1885	3/8	1/4	.2500	1/4	3/8
CL-14-CTRB	3/16	.1885	3/8	1/2	.5000	1/4	3/8
CL-3-CTRB	1/4	.2510	1/2	3/8	.3750	3/8	1/2
CL-5-CTRB	3/8	.3760	5/8	1/4	.2500	1/2	5/8
CL-6-CTRB	3/8	.3760	5/8	3/8	.3750	1/2	5/8
CL-7-CTRB	3/8	.3760	5/8	5/8	.6250	1/2	5/8
CL-15-CTRB	1/2	.5010	5/8	3/8	.3750	3/4	7/8
CL-9-CTRB	1/2	.5010	5/8	1/2	.5000	3/4	7/8
CL-19-CTRB	3/4	.7515	7/8	1/2	.5000	1	1-1/4
