Square Grippers (Solid Carbide, Serrated)

Work Supports & Rest Buttons

Save to My Project

What is this?

Product Information

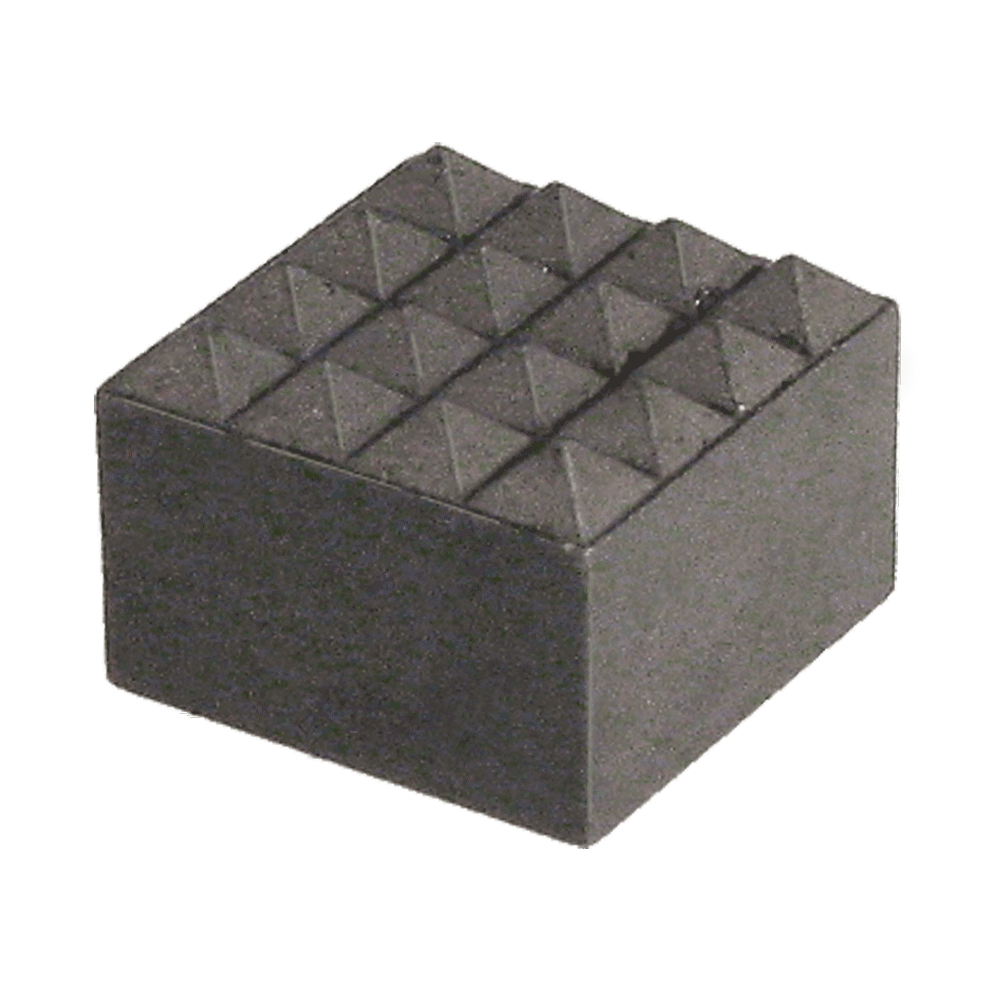

Square Grippers (Solid Carbide, Serrated) Part # CL-8-SGC Carr Lane Mfg.®

Square Grippers are similar to Round Grippers, but their shape is useful when positive resistance to rotation is required (because they can be mounted against a step to prevent rotation). These serrated grippers are hard, replaceable inserts that provide additional holding force and/or wear resistance when installed in a fixture. They are designed to slightly penetrate the workpiece to significantly increase gripping force, rather than relying on static friction alone. The solid carbide grippers shown here are the most durable. Available in one size, 1/2" square. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Square Grippers can be mounted against a step for positive resistance to rotation.

Installation

These tapped Square Grippers can be fastened from behind with a socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. When grippers are installed in a hole, they should project 50 to 100% of serration height for maximum effectiveness (serration height is .062" on grippers with .125" x 90° serrations).

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Solid Carbide with steel thread insert	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Square Grippers (Solid Carbide, Serrated)

Inch

QUANTITY	PART NO.	A	B	C THREAD	D	SERRATIONS	SERRATION DIMENSIONS
	CL-8-SGC	1/2	3/8	#10-32	3/16	FINE	.125x90°
