Round Grippers (Delrin®, Flat)

Work Supports & Rest Buttons

Save to My Project

What is this?

Product Information

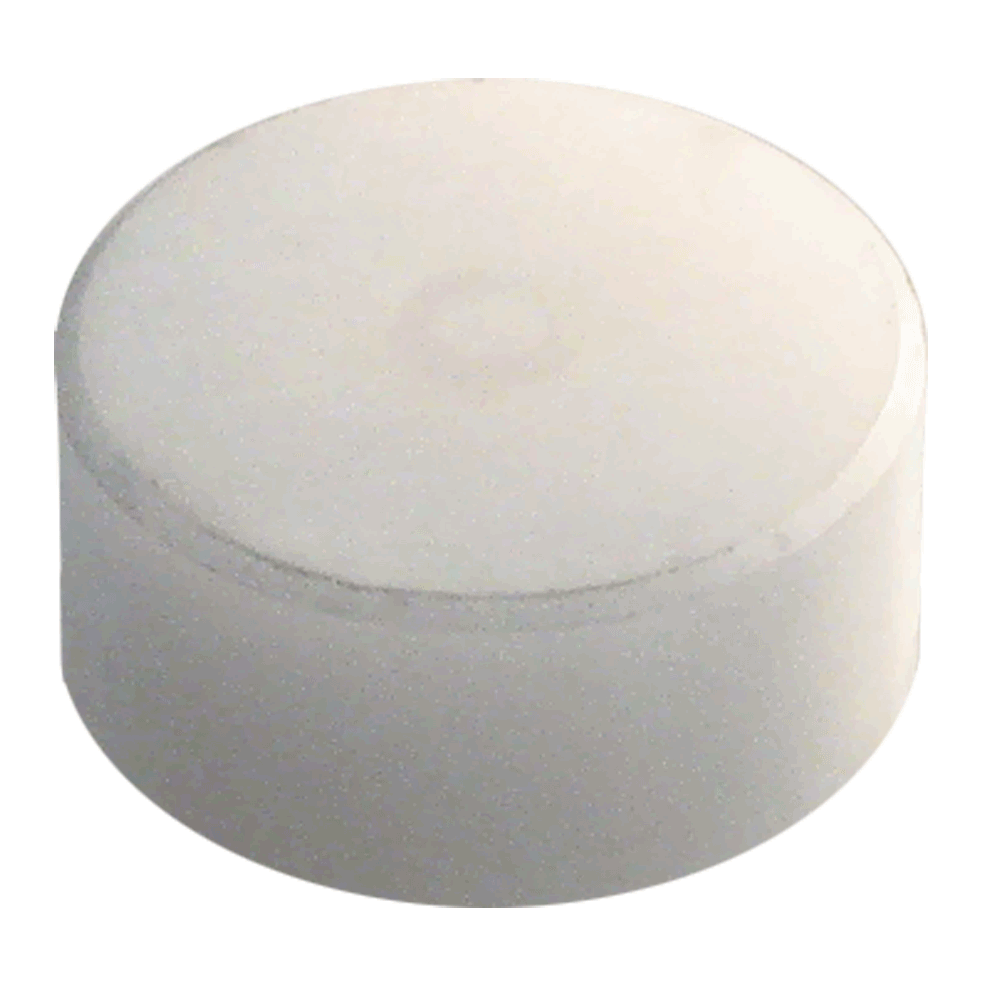

Round Grippers (Delrin®, Flat) Part # CL-12-RGFN Carr Lane Mfg.®

Flat Round Grippers are hard, replaceable inserts used to provide additional wear resistance when installed in a fixture. The Delrin® grippers shown here avoid marring finished workpieces. Available in diameters from 3/8 to 1" (10 to 25mm in metric). Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Installation

These tapped Round Grippers can be fastened from behind with a socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
White Delrin® 500	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Round Grippers (Delrin®, Flat)

Inch

PART NO.	A DIA	B	C THREAD	D
CL-6-RGFN	3/8	3/8	#10-32	3/16
CL-8-RGFN	1/2	3/8	#10-32	3/16
CL-10-RGFN	5/8	3/8	1/4-28	3/16
CL-12-RGFN	3/4	3/8	1/4-28	3/16
CL-16-RGFN	1	3/8	1/4-28	3/16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

PART NO.	A DIA (mm)	B (mm)	C THREAD	THREAD PITCH (mm)	D (mm)
CLM-10-RGFN	10	10	M5	.8	5
CLM-12-RGFN	12	10	M5	.8	5
CLM-16-RGFN	16	10	M6	1	5
CLM-20-RGFN	20	10	M6	1	5
CLM-25-RGFN	25	10	M6	1	5
