Round Grippers (Carbide Tipped, Flat)

Work Supports & Rest Buttons

Save to My Project

What is this?

Product Information

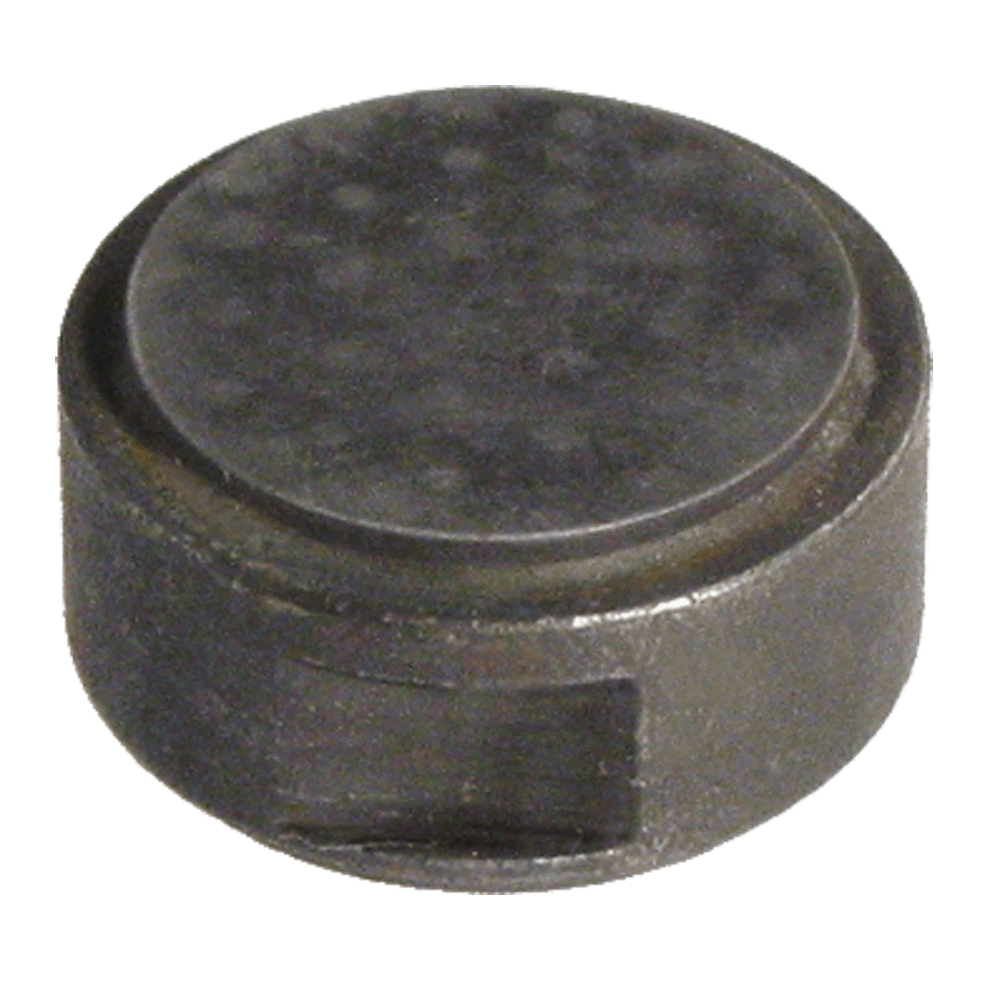

Round Grippers (Carbide Tipped, Flat) Part # CL-6-RGFT Carr Lane Mfg.®

Flat Round Grippers are hard, replaceable inserts used to provide additional wear resistance when installed in a fixture. The carbide-tipped grippers shown here are the most durable. Available in diameters from 3/8 to 1". Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Installation

These tapped Round Grippers can be fastened from behind with a socket-head cap screw, or clamped with a setscrew on the O.D. locking flat (hardened steel and Delrin® grippers do not have a locking flat). Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Alloy Steel	Heat Treated, with brazed carbide insert	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Round Grippers (Carbide Tipped, Flat)

Inch

PART NO.	A DIA	B	C THREAD	D	E	F	G DIA
CL-6-RGFT	3/8	3/8	#10-32	3/16	3/16	11/64	5/16
CL-8-RGFT	1/2	3/8	#10-32	3/16	3/16	11/64	3/8
CL-10-RGFT	5/8	3/8	1/4-28	3/16	3/16	11/64	1/2
CL-12-RGFT	3/4	3/8	1/4-28	3/16	3/16	11/64	5/8
CL-16-RGFT	1	3/8	1/4-28	3/16	3/16	11/64	3/4
