Gripper Swivel Pads – Mini (Hardened Steel, Flat)

Work Supports & Rest Buttons

Save to My Project

What is this?

Product Information

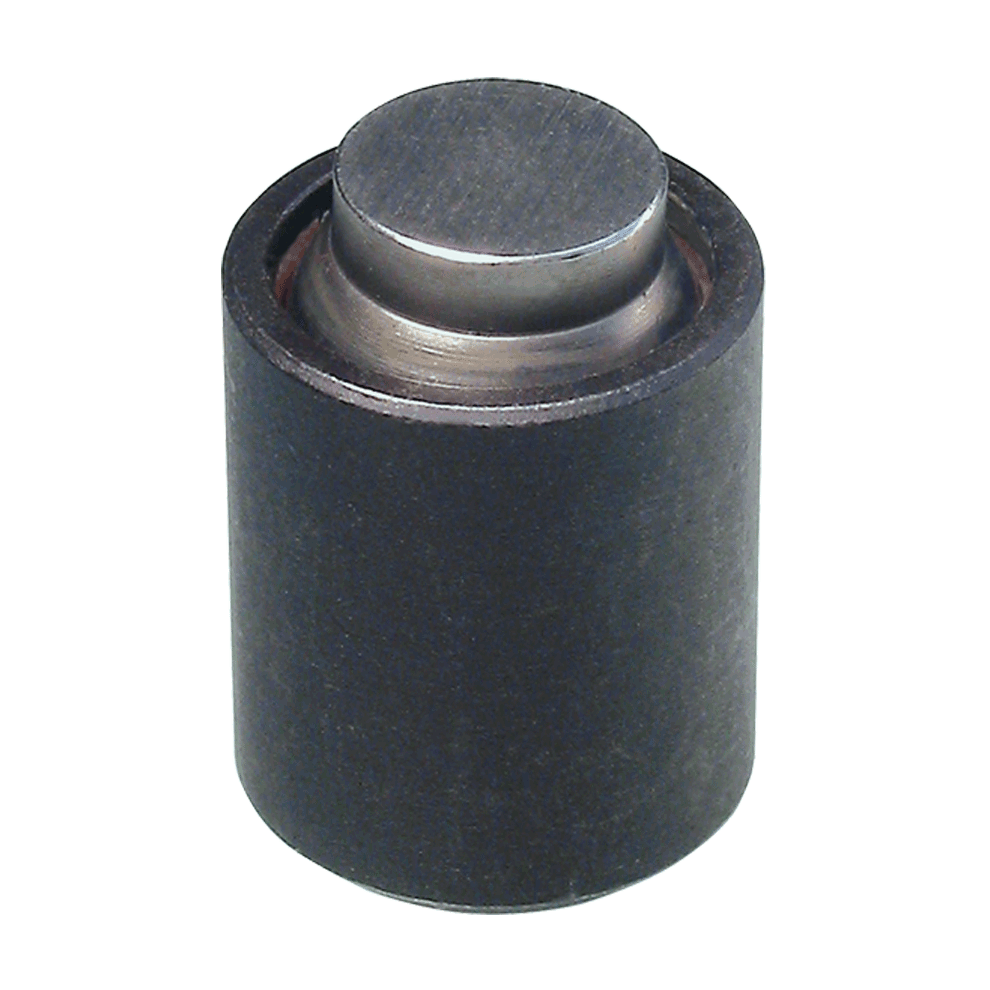

Gripper Swivel Pads – Mini (Hardened Steel, Flat)

Mini-size rest pad with a built-in swivel ball held by a retaining ring. The flat gripper face is machined directly on the swivel ball. A positive stop prevents the ball from swiveling too far. Gripper Swivel Pads can be surface mounted or installed in a counterbored hole. Available in body diameters from 3/8 to 5/8" (10 to 17mm in metric). For larger sizes, see Gripper Swivel Pads. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	Steel	Carburized-Hardened	Black Oxide	✔	✔
Flat steel swivel ball	Steel, hardened	-	Black Oxide	✔	✔
O-ring	Ruber	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.
