Gripper Swivel Pads – Mini (Delrin®, Flat)

Work Supports & Rest Buttons

Save to My Project

What is this?

Product Information

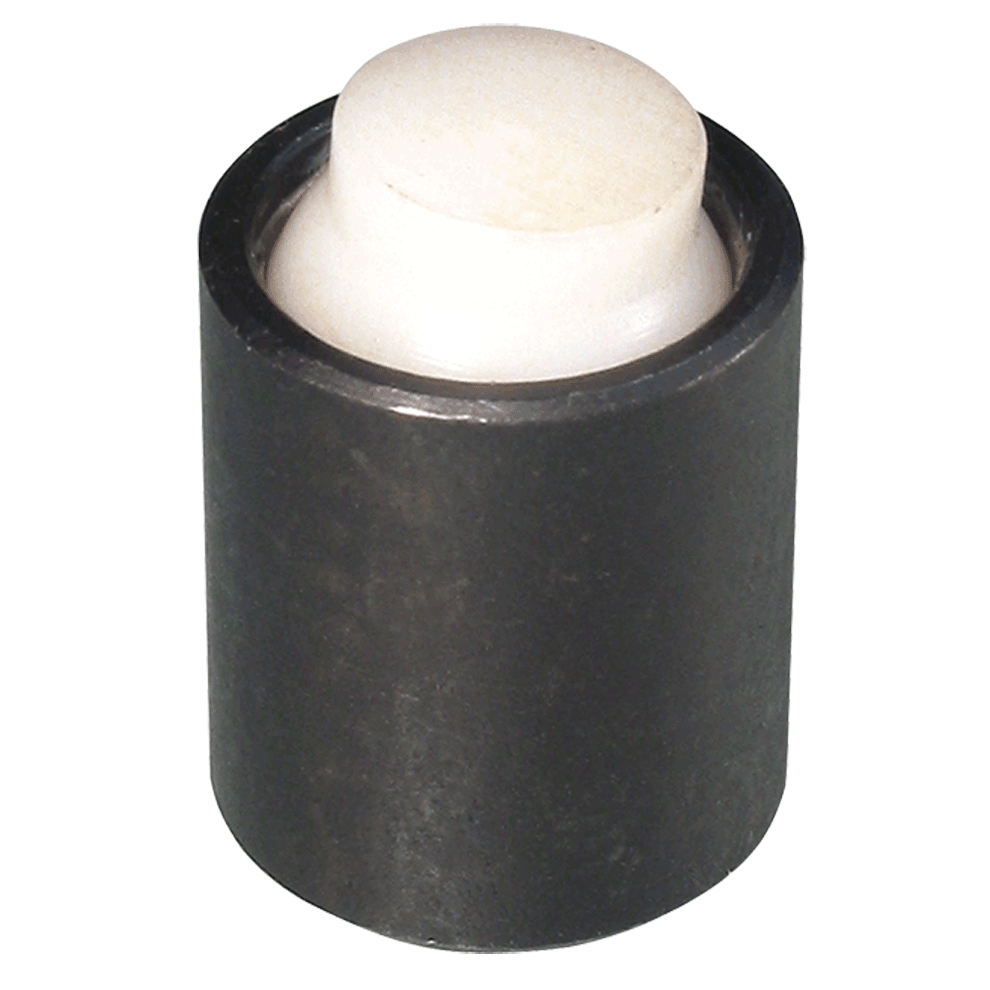

Gripper Swivel Pads – Mini (Delrin®, Flat) Part # CL-3-GSPN Carr Lane Mfg.®

Mini-size rest pad with a built-in swivel ball held by a retaining ring. The flat gripper face is machined directly on the swivel ball. A positive stop prevents the ball from swiveling too far. Gripper Swivel Pads can be surface mounted or installed in a counterbored hole. Available in body diameters from 3/8 to 5/8" (10 to 17mm in metric). For larger sizes, see Gripper Swivel Pads. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	Steel	Carburized-Hardened	Black Oxide	✔	✔
Flat Delrin® swivel ball	White Delrin® 500	-	Black Oxide	✔	✔
O-ring	Ruber	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Gripper Swivel Pads – Mini (Delrin®, Flat)

Inch

PART NO.	A DIA	B DIA	C	D THREAD	E	F BALL DIA	G	H
CL-3-GSPN	5/32	3/8	3/8	#4-40	1/4	3/16	14°	.062
CL-4-GSPN	1/4	7/16	7/16	#8-32	5/32	9/32	14°	.062
CL-5-GSPN	5/16	1/2	9/16	#10-32	5/32	3/8	14°	.062
CL-6-GSPN	3/8	5/8	15/16	1/4-28	1/4	1/2	17°	.125

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

PART NO.	A DIA (mm)	B DIA (mm)	C (mm)	D THREAD	THREAD PITCH (mm)	E (mm)	F BALL DIA (mm)	G	H (mm)
CLM-6-GSPN	6	10	12	M4	.7	3.5	7	14°	1.5
CLM-8-GSPN	8.5	13	16	M5	.8	6.5	10	12°	1.5
CLM-10-GSPN	10	17	19.5	M6	1	7	13	21°	1.5
