Wide Opening – Automatically Adjusting

Toggle Clamps

Save to My Project

What is this?

Product Information

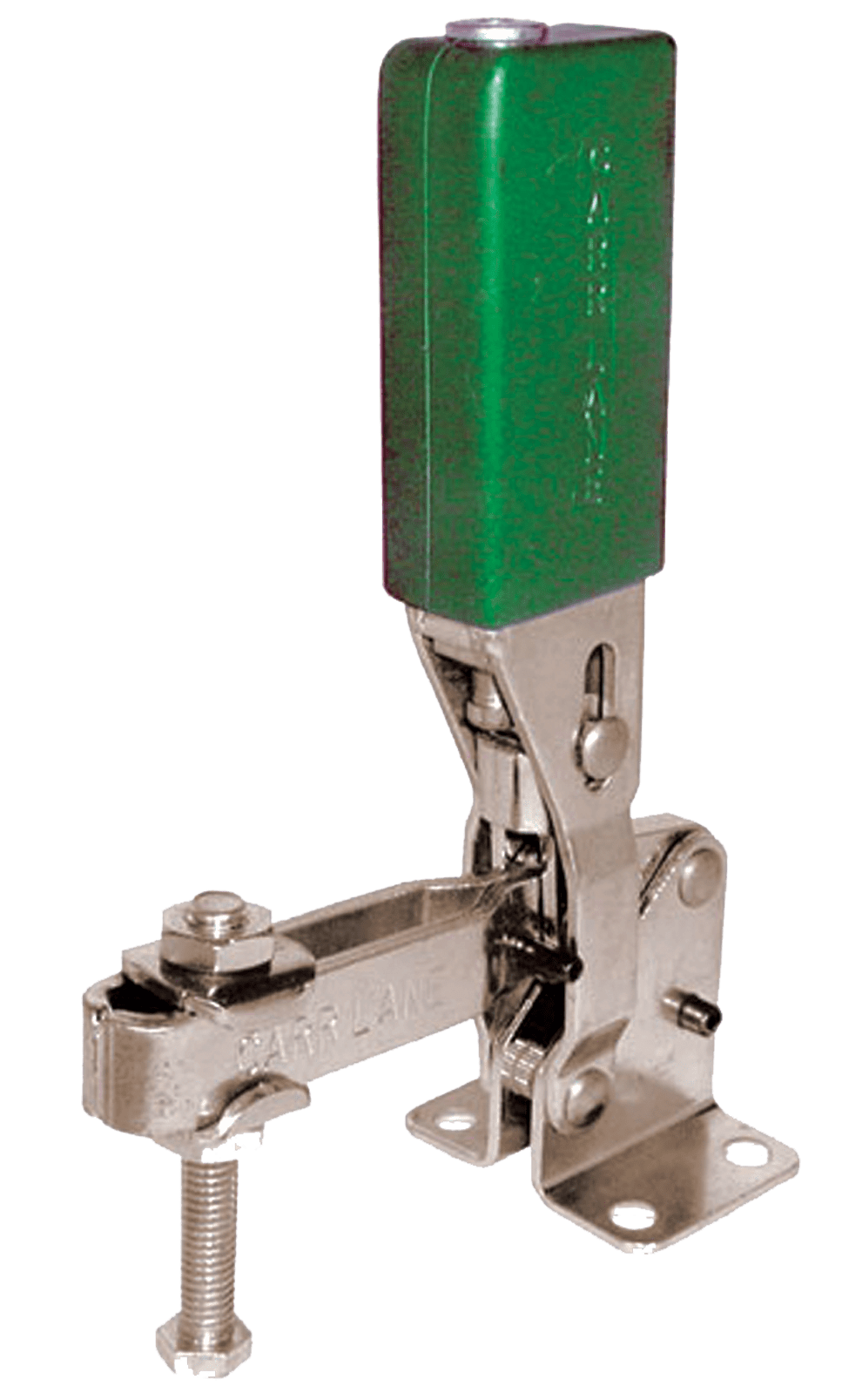

CL-650-ATC

Open Arm, Flanged Base

Automatically adjusts for different workpiece thicknesses. Clamps with the same, repeatable force anywhere within its 1-1/4" automatic-adjustment range. Ideal for welding fixtures, machining fixtures for castings, fixtures holding several part sizes within the same family, or any other application where part size can vary. Fits in the same space, and provides the same clamping force as the same-size standard toggle clamp. Arm opens 106° while handle moves 58°.Open arm provides adjustable spindle location. 750 lbs holding capacity. Patent number 4,407,493.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Videos

Toggle Clamps by Carr Lane Manufacturing

Toggle clamps are versatile workholding products, providing efficiency, versatility, improved ergonomics and safety. Carr Lane Mfg.’s line of toggle clamps is cost-effective, reliable and are easy for any user to pick up and use. Within the Carr Lane Mfg. online catalog, you’ll find an exceptional collection of heavy duty toggle clamps including horizontal-handle toggle clamps, vertical handle toggle clamps, plunger-style toggle clamps, latch action toggle clamps, toggle pliers, air-powered toggle clamps and a complete line of toggle clamp accessories.

Clamping Action

Clamped Position
Low Limit

Clamped Position
High Limit

Open Position

Setup & Operation

Easy to use. To set up initially, first adjust the contact spindle so that the arm is in the middle of its adjustment range at average workpiece height. Next, set desired clamping force once, by turning the adjustment screw with a screwdriver. Approximately 250 lbs clamping force is the most that can be applied by hand, at the farthest spindle location. After that, operate just like a standard toggle clamp – the patented adjusting mechanism does the rest.

Accessories

Supplied with 3/8-16 radius spindle CL-38314-RS and (2) CL-3811-TW flanged washers.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	1008,1010, and/or 1018 Steel	-	Zinc plated clear chromate	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
Handle	Vinyl	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.
