Vertical-Handle Cam Clamps

Toggle Clamps

Save to My Project

What is this?

Product Information

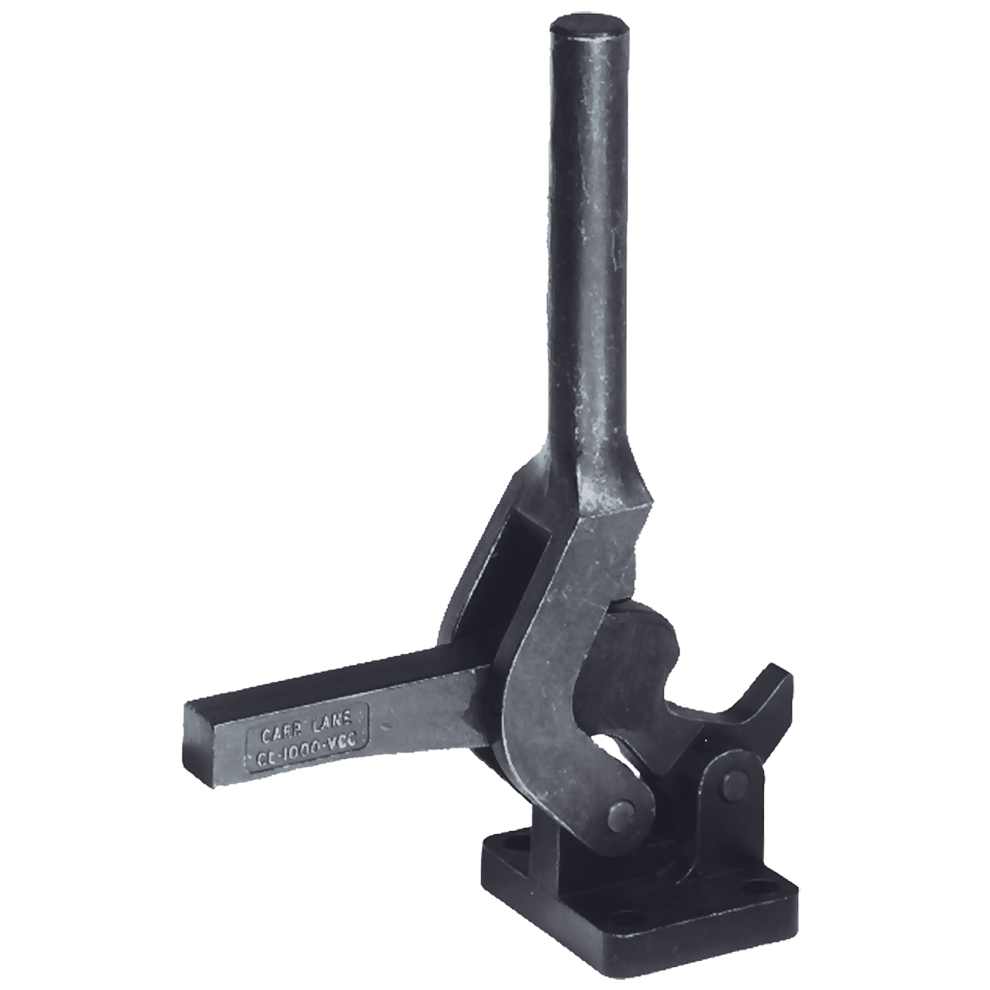

CL-1000-VCC

Solid Arm, Flanged Base

Wide-opening clamp that locks by cam action rather than toggle action. Smooth spiral cam locks securely anywhere within a 3/16" clamping range. Rugged cast steel components. Solid arm can be tapped to accept a spindle, or otherwise modified. 1000 lbs holding capacity.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Clamping Action

Clamped Position – Low Limit

Clamped Position – High Limit

Open Position

Accessories

Handle accepts optional vinyl grip CL-3-HVTC-G (see Related Products below).

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Cast Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Vertical-Handle Cam Clamps

QUANTITY	PART NO.	DESCRIPTION	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
	CL-1000-VCC	Solid Arm, Flanged Base	1000	2.5

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to Vertical-Handle Cam Clamps

Vinyl Grips for Heavy-Duty Toggle Clamps
