CL-500-VTC Series (750 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

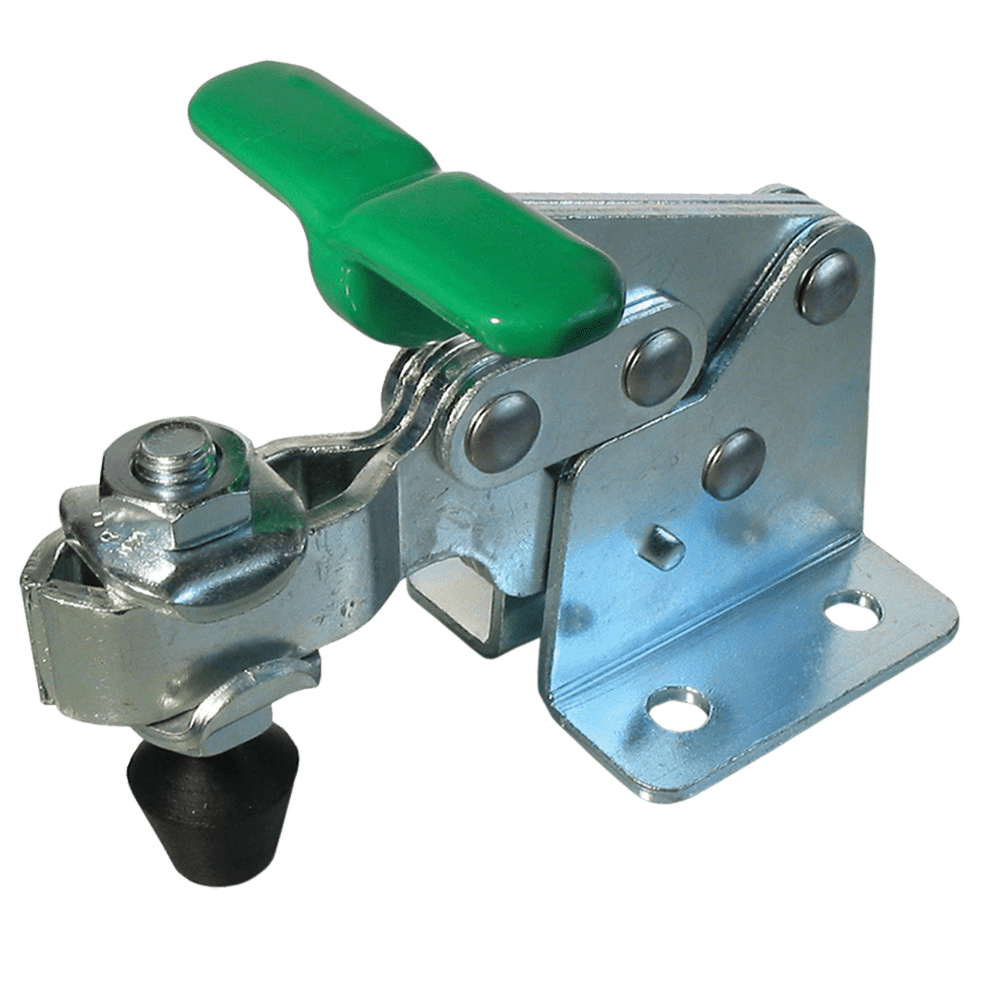

CL-500-VTC

Open Arm, Flanged Base, T Handle

Large hold-down clamp with a unique finger-grip T handle. Extremely compact design. Arm opens 92° while handle moves 175°. Open arm provides adjustable spindle location. Available in steel and stainless steel. Optionally available with our safety-lock feature (see Related Products below). 750 lbs holding capacity.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Models Available

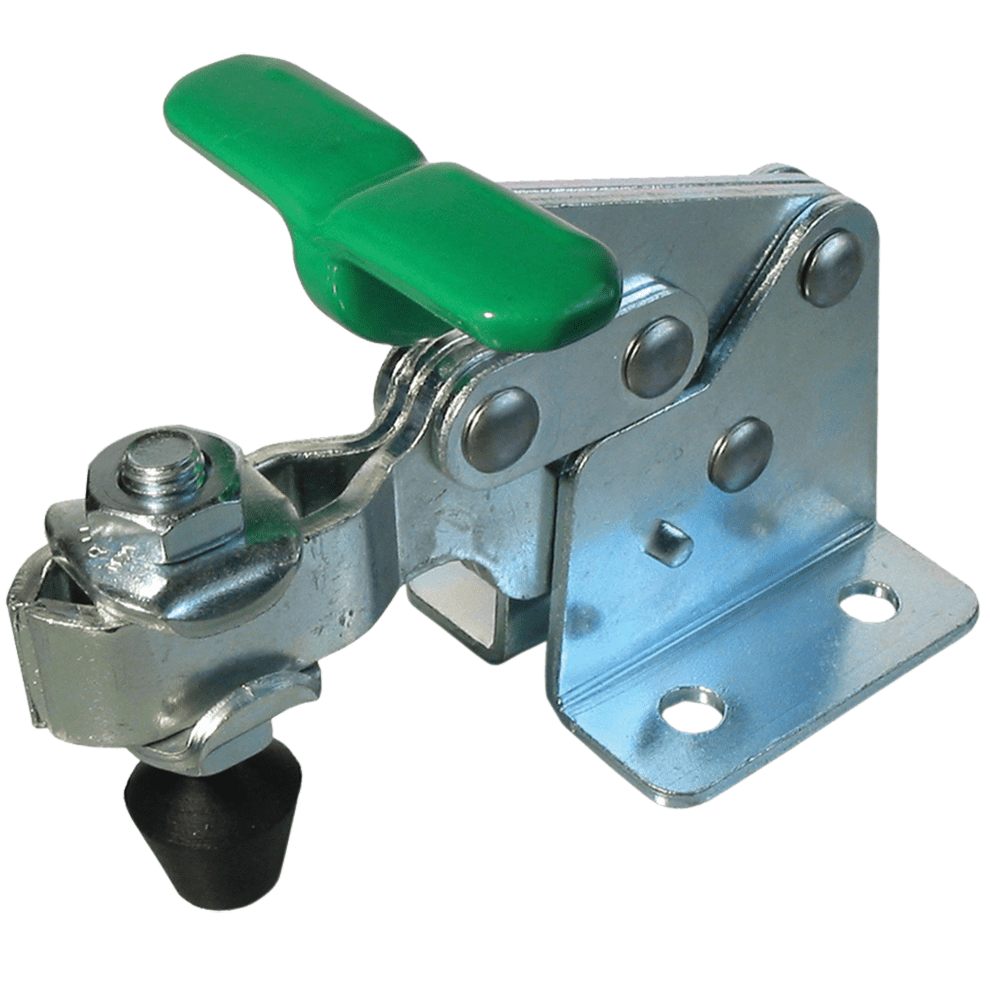

CL-500-VTC

Open Arm, Flanged Base, T Handle
Also CL-500-VTC-S in stainless steel

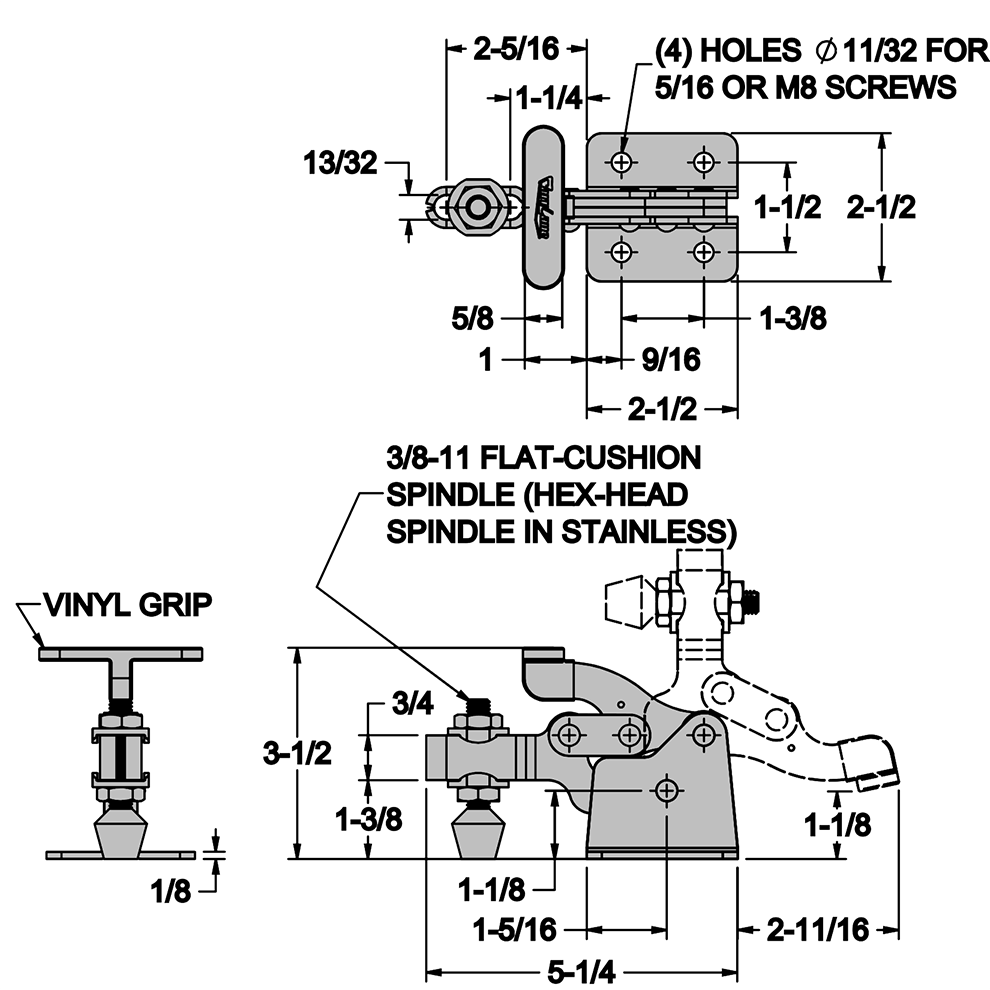

Clamping Action

Clamped Position

Open Position

Accessories

Steel clamps are supplied with 3/8-16 short flat-cushion spindle CL-38212-FC and (2) CL-3811-TW flanged washers. Stainless steel clamps are supplied with 3/8-16 stainless short hex-head spindle CL-38212-SA-S and (2) CL-3811-TW-S stainless flanged washers. For alternative clamping spindles, see Related Products below.

Material

STEEL
ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	1008, 1010, and/or 1018 Steel	-	Zinc plated clear chromate	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
Handle	Vinyl	-	-	✔	✔

STAINLESS STEEL
ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	300-Series Stainless	-	-	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
Handle	Vinyl	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-500-VTC Series (750 lbs)

Stainless Steel

QUANTITY	PART NO.	DESCRIPTION	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
	CL-500-VTC-S	Open Arm, Flanged Base, T Handle	750	1.3

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to CL-500-VTC Series (750 lbs)
