CL-50-HDC Series (2500 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

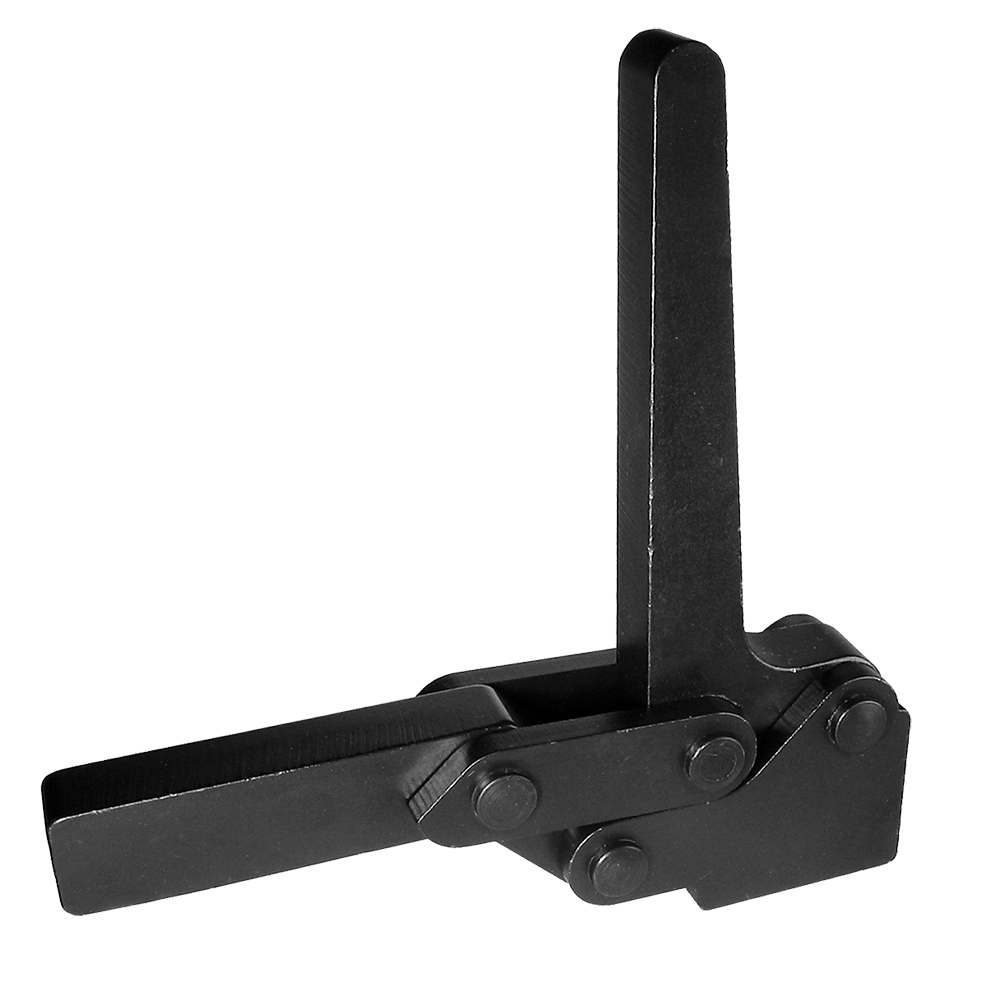

CL-50-HDC-121

Solid Arm, Straight Base

Heavy-duty toggle clamps with a machined steel handle and clamping arm. Simple, easy-opening clamps with extra arm reach. These low-arm clamps extend farther over the workpiece than any other toggle clamp their size. Arm opens 83° while handle moves 83° – ideal when wide opening is not desirable. Solid arm can be tapped to accept a spindle, or otherwise modified. 2500 lbs holding capacity.

View in Catalog Page
Contact Customer Service
Contact Customer Service

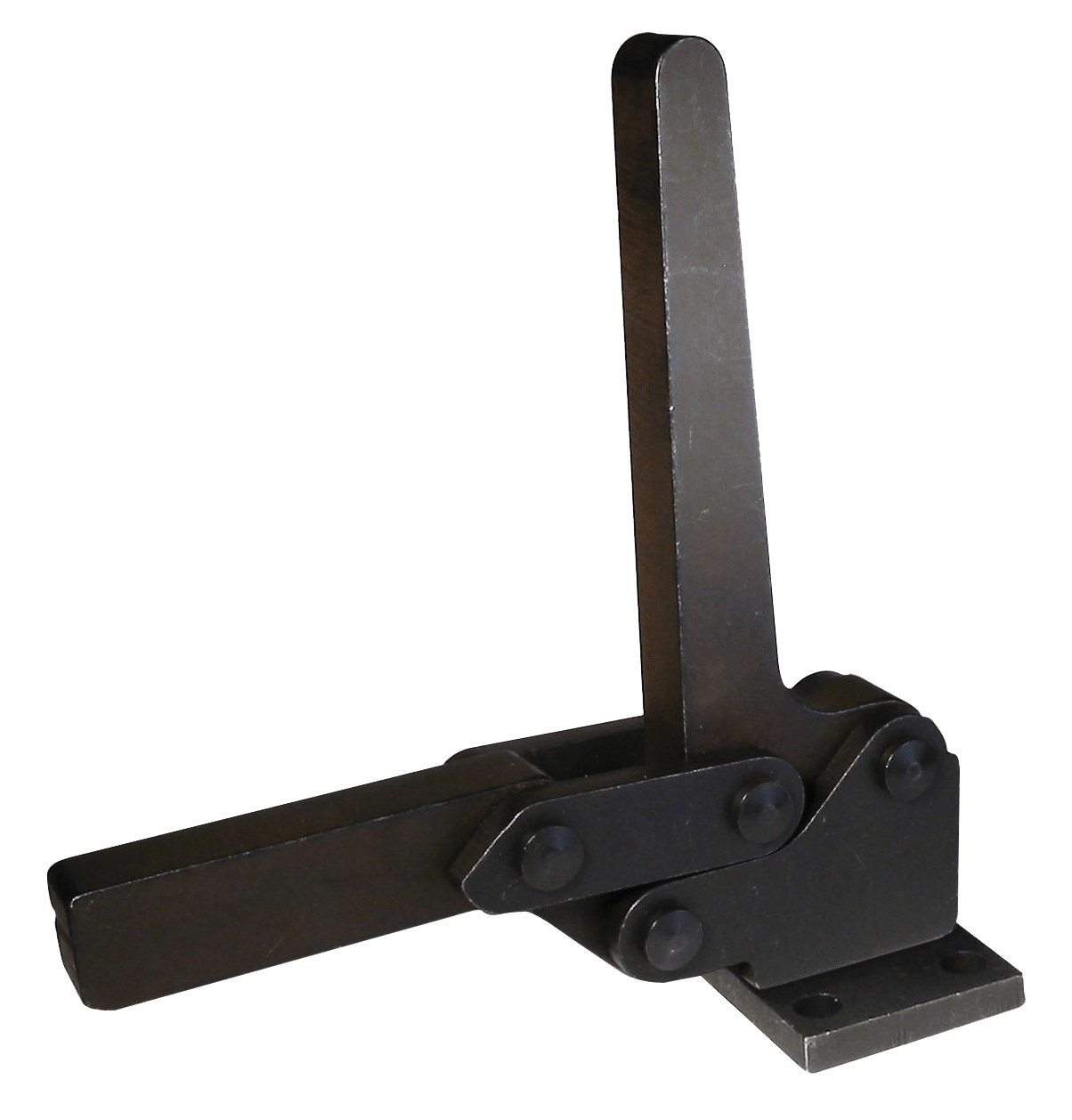

Optional Flanged Base

CL-50-HDC-121S
Solid Arm, Flanged Base
(Add "S" to part number)

Clamping Action

Clamped Position

Open Position

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Mild Steel	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-50-HDC Series (2500 lbs)

QUANTITY	PART NO.	DESCRIPTION	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
	CL-50-HDC-121	Solid Arm, Straight Base	2500	2.5
	CL-50-HDC-121S	Solid Arm, Attached Flange Base	2500	2.5
