CL-45-HDC Series (1500 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

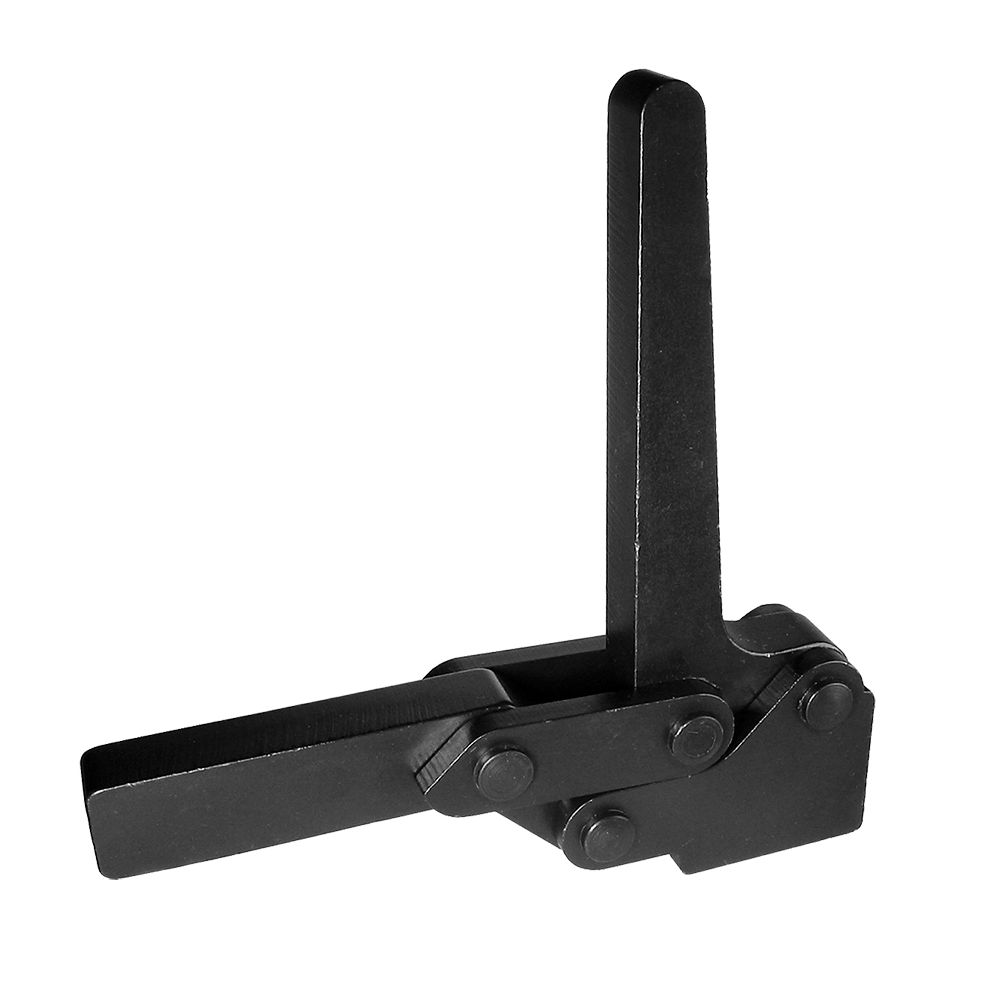

CL-45-HDC-121

Solid Arm, Straight Base

Heavy-duty toggle clamps with a machined steel handle and clamping arm. simple, easy-opening clamps with extra arm reach. These low-arm clamps extend farther over the workpiece than any other toggle clamp their size. Arm opens 83° while handle moves 83° – ideal when wide opening is not desirable. Solid arm can be tapped to accept a spindle, or otherwise modified. 1500 lbs holding capacity.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Optional Flanged Base

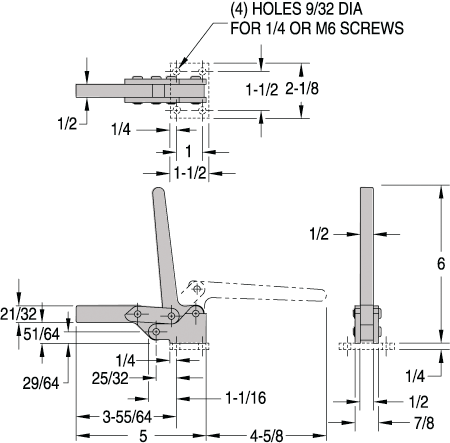

Diagram showcasing the application of Cl 45 Hdc Series 1500 Lbs

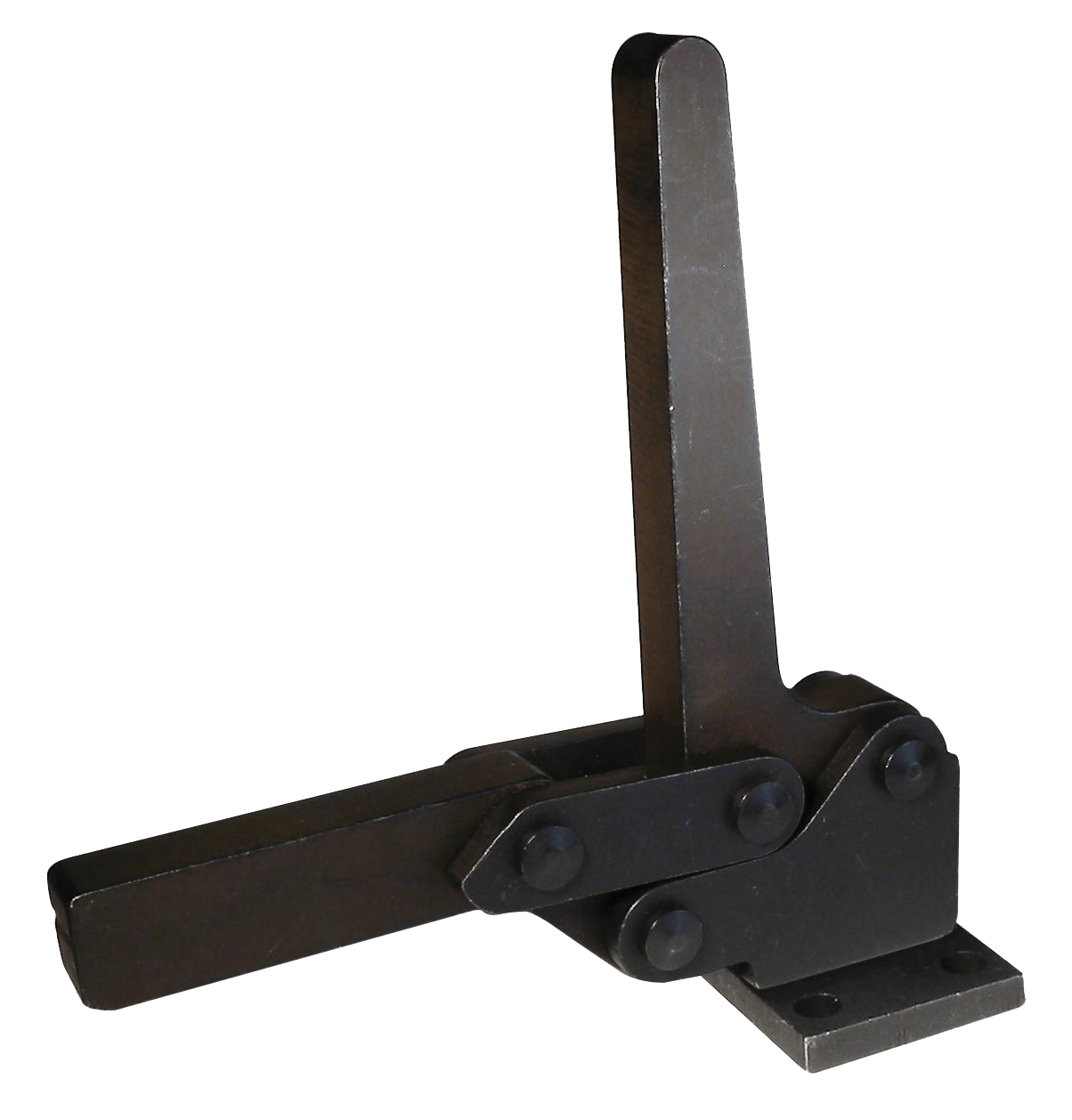

CL-45-HDC-121S
Solid Arm, Flanged Base
(Add "S" to part number)

Clamping Action

Clamped Position

Open Position

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Mild Steel	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-45-HDC Series (1500 lbs)

QUANTITY	PART NO.	DESCRIPTION	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
	CL-45-HDC-121	Solid Arm, Straight Base	1500	2.0
	CL-45-HDC-121S	Solid Arm, Attached Flange Base	1500	2.0

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
