CL-21-TC (100 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

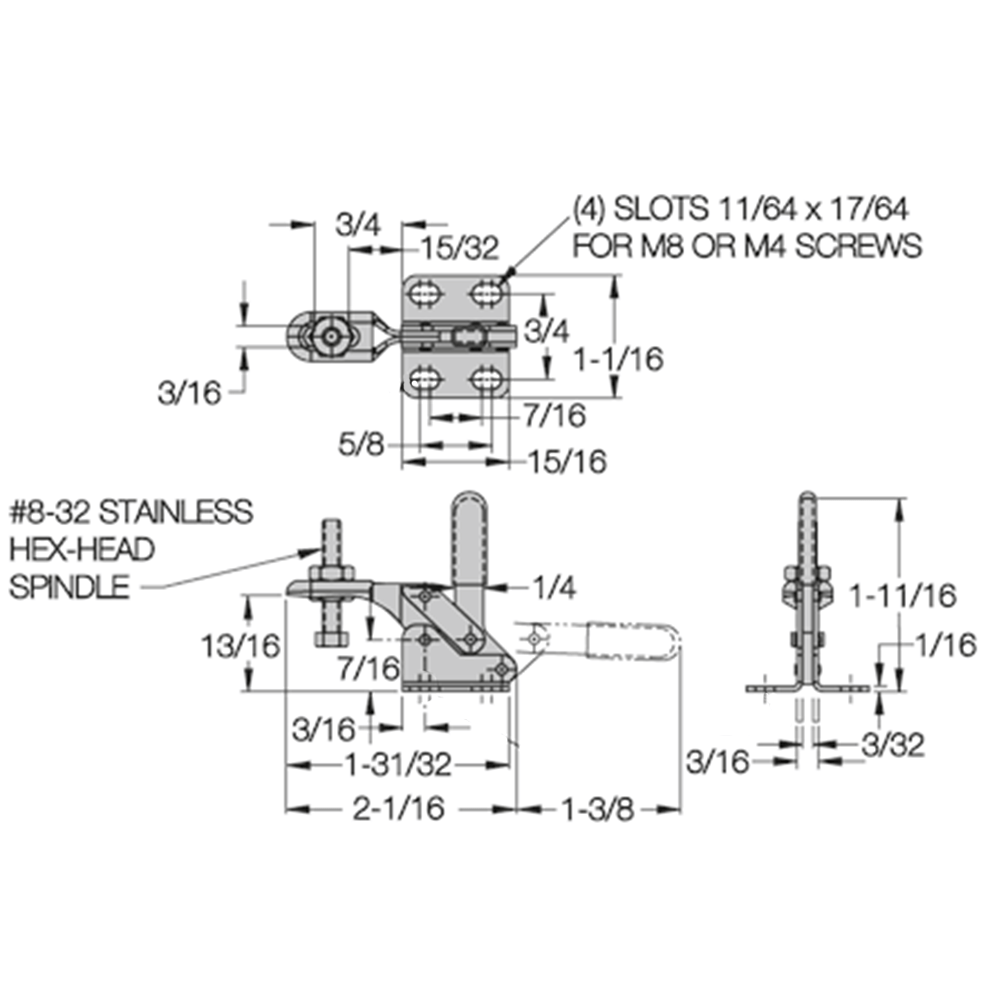

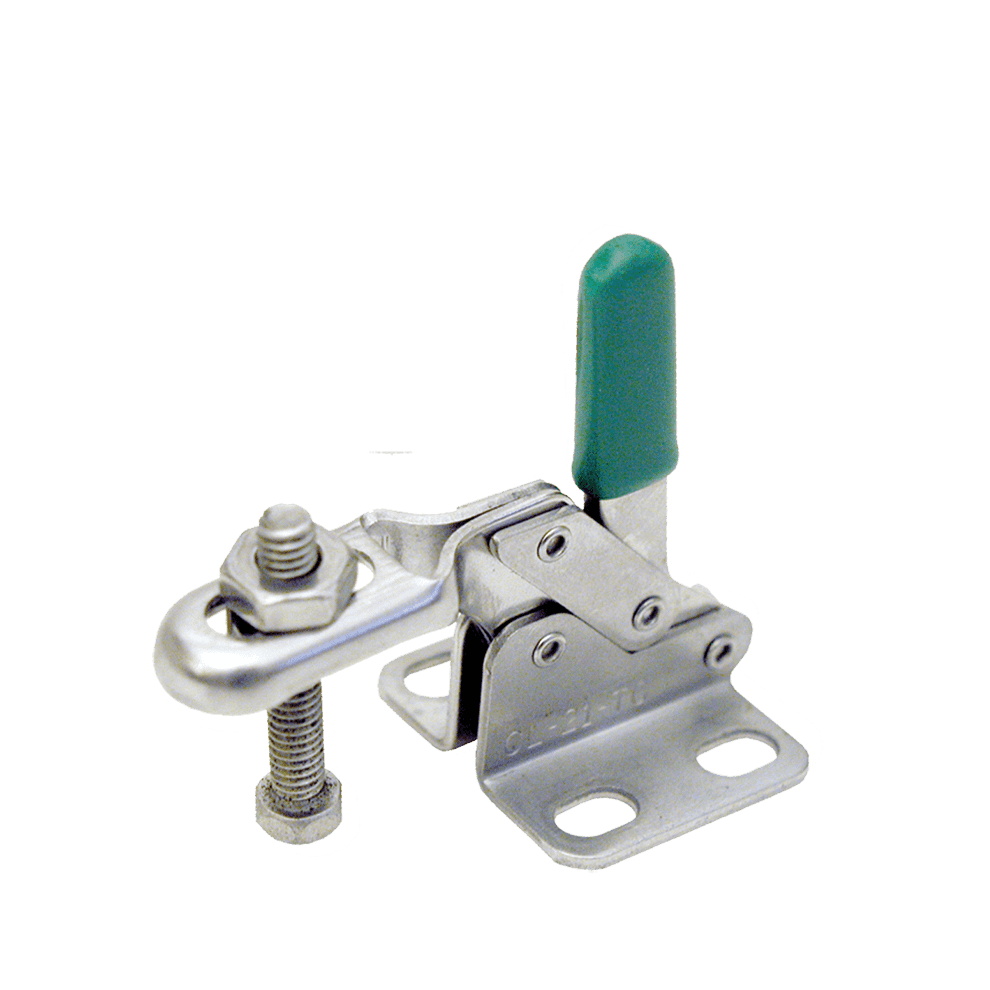

CL-21-TC

Open Arm, Flanged Base

Miniature stainless steel clamps, perfect for electronics fixturing and other light-duty applications. Simple, easy-opening toggle clamps with extra arm height. Arm opens 83° while handle moves 83° – ideal when wide opening is not desirable. Open arm provides adjustable spindle location. 100 lbs holding capacity.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Clamping Action

Clamped Position

Open Position

Accessories

Supplied with #8-32 hex-head spindle CL-832203-SA-S. For alternative clamping spindles, see Related Products below.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	300-Series Stainless	-	-	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
Handle	Vinyl	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-21-TC (100 lbs)

Stainless Steel

QUANTITY	PART NO.	DESCRIPTION	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
	CL-21-TC	Open Arm, Flanged Base	100	.1

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to CL-21-TC (100 lbs)
