CL-201-TC Series (625 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

CL-201-TC

Open Arm, Flanged Base

Simple, easy-opening toggle clamps with extra arm height. Arm opens 83° while handle moves 83° – ideal when wide opening is not desirable. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. Open-arm clamps are optionally available with a straight base. 625 lbs holding capacity.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Models Available

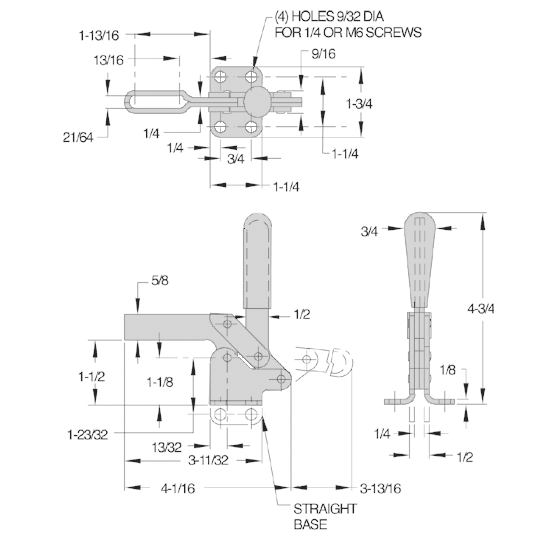

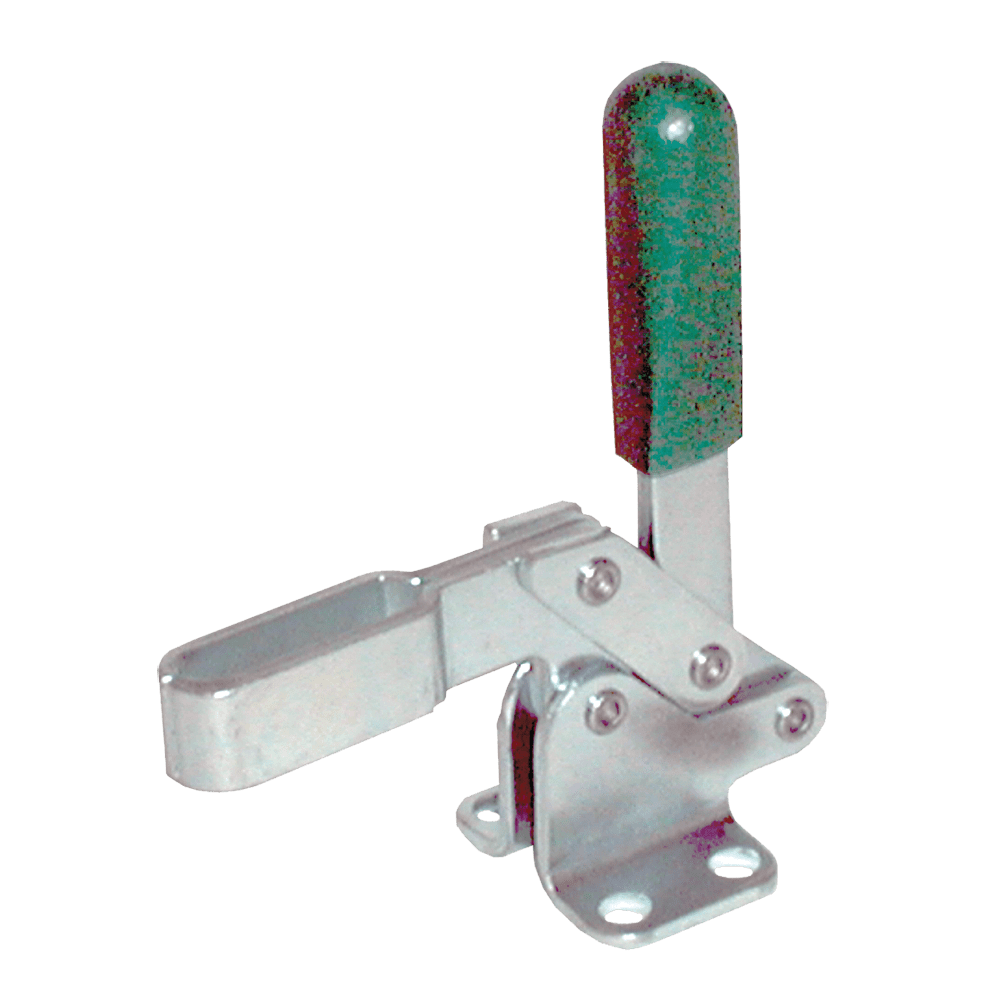

CL-201-TC

Open Arm, Flanged Base

CL-202-TC
Open Arm, Straight Base

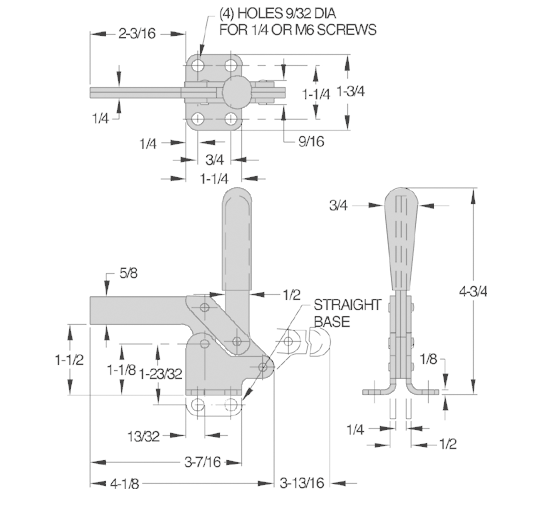

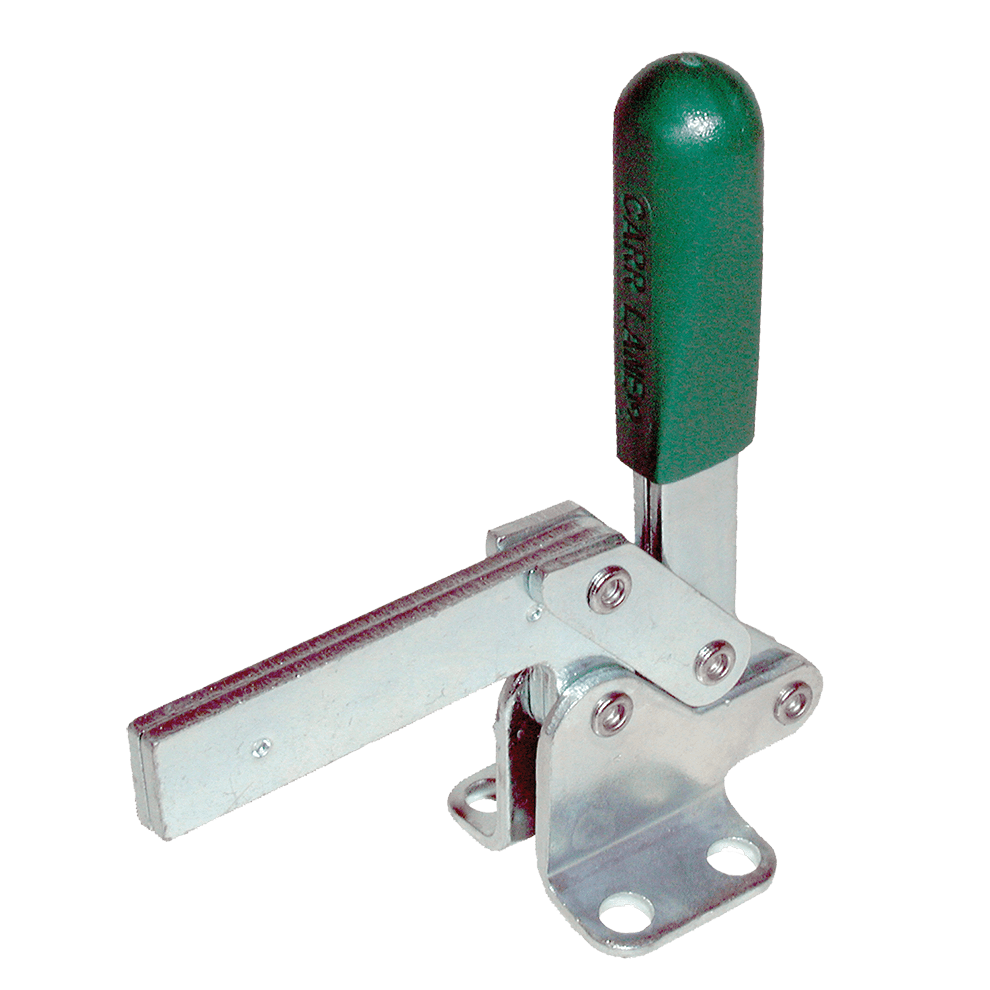

CL-203-TC
Solid Arm, Flanged Base

Clamping Action

Clamped Position

Open Position

Accessories

Open-arm models accept any 5/16-18 or M8 spindle and (2) CL-51610-TW flanged washers. Solid-arm models accept any 5/16-18 spindle and CL-51658-S weld-on bolt retainer. Order all accessories separately (see Related Products below).

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	1008,1010, and/or 1018 Steel	-	Zinc plated clear chromate	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
Handle	Vinyl	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-201-TC Series (625 lbs)

Steel

PART NO.	DESCRIPTION	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
CL-201-TC	Open Arm, Flanged Base	625	.5
CL-202-TC	Open Arm, Straight Base	625	.5
CL-203-TC	Solid Arm, Flanged Base	625	.5

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to CL-201-TC Series (625 lbs)

Clamping Spindles

Flanged Washers

Bolt Retainers (S Type)
