CL-101-TC Series (250 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

CL-101-TC

Open Arm, Flanged Base

Simple, easy-opening toggle clamps with extra arm height. Arm opens 83° while handle moves 83° – ideal when wide opening is not desirable. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. Open-arm clamps are optionally available with a straight base. 250 lbs holding capacity.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Models Available

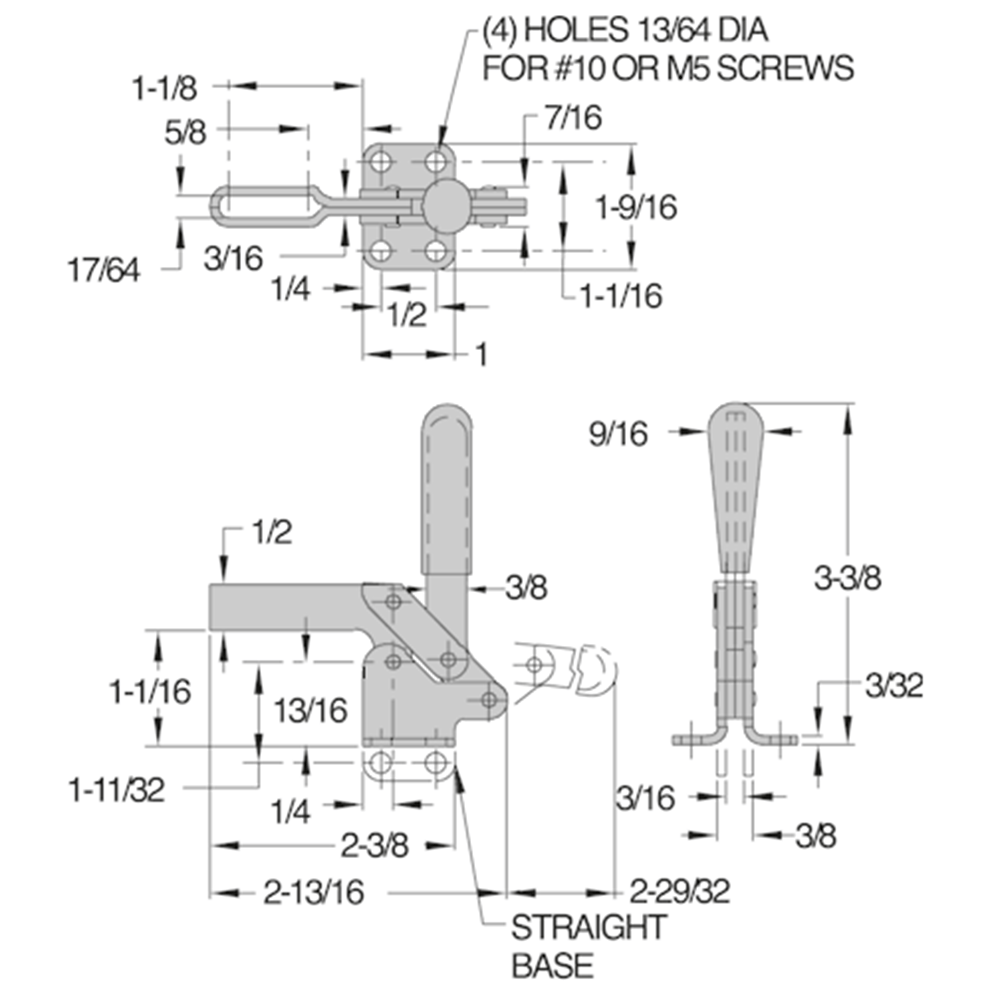

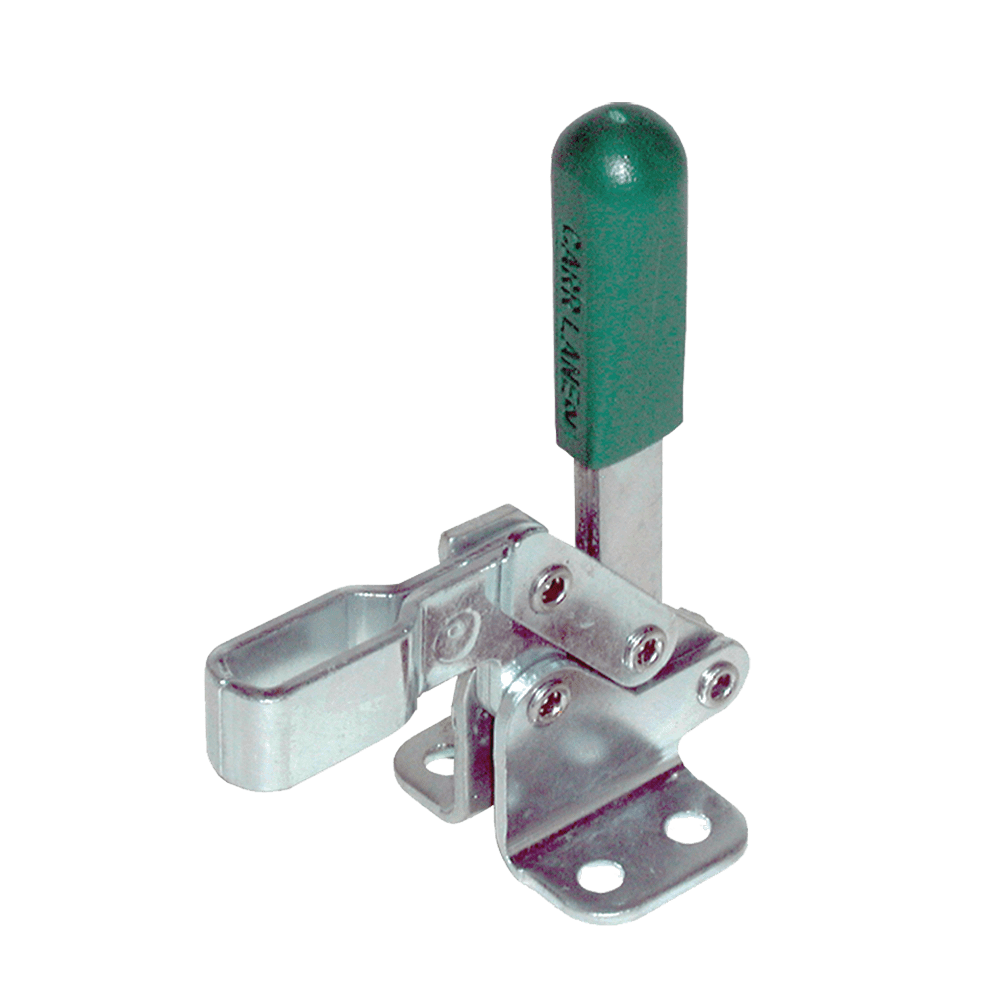

CL-101-TC

Open Arm, Flanged Base

CL-102-TC
Open Arm, Straight Base

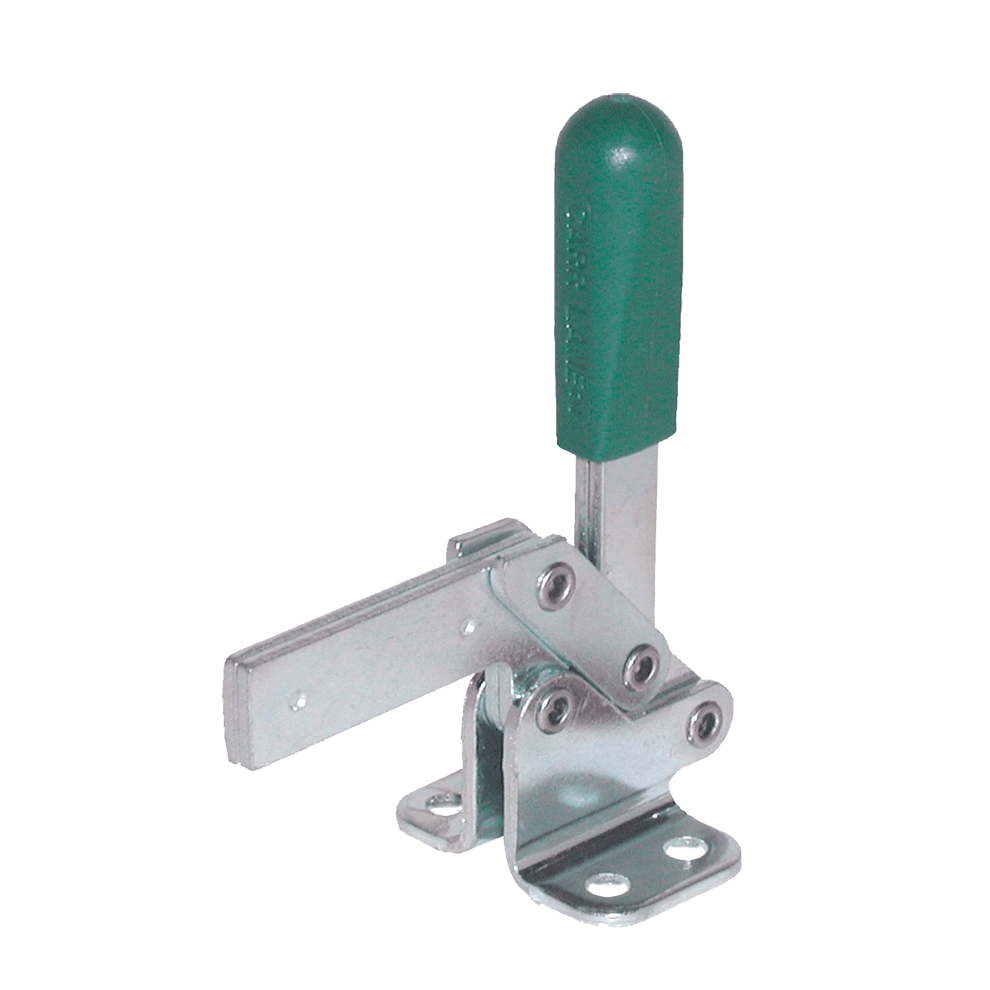

CL-103-TC
Solid Arm, Flanged Base

Clamping Action

Clamped Position

Open Position

Accessories

Open-arm models accept any 1/4-20 or M6 spindle and (2) CL-147-TW flanged washers. Solid-arm models accept any 1/4-20 spindle and CL-1458-S weld-on bolt retainer. Order all accessories separately (see Related Products below).

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	1008,1010, and/or 1018 Steel	-	Zinc plated clear chromate	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
Handle	Vinyl	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-101-TC Series (250 lbs)

Steel

PART NO.	DESCRIPTION	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
CL-101-TC	Open Arm, Flanged Base	250	.3
CL-102-TC	Open Arm, Straight Base	250	.3
CL-103-TC	Solid Arm, Flanged Base	250	.3

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to CL-101-TC Series (250 lbs)

Clamping Spindles

Flanged Washers

Bolt Retainers (S Type)
