CL-61-HDC Series (5000 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

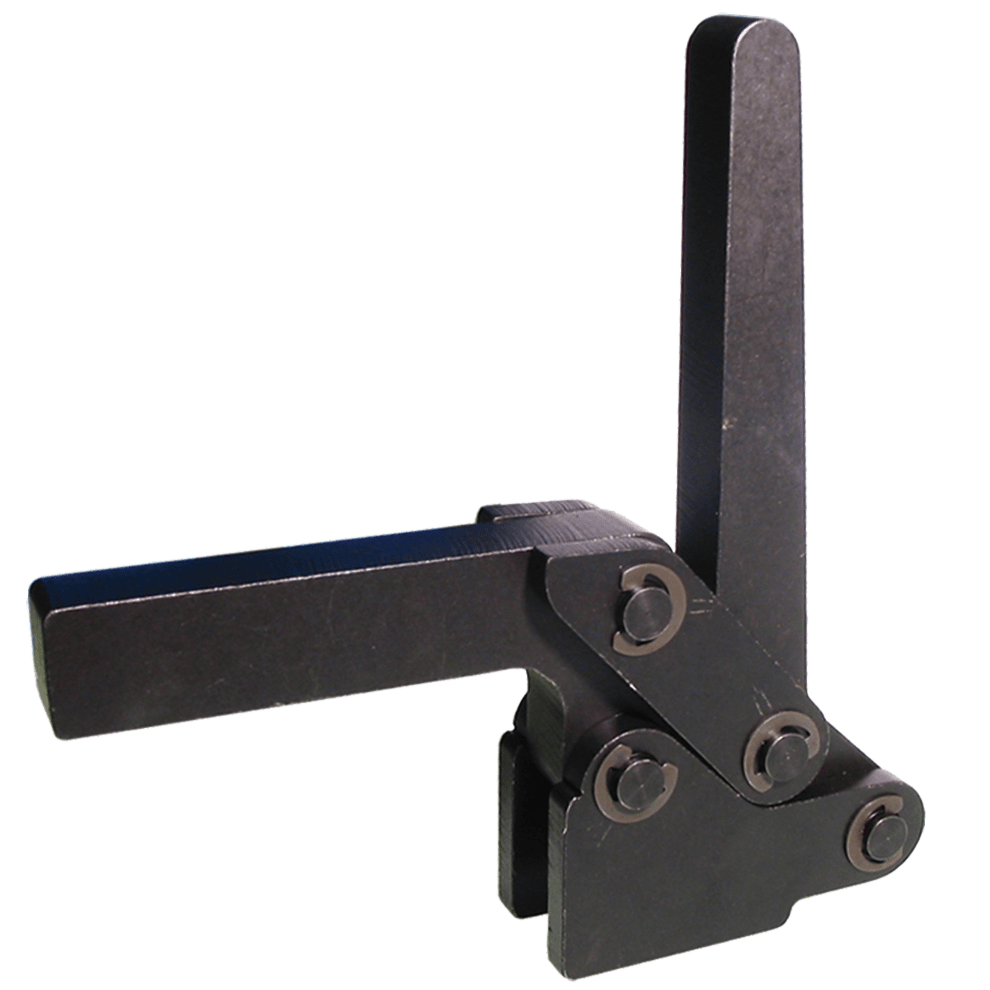

CL-61-HDC-211

Solid Arm, Straight Base

Heavy-duty toggle clamps with a machined steel handle and clamping arm. Simple, easy-opening toggle clamps with extra arm height. Arm opens 83° while handle moves 83° – ideal when wide opening is not desirable. Hardened bushings at all pivot points. Solid arm can be tapped to accept a spindle, or otherwise modified. 5000 lbs holding capacity.

View in Catalog Page
Contact Customer Service
Contact Customer Service

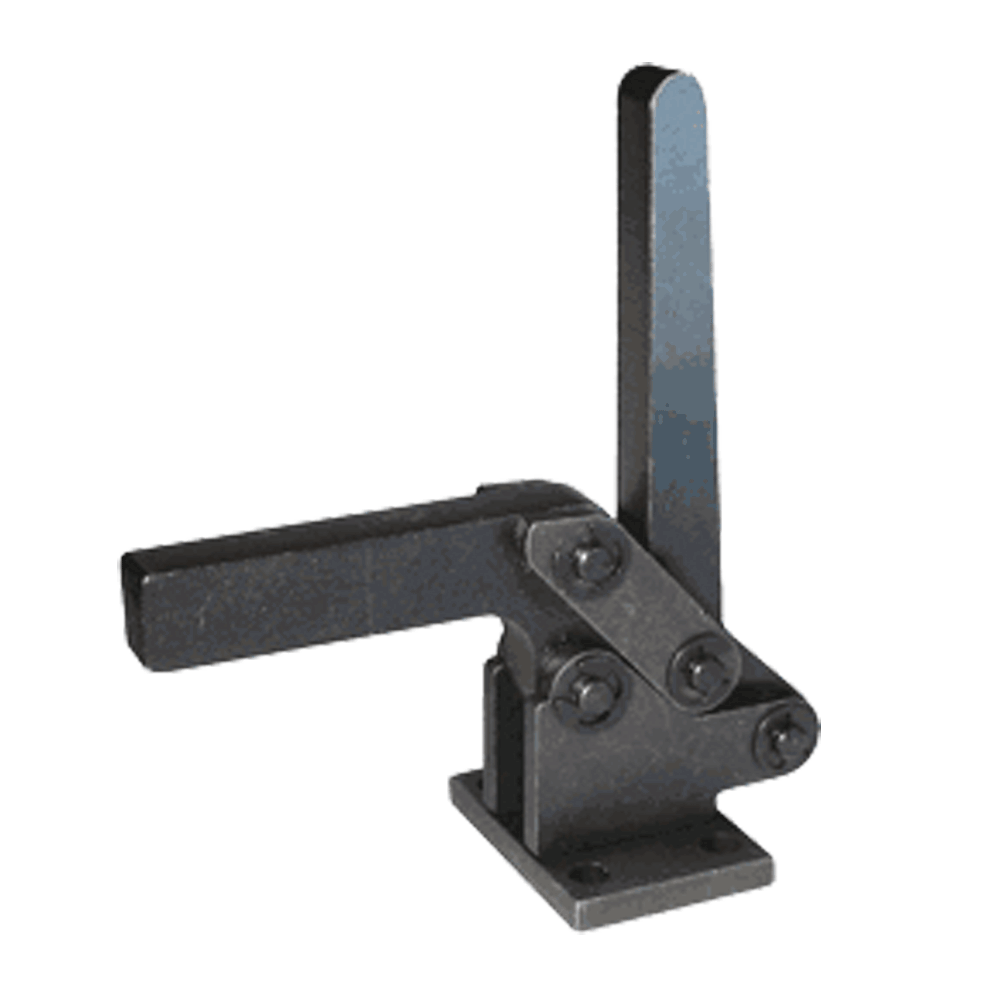

Optional Flanged Base

CL-61-HDC-211S
Solid Arm, Flanged Base
(Add "S" to part number)

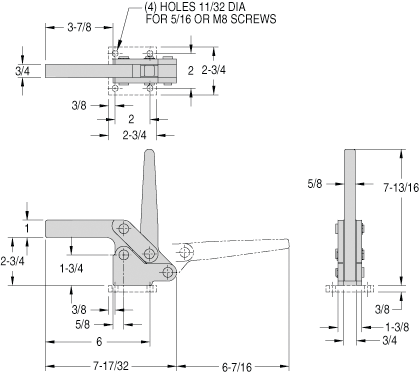

Clamping Action

Clamped Position

Open Position

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Mild Steel	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-61-HDC Series (5000 lbs)

QUANTITY	PART NO.	DESCRIPTION	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
	CL-61-HDC-211	Solid Arm, Straight Base	5000	5.0
	CL-61-HDC-211S	Solid Arm, Attached Flanged Base	5000	5.0

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to CL-61-HDC Series (5000 lbs)

CL-3000-PTC (5000 lbs)

Clamping Spindles
