CL-254-PL Series (700 lbs) Jaw Width 1-3/4"

Toggle Clamps

Save to My Project

What is this?

Product Information

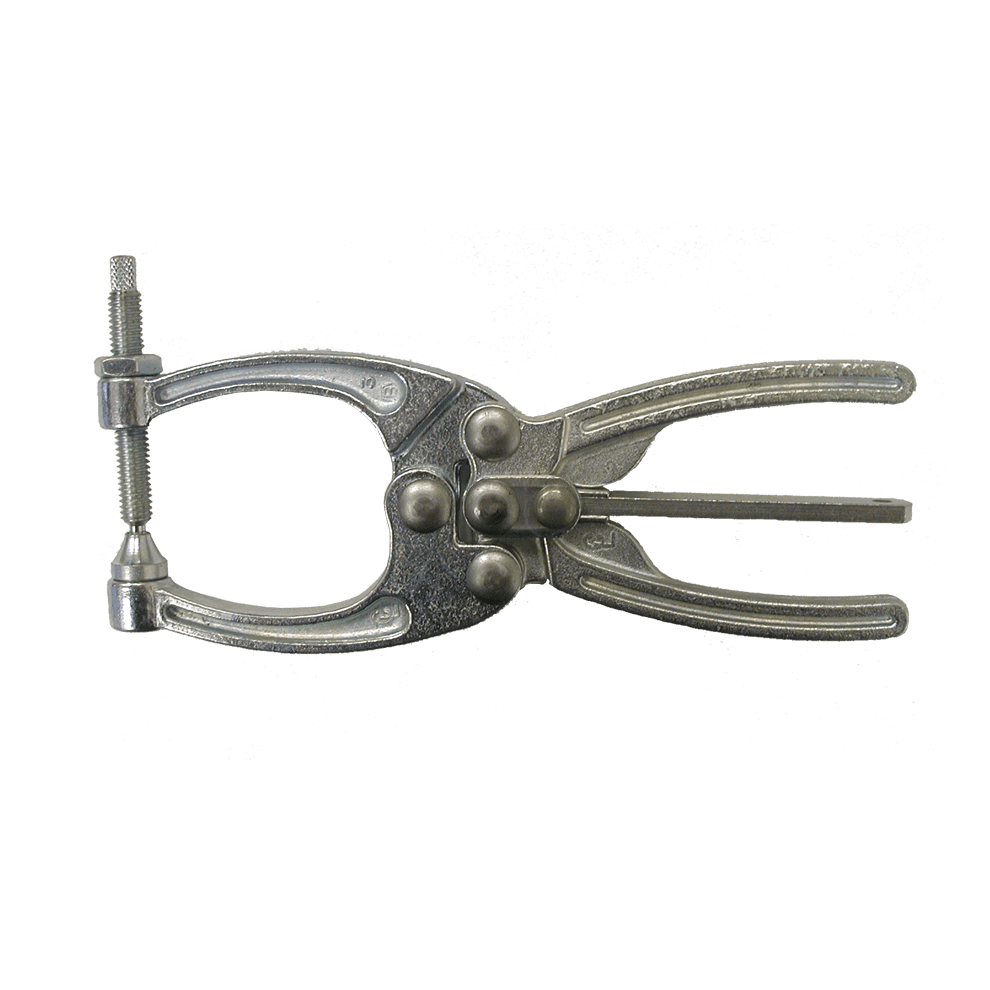

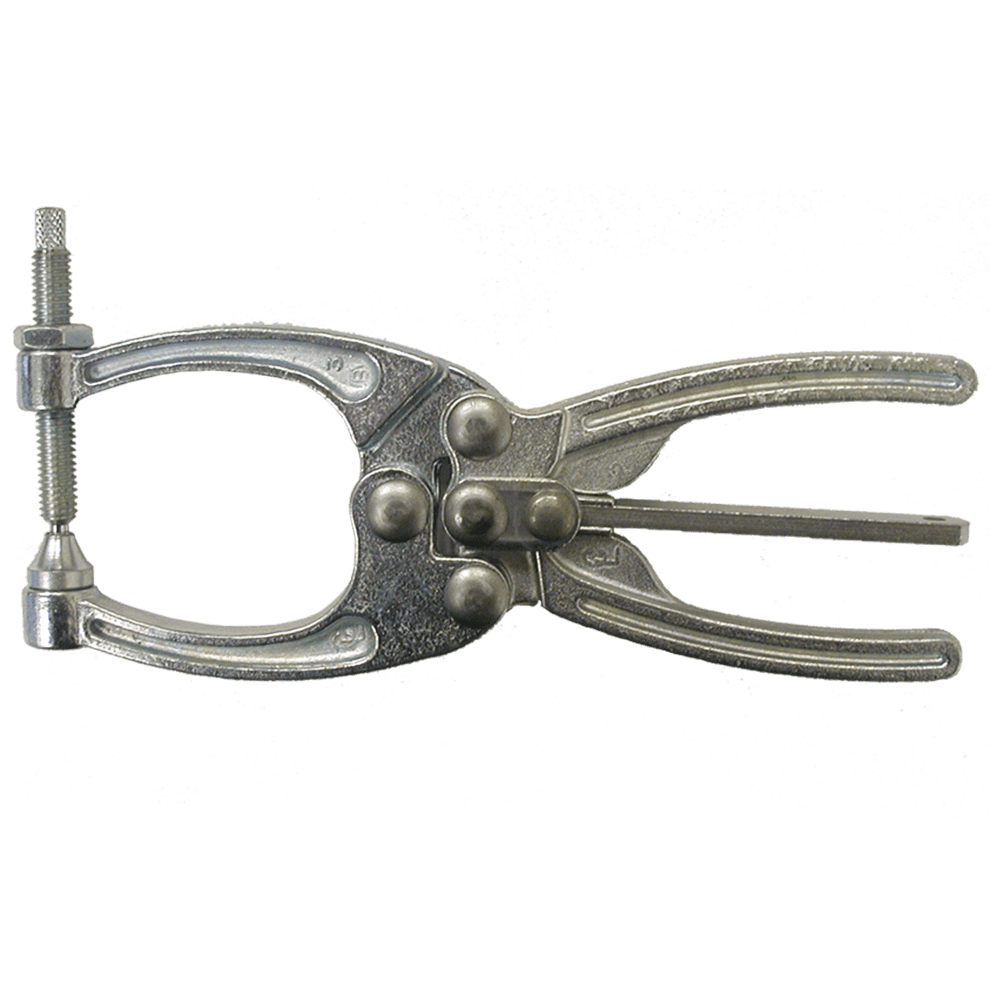

CL-254-PL

Swivel-Foot Spindle

Heavy-duty toggle pliers made of forged steel. Toggle pliers are hand-held, portable clamps that combine a squeezing motion with a toggle action. 1-3/4" jaw width in closed position. Two-way quick-release lever for easy opening. 700 lbs holding capacity.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Models Available

Diagram showcasing the application of Cl 254 Pl Series 700 Lbs Jaw Width 1 34

CL-254-PL
Swivel-Foot Spindle

CL-250-PL
Hex-Head Spindle

CL-252-PL
Flat-Cushion Spindle

CL-254-PL-2
Dual Hex-Head Spindles

Clamping Action

Clamped Position

Open Position

Accessories

CL-254-PL supplied with 3/8-16 swivel-foot spindle CL-38314-SF. CL-250-PL supplied with 3/8-16 hex-head spindle CL-38314-SA. CL-252-PL supplied with 3/8-16 flat-cushion spindle CL-38314-FC. CL-254-PL-2 supplied with two 3/8-16 hex-head spindles CL-38314-SA.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Handles and Jaws	Forged Steel	-	Zinc Plated Clear Chromate	✔	✔
Release Lever	1008, 1010, and/or 1018 steel	-	Zinc Plated Clear Chromate	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-254-PL Series (700 lbs) Jaw Width 1-3/4"

Steel

PART NO.	DESCRIPTION	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
CL-254-PL	Swivel-Foot Spindle	700	1.3
CL-250-PL	Hex-Head Spindle	700	1.3
CL-252-PL	Flat Cushion Spindle	700	1.3
CL-254-PL-2	Dual Hex-Head Spindles	700	1.3
