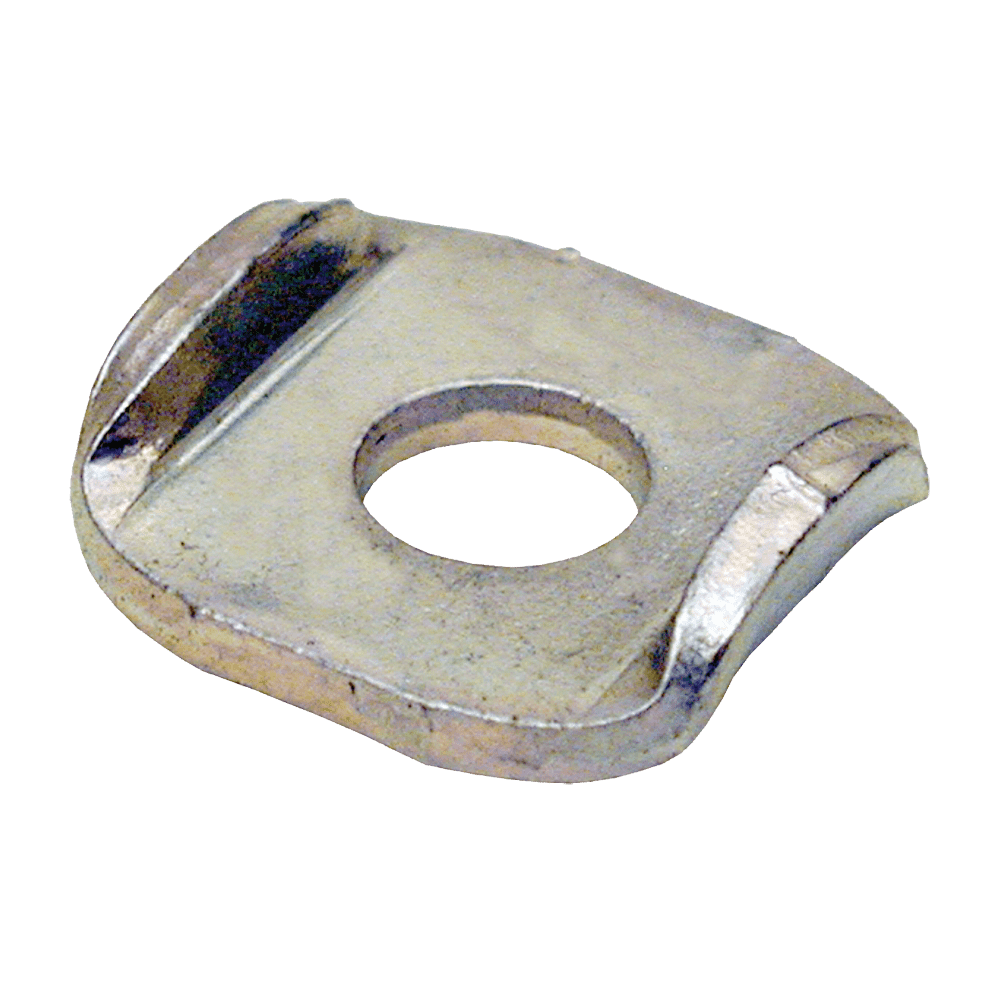

Flanged Washers

Toggle Clamps

Save to My Project

What is this?

Product Information

Use for mounting spindles on open-arm clamps. Use two flanged washers for each clamp, one above the arm and one below. Available for spindle sizes from #8-32 to 5/8-11 (M4 to M16 in metric). Also available in stainless steel.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

Steel
MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1008, 1010, and/or 1018 steel	-	Zinc Plated Clear Chromate	✔	✔

Stainless Steel
MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
300-Series Stainless Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Flanged Washers

Steel

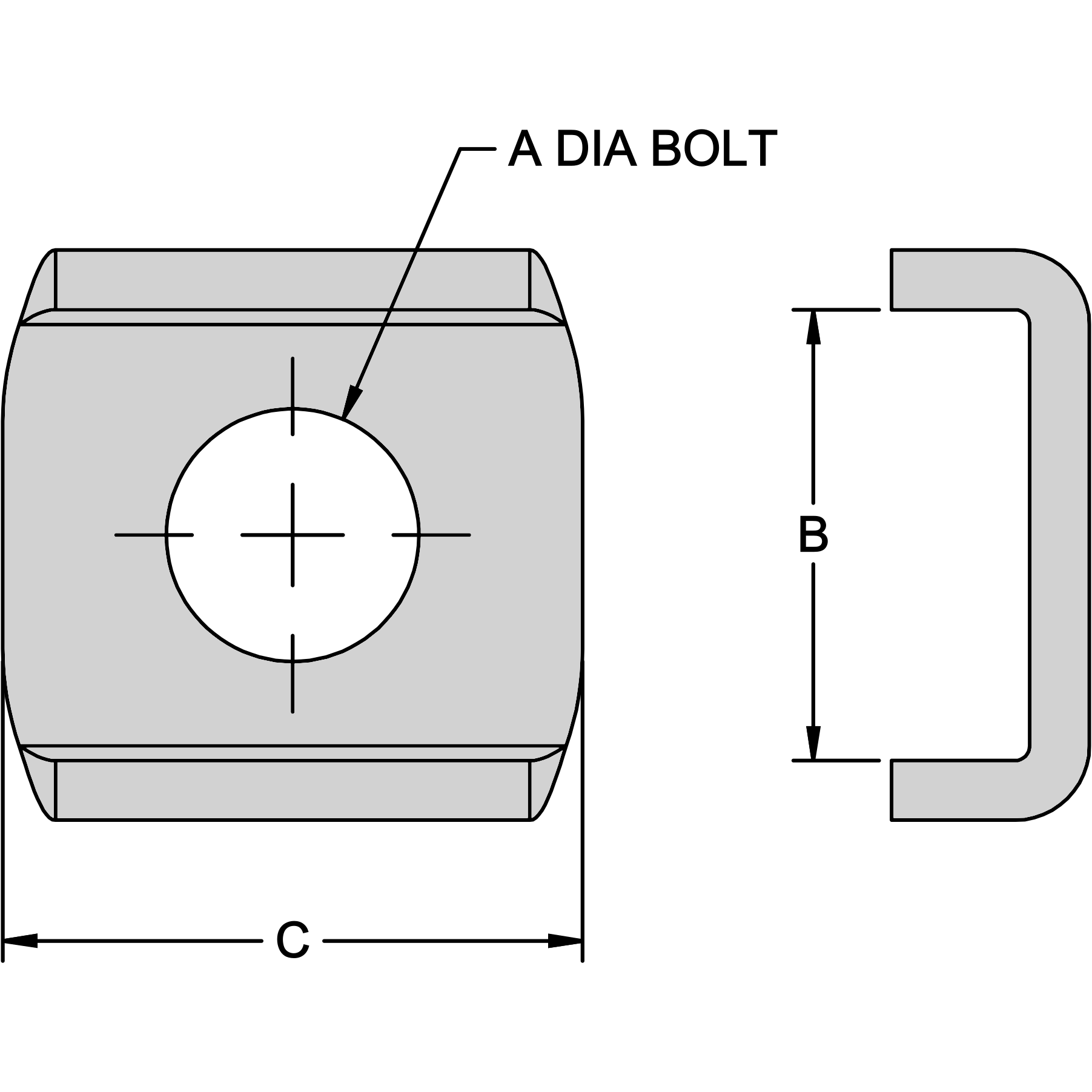

PART NO.	A	B	C DIA
CL-832-TW-PACKOF2	#8-32 or M4	11/32	15/32
CL-3166-TW-PACKOF2	#10-32 or M5	13/32	15/32
CL-147-TW-PACKOF2	1/4-20 or M6	15/32	11/16
CL-148-TW-PACKOF2	1/4-20 or M6	17/32	11/16
CL-51610-TW-PACKOF2	5/16-18 or M8	21/32	7/8
CL-3811-TW-PACKOF2	3/8-16 or M10	25/32	1
CL-1213-TW	1/2-13 or M12	29/32	1-1/4

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Stainless Steel

PART NO.	A	B	C DIA
CL-832-TW-S-PACKOF2	#8-32 or M4	11/32	15/32
CL-3166-TW-S-PACKOF2	#10-32 or M5	13/32	15/32
CL-147-TW-S-PACKOF2	1/4-20 or M6	15/32	11/16
CL-148-TW-S-PACKOF2	1/4-20 or M6	17/32	11/16
CL-51610-TW-S-PACKOF2	5/16-18 or M8	21/32	7/8
CL-3811-TW-S-PACKOF2	3/8-16 or M10	25/32	1
