Flat-Cushion Spindles (Quick Adjusting)

Toggle Clamps

Save to My Project

What is this?

Product Information

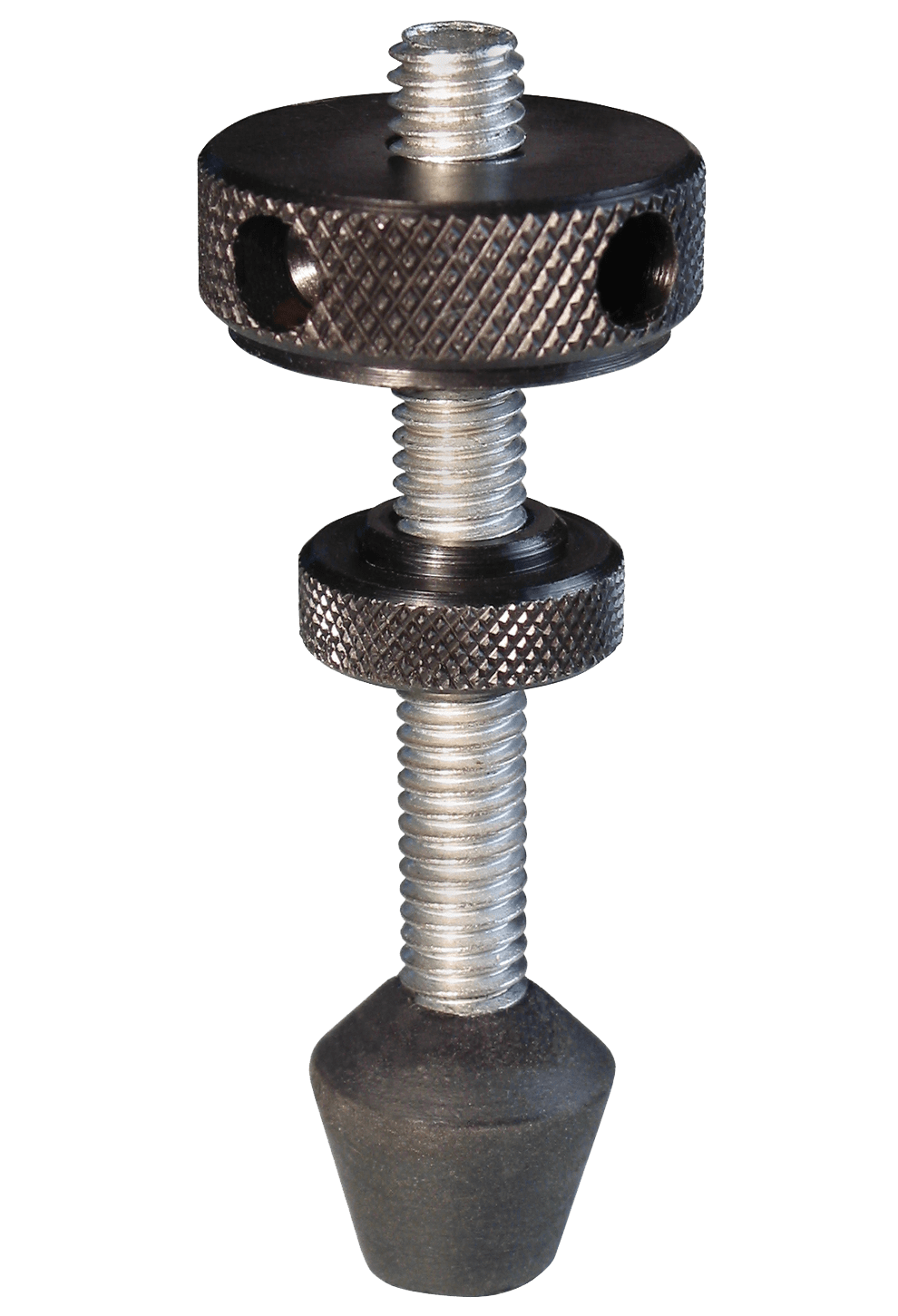

Flat-Cushion Spindles (Quick Adjusting) Part # CL-38212-FCQA Carr Lane Mfg.®

This Flat-Cushion Spindle includes two knurled nuts, instead of hex jam nuts, for convenient hand tightening. Use for quick spindle adjustment in applications where high-torque tightening with a wrench is not required. Molded neoprene tip provides medium clamping force with some compensation for part-size variation. Also provides scratch-free clamping. Fully threaded for maximum adjustment range. Available in thread sizes from #10-32 to 3/8-16, most in a choice of lengths.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Spindle	Mild steel	-	Zinc Plated Clear Chroamte, with molded-on neoprene cushion, durometer hardness 70 shore A, operating temperature range -40°F to 220°F.	✔	✔
Knurled Nut	1215 Steel	-	Steel Black Oxide	✔	✔
Knurled Check Nut	1215 Steel	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Flat-Cushion Spindles (Quick Adjusting)

Steel (Inch)

PART NO.	A THREAD	B	C DIA	D DIA	E
CL-316112-FCQA	#10-32	1-3/8	9/16	.44	.40
CL-14112-FCQA	1/4-20	1-5/8	5/8	.40	.60
CL-14200-FCQA	1/4-20	2-1/8	5/8	.40	.60
CL-518208-FCQA	5/16-18	2-1/4	3/4	.48	.72
CL-516212-FCQA	5/16-18	3	3/4	.48	.72
CL-38212-FCQA	3/8-16	2-9/16	7/8	.56	.84
CL-38314-FCQA	3/8-16	3-9/16	7/8	.56	.84
