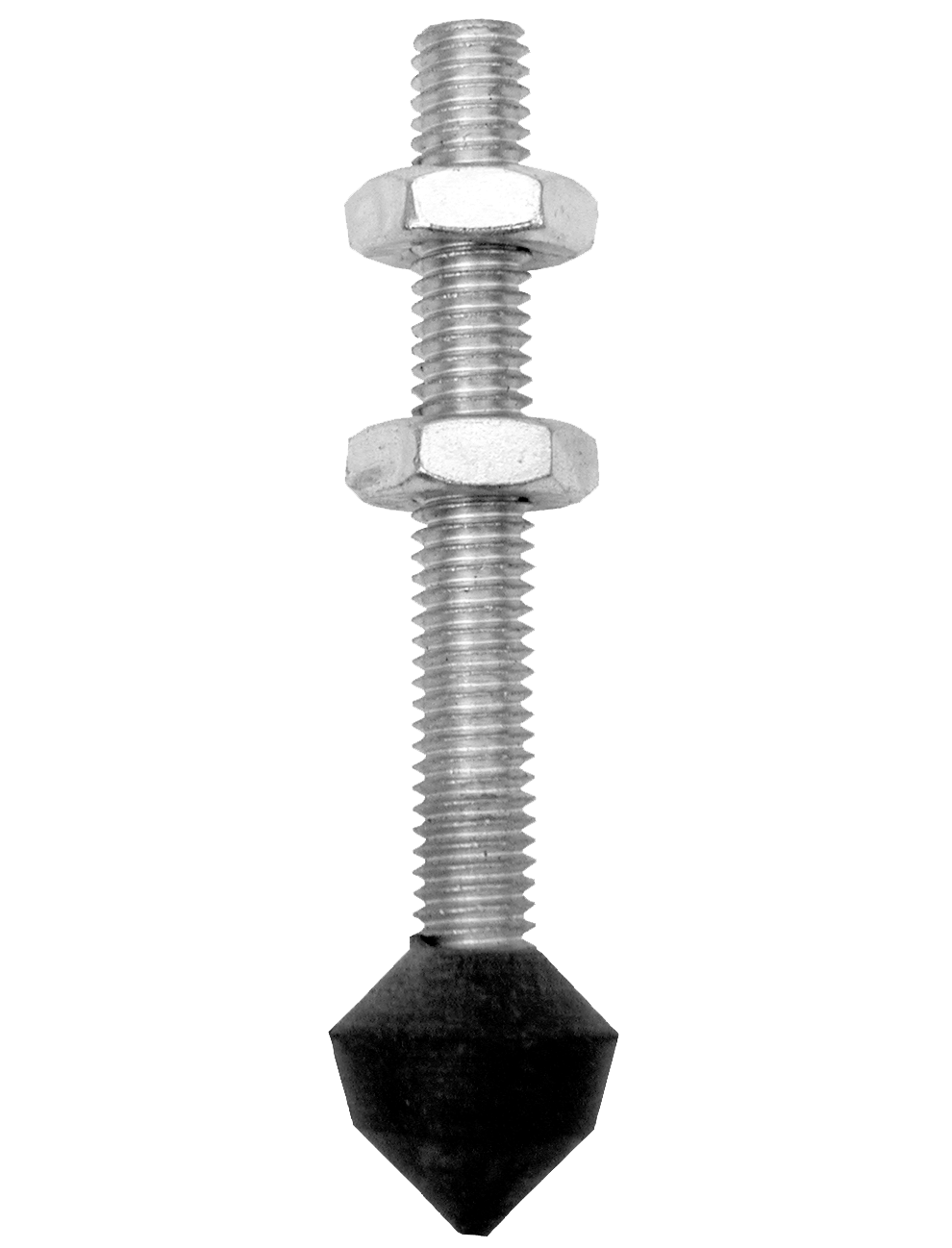

Cone-Cushion Spindles

Toggle Clamps

Save to My Project

What is this?

Product Information

Excellent for clamping into drilled holes, slots, or corners. Molded neoprene tip provides medium clamping force with some compensation for part-size variation. Also provides scratch-free clamping. Spindle is fully threaded for maximum adjustment range. Assembly includes two jam nuts. Available in thread sizes from #10-32 to 3/8-16.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Mild Steel	-	Zinc plated clear chromate, with molded-on neoprene cushion, durometer hardness 70 shore A, operating temperature range -40°F to 220°F	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Cone-Cushion Spindles

Steel (Inch)

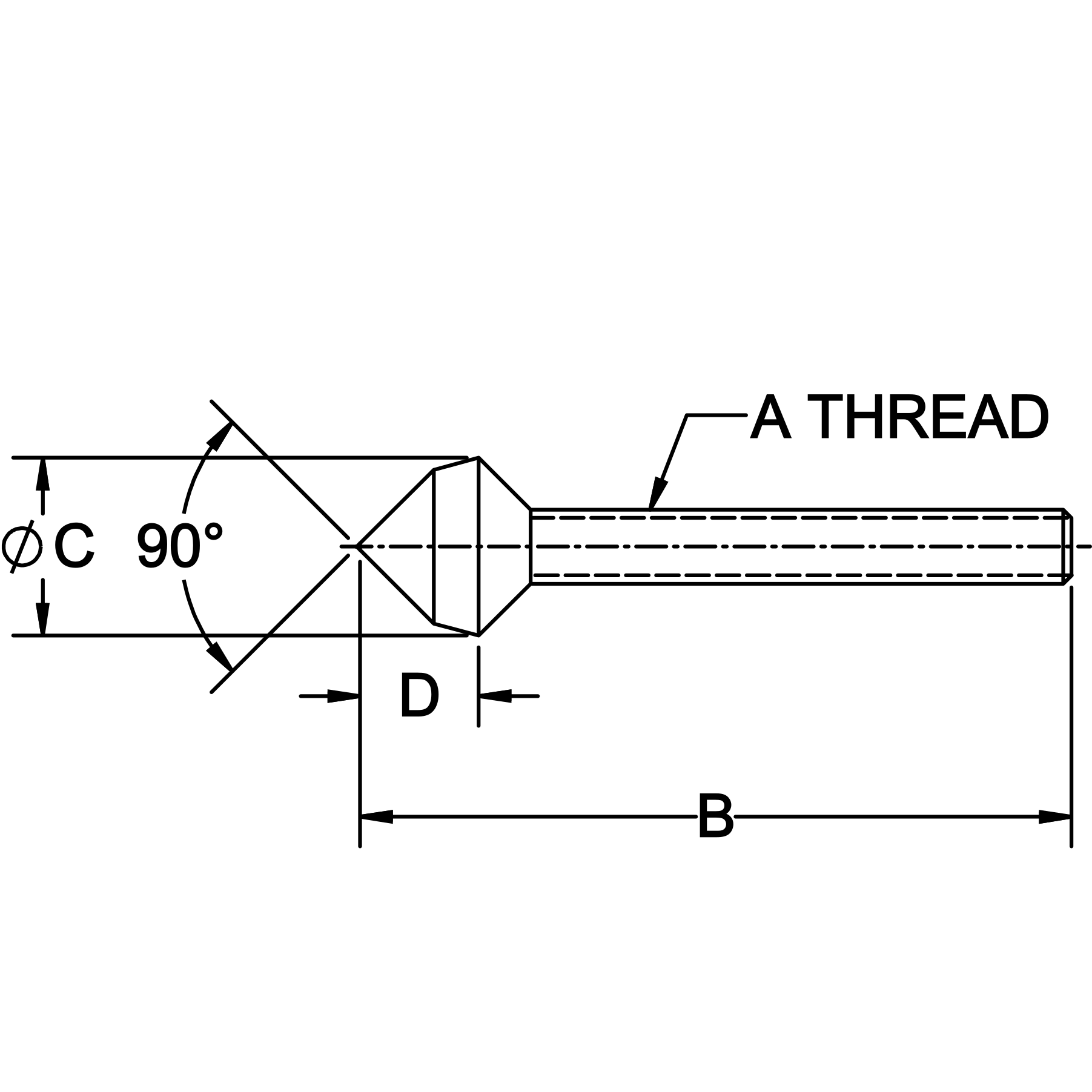

PART NO.	A THREAD	B ±.05	C DIA	D
CL-316112-CC	#10-32	1-3/8	9/16	7/32
CL-14112-CC	1/4-20	1-5/8	5/8	13/32
CL-14200-CC	1/4-20	2-1/8	5/8	13/32
CL-516212-CC	5/16-18	3	3/4	1/2
CL-38314-CC	3/8-16	3-9/16	7/8	19/32
