CL-250-SPC Series (800 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

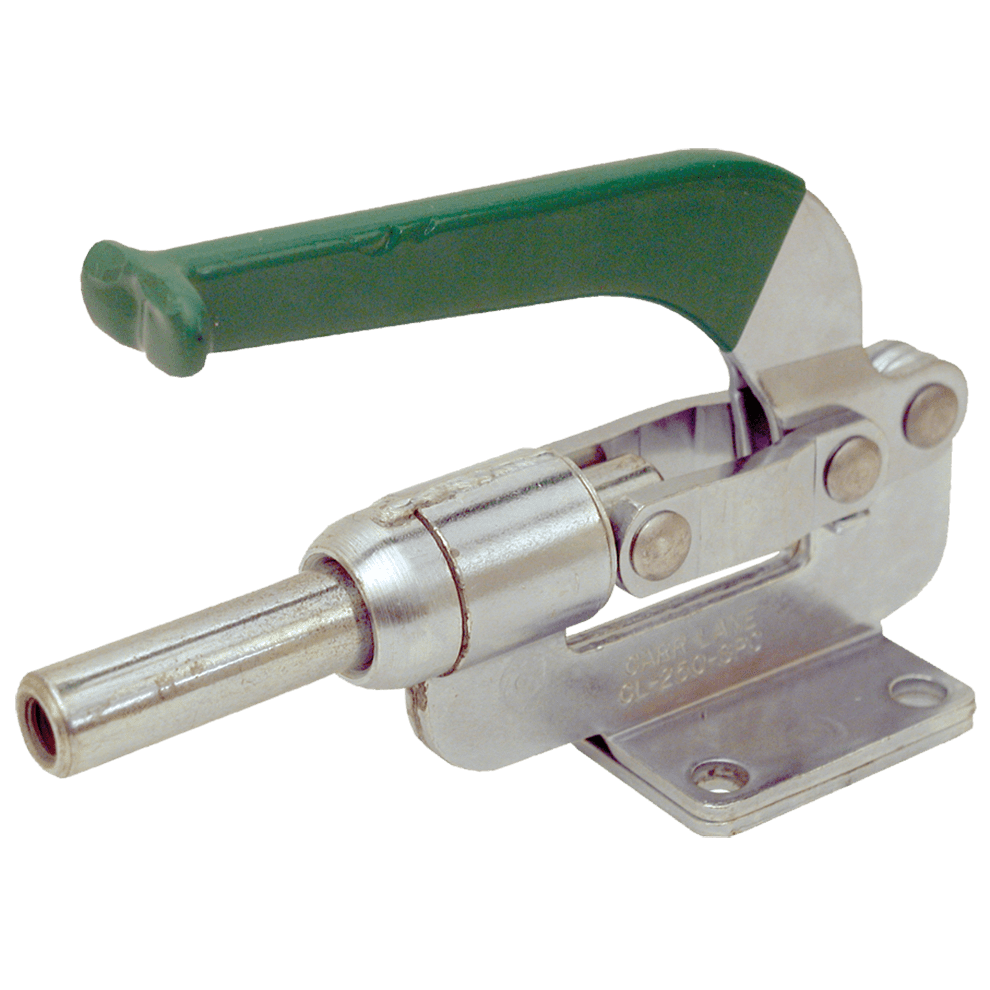

CL-250-SPC

Tapped Plunger

Heavy-duty clamp with extra plunger height. Locks in extended or retracted position. 1-5/8" plunger travel. Plunger is tapped to accept any 3/8-16 spindle (M10 in metric). Optionally available with our patented self-adjusting plunger, or reverse-acting with a horizontal handle (see Related Products below). 800 lbs holding capacity.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Models Available

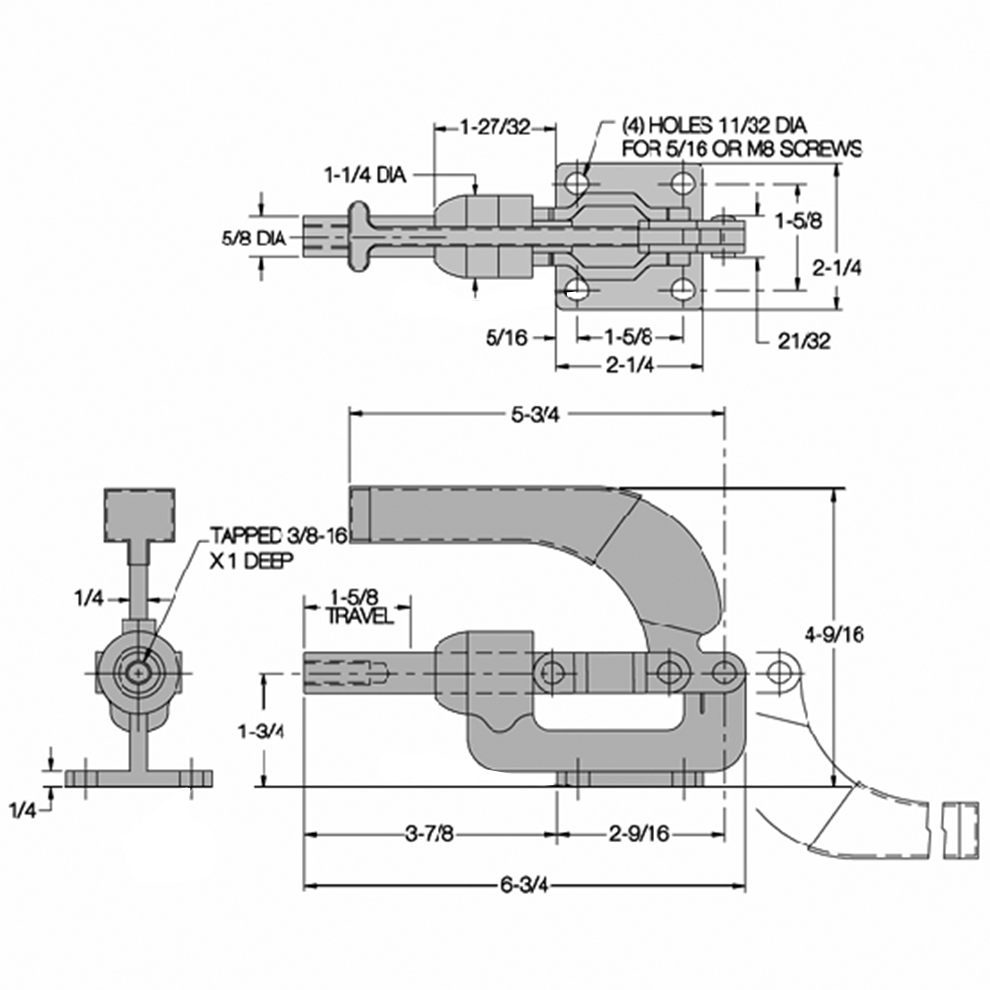

Diagram showcasing the application of Cl 250 Spc Series 800 Lbs

CL-250-SPC
Tapped Plunger (Inch)

CLM-250-SPC
Tapped Plunger (Metric)

Clamping Action

Clamped Position (Push)

Open Position (Push)

Clamped Position (Pull)

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	1215, 1008, 1010, and/or 1018 steel	-	Zinc Plated Clear Chromate	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
Handle	Vinyl	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-250-SPC Series (800 lbs)

Steel (Inch)

QUANTITY	PART NO.	DESCRIPTION	TAPPED HOLE IN PLUNGER	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
	CL-250-SPC	Tapped Plunger, Flanged Base	3/8-16	800	1.9

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Steel (Metric)

QUANTITY	PART NO.	DESCRIPTION	TAPPED HOLE IN PLUNGER	THREAD PITCH (mm)	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
	CLM-250-SPC	Tapped Plunger, Flanged Base	M10	1.5	800	1.9

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to CL-250-SPC Series (800 lbs)

CL-275-SPC Series (600 lbs)
