CL-150-SPC Series (300 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

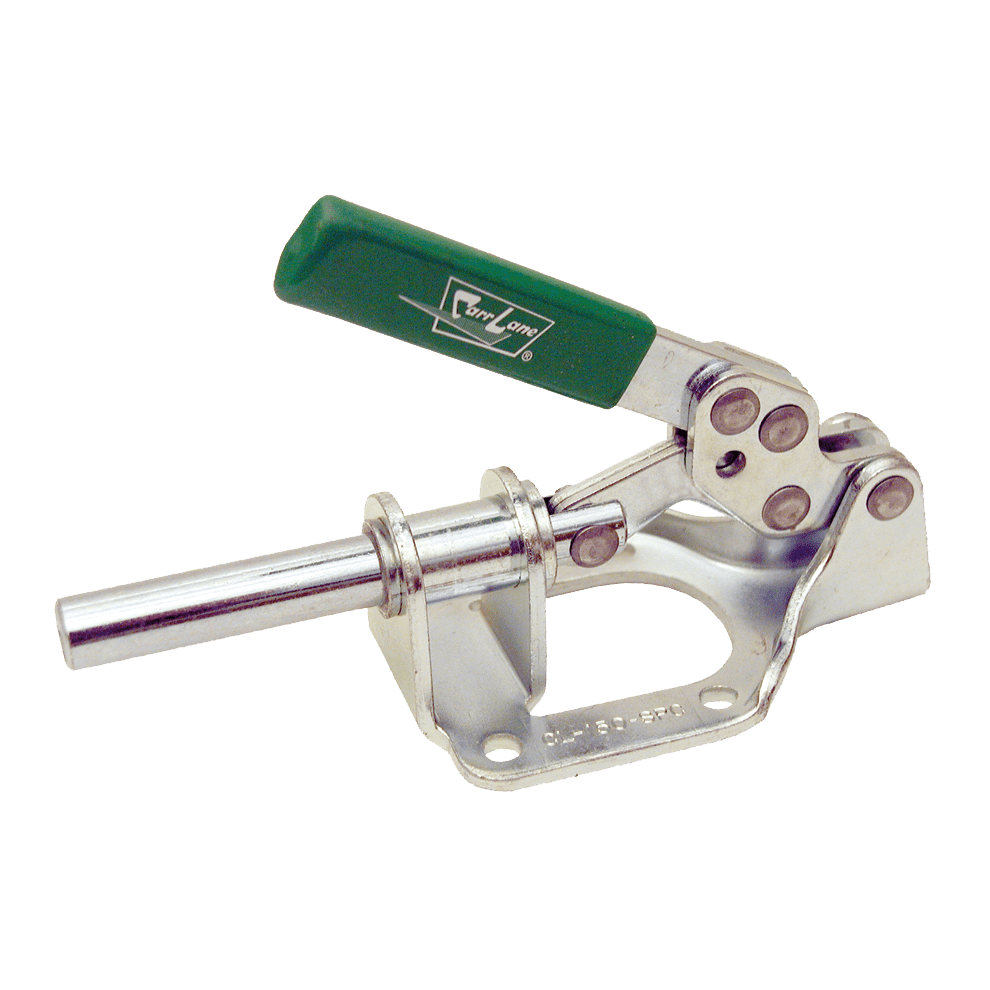

CL-150-SPC

Tapped Plunger

Medium-size plunger clamp. Locks in extended or retracted position. 1-1/4" plunger travel. Plunger is tapped to accept any 5/16-18 spindle (M8 in metric). 300 lbs holding capacity.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Models Available

Diagram showcasing the application of Cl 150 Spc Series 300 Lbs

CL-150-SPC
Tapped Plunger (Inch)

CLM-150-SPC
Tapped Plunger (Metric)

Clamping Action

Clamped Position (Push)

Open Position (Push)

Clamped Position (Pull)

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	1215, 1008, 1010, and/or 1018 steel	-	Zinc Plated Clear Chromate	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
Handle	Vinyl	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-150-SPC Series (300 lbs)

Steel (Inch)

QUANTITY	PART NO.	DESCRIPTION	TAPPED HOLE IN PLUNGER	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
	CL-150-SPC	Tapped Plunger, Flanged Base	5/16-18	300	.7

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Steel (Metric)

QUANTITY	PART NO.	DESCRIPTION	TAPPED HOLE IN PLUNGER	THREAD PITCH (mm)	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
	CLM-150-SPC	Tapped Plunger, Flanged Base	M8	1.25	300	.7

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
