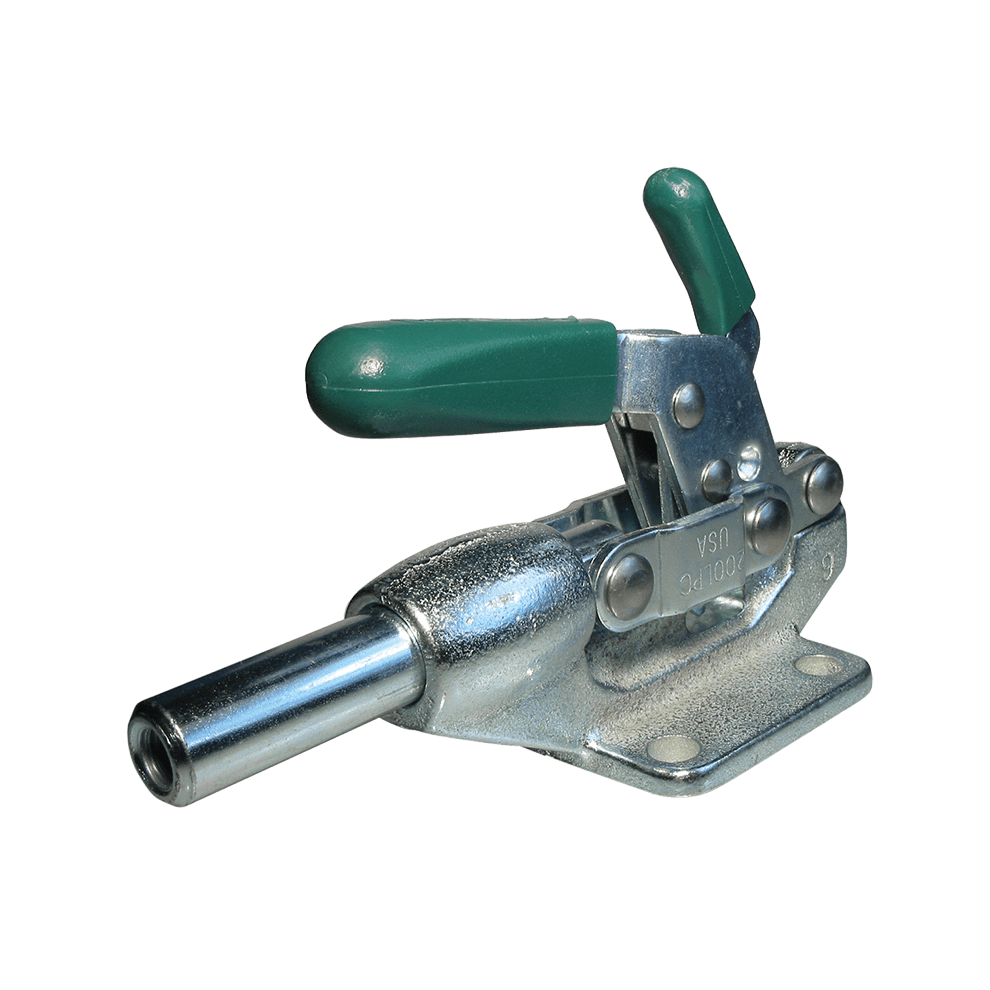

CL-200-LPC with Safety Lock (850 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

CL-200-LPC

Tapped Plunger

Safety-lock version of our CL-200-PC toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle. Please note, the safety lock functions only in extended position (push), not in retracted position (pull).

Durable plunger clamp with a nodular iron base. 1-5/8" plunger travel. Plunger is tapped to accept any 3/8-16 spindle (M10 in metric). 850 lbs holding capacity.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Clamping Action

Clamped Position

Press Lever to Unlock

Open Position

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	1215, 1008, 1010, and/or 1018 steel	-	Zinc Plated Clear Chromate	✔	✔
Base	Nodular Iron	-	Zinc Plated Clear Chromate	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
Handle	Vinyl	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-200-LPC with Safety Lock (850 lbs)

Steel with Nodular Iron Base (Inch)

QUANTITY	PART NO.	DESCRIPTION	TAPPED HOLE IN PLUNGER	HOLDING CAPACITY (lbs)	SHIPPING WEIGHT (lbs)
	CL-200-LPC	Tapped Plunger, Flanged Base	3/8-16	850	1.4
