CL-500-LPA Series with Safety Lock (7500 lbs)

Toggle Clamps

Product Information

CL-500-LPA

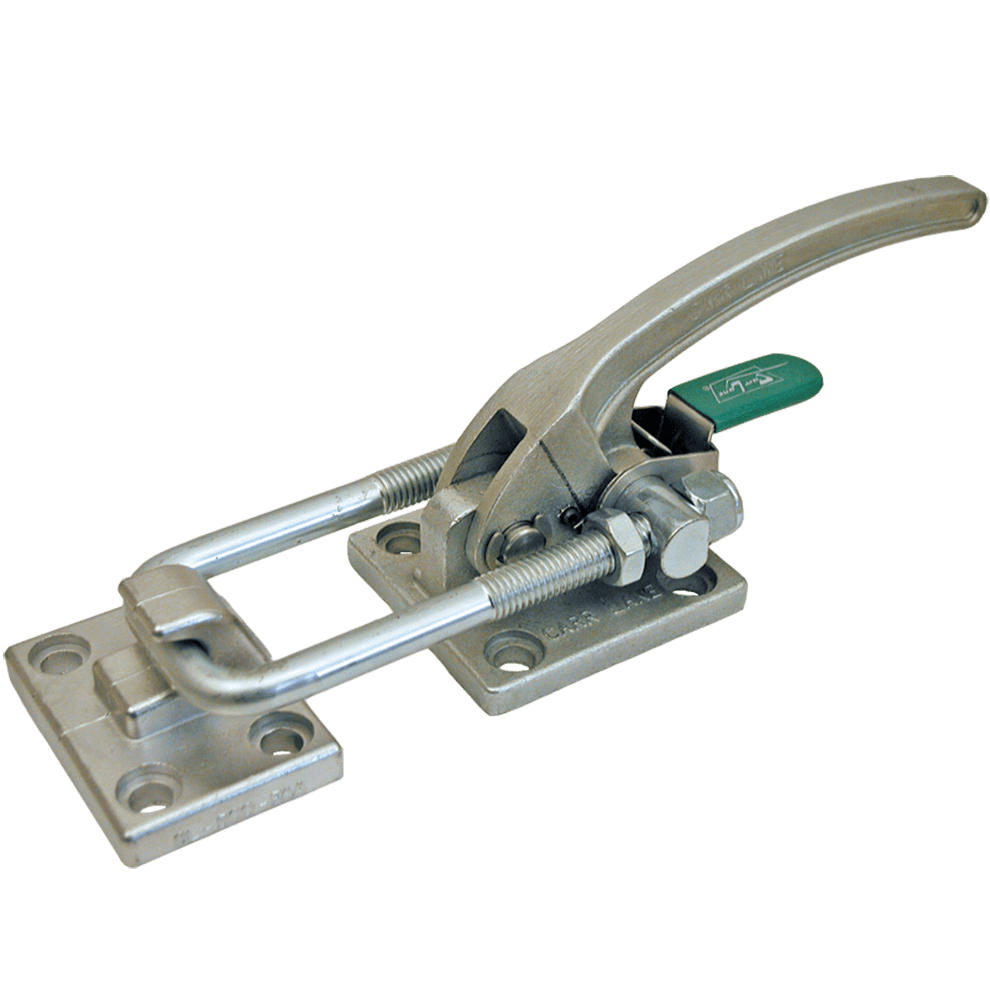

Safety-lock version of our CL-500-PA toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle.

Strongest latch clamp available. Rugged alloy steel handle, base, and latch plate provide great strength in a compact overall size. Versatile latch clamp with a threaded U bolt for adjustability. 2-1/2" drawing movement. Threaded U bolt allows a 15/16" adjustment range. Available in in steel or stainless steel. Order matching latch plate separately. 7500 lbs holding capacity.

Models Available

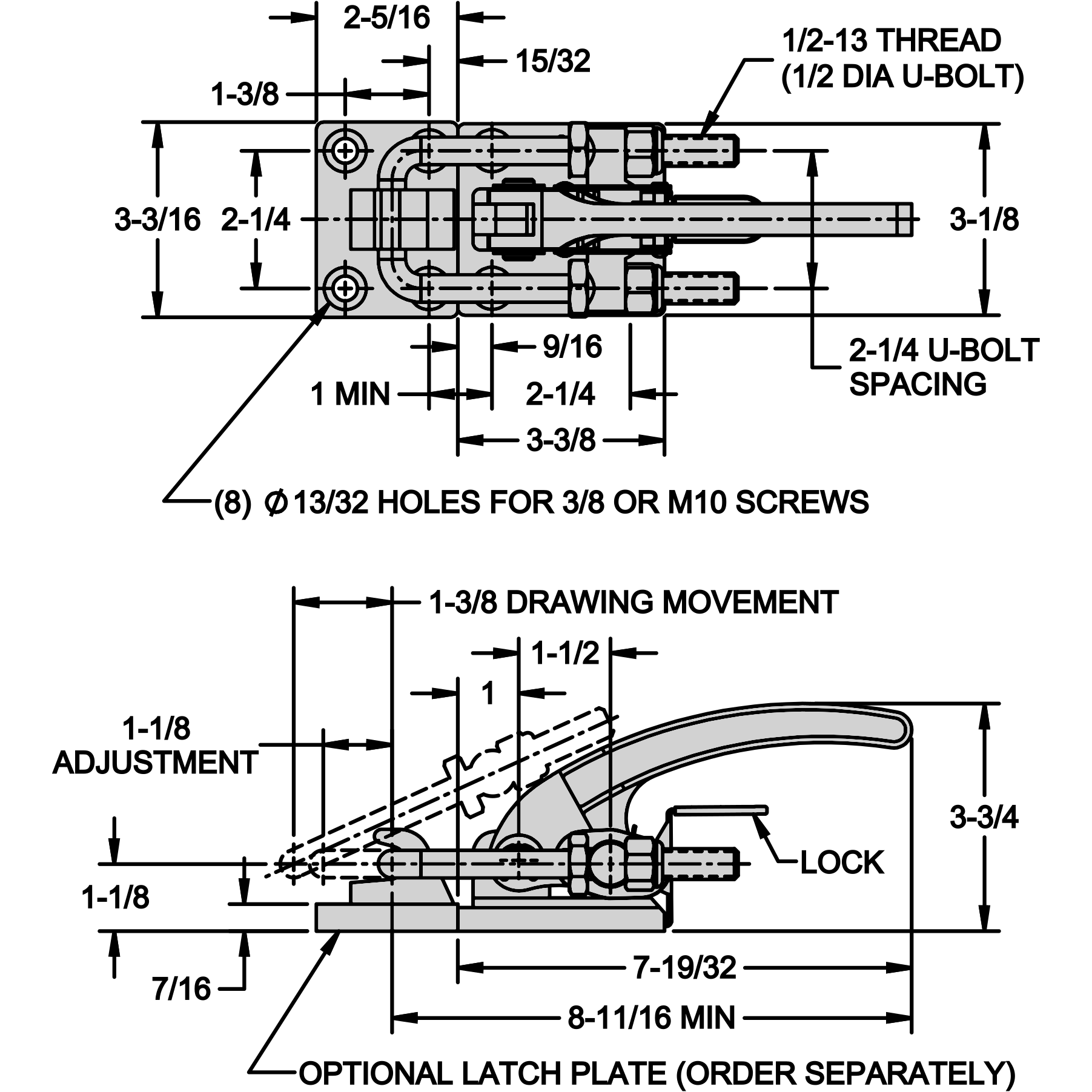

Diagram showcasing the application of Cl 500 Lpa Series With Safety Lock 7500 Lbs

CL-500-LPA
Also CL-500-LPA-S in stainless steel

Clamping Action

Press Lever to Unlock

Design Considerations

To achieve full holding capacity, U-bolt-type latch clamps must be used together with the optional latch plate, or with a suitable custom latch plate of equal width and centerline height.

Accessories

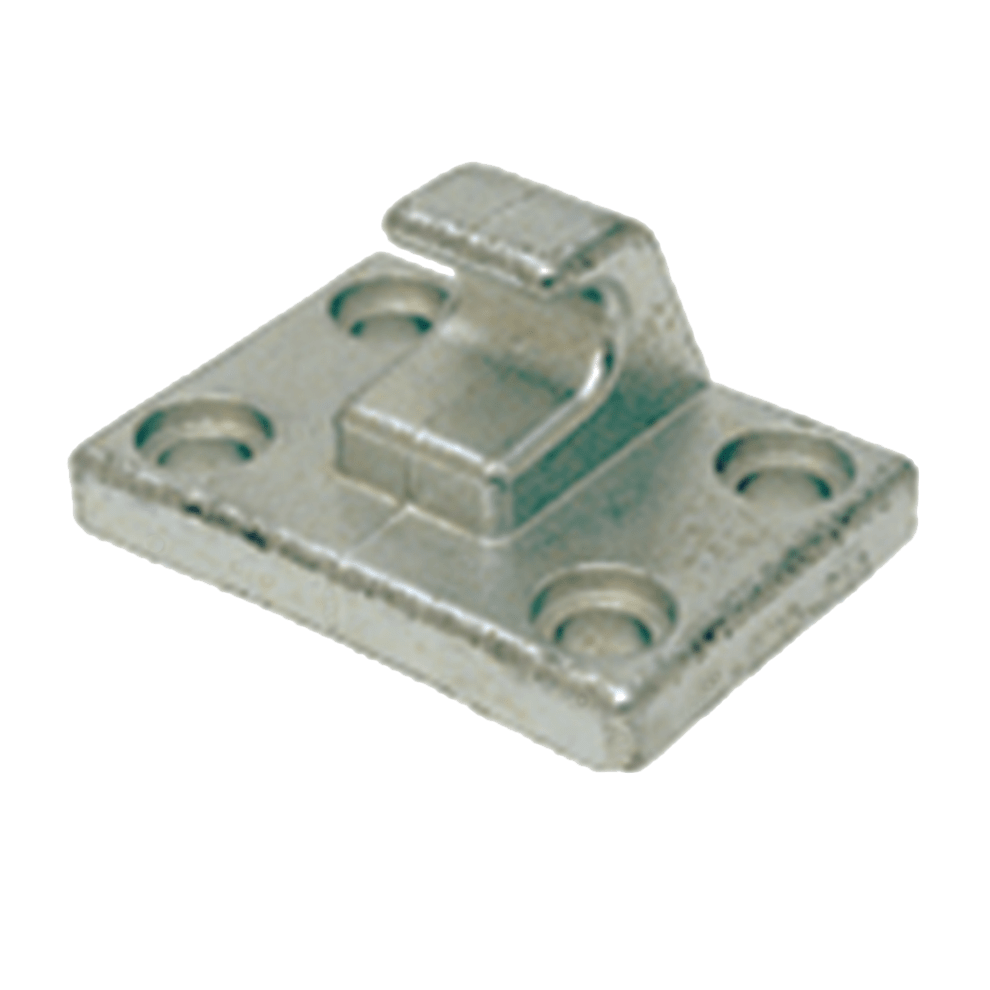

For steel clamps, order matching latch plate CL-500-PAA separately. For a replacement U Bolt, order CL-500-PA-UBOLT. For stainless steel clamps, order matching latch plate CL-500-PAA-S separately. For a replacement U Bolt, order CL-500-PA-S-UBOLT.

Material

STEEL
ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Handle, base, and latch plate	Alloy Steel	-	Zinc plated clear chromate	✔	✔
U bolt and crosspin	1215, 1008, 1010, and/or 1018 steel	-	Zinc plated clear chromate	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔

STAINLESS STEEL
ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Handle, base, latch plate, U bolt, and crosspin	300-Series Stainless	-	-	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
