CL-500-PTC Series (200 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

CL-500-PTC

Open Arm

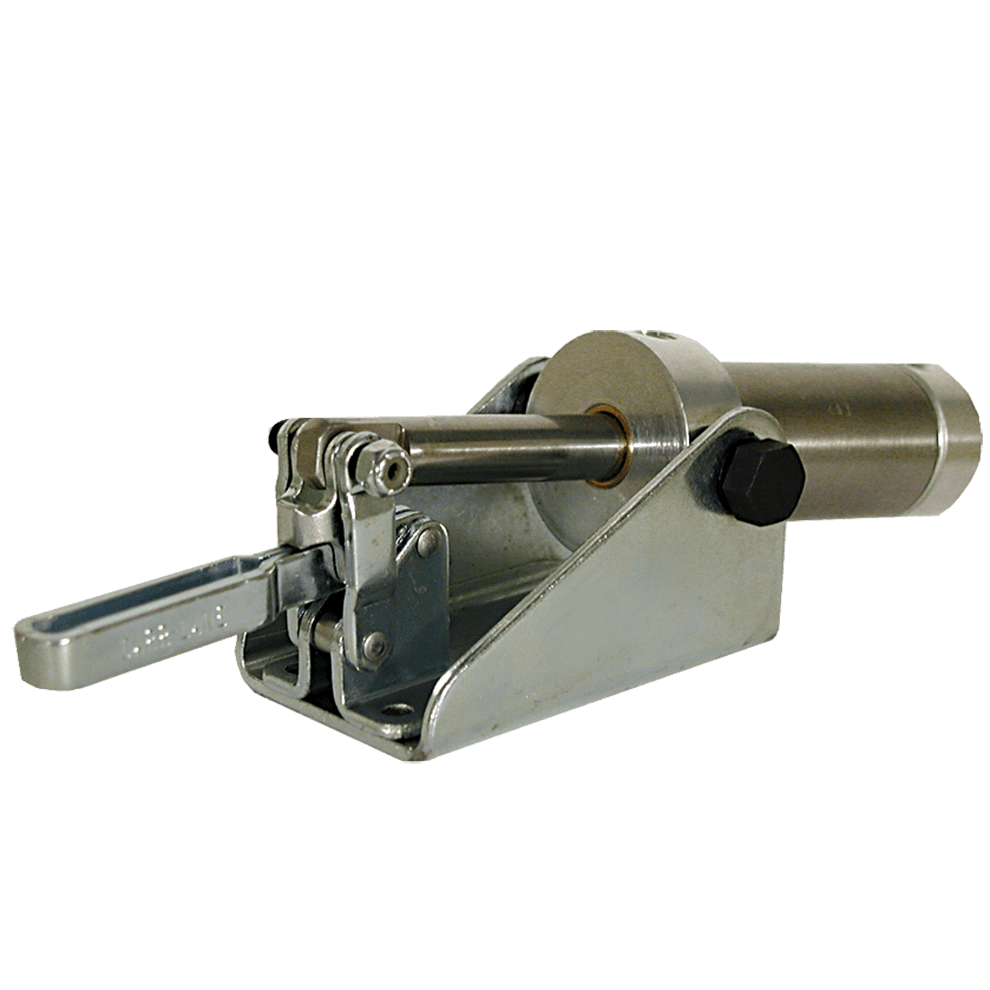

Small-yet-powerful air clamp with a long open arm. Similar to a wide-opening vertical-handle toggle clamp, except operated by an air cylinder instead of by hand. Toggle linkage provides high holding capacity and insures positive mechanical locking even if air pressure fails. The clamping arm opens 100°. Slotted open arm provides adjustable spindle location. 200 lbs holding capacity.

This clamp is operated by a 1-1/4"-bore double-acting air cylinder, with Buna-N seals for -20° to +200°F operating temperature. Two 1/8-NPT ports. 100-psi maximum input air pressure exerts 200 lbs maximum clamping force at the center of the arm.

Optional Position Sensing

Diagram showcasing the application of Cl 500 Ptc Series 200 Lbs

CL-500-PTC-MP

Open Arm, with Position Sensing

This clamp is optionally available with position-sensing capability, incorporating a special air cylinder with a magnetic piston ring. This allows monitoring cylinder position with either a Hall-effect switch or reed switch. Order Hall-effect or reed switch separately (see Related Products below).

Accessories

Accepts any 1/4-20 or M6 short spindle and (2) CL-148-TW flanged washers. Order all accessories separately (see Related Products below).

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	1008, 1010, and/or 1018 steel	-	Zinc Plated Clear Chromate	✔	✔
Air Cylinder	Steel and aluminum	-	-	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔
