CL-3000-PTC (5000 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

CL-3000-PTC

Solid Arm

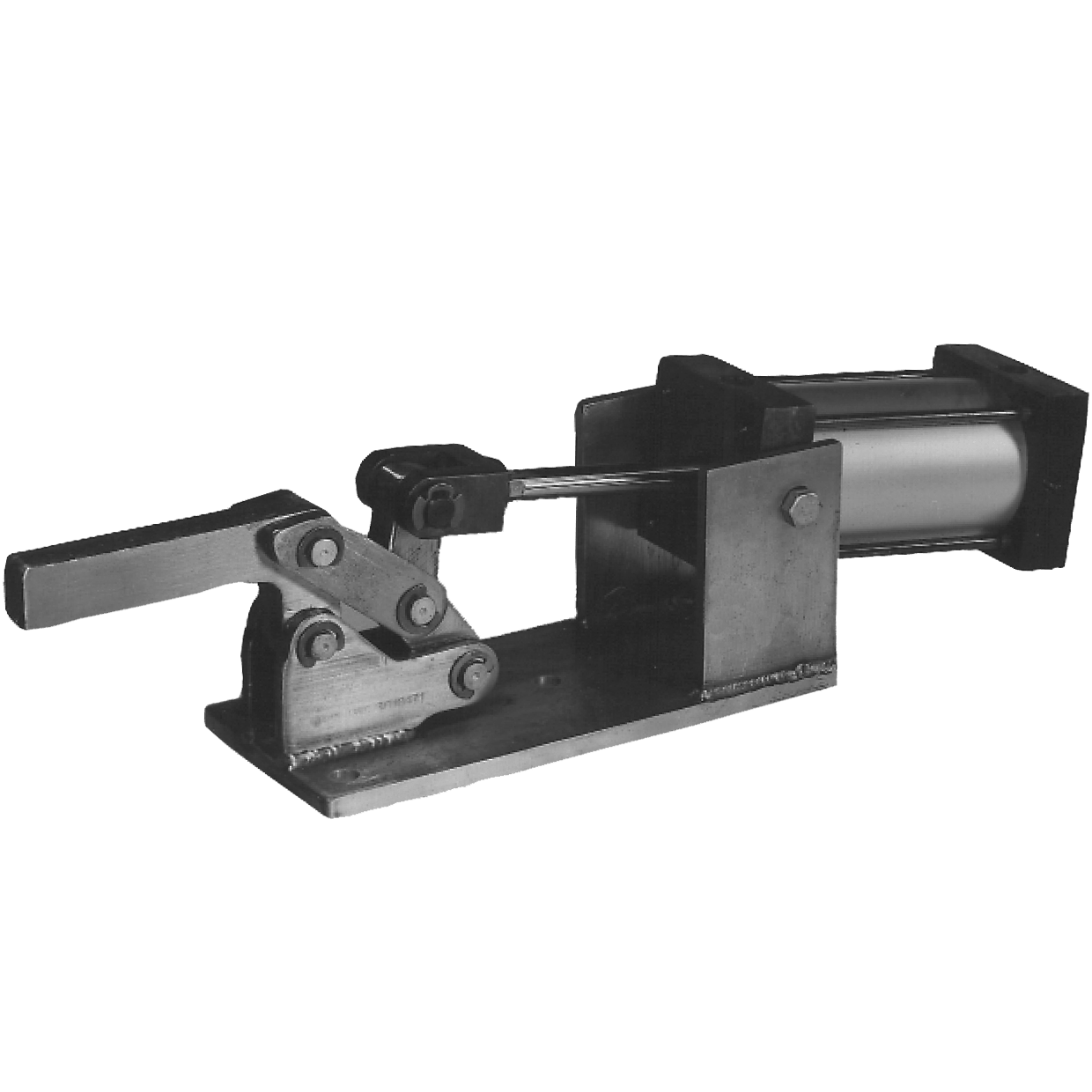

Heavy-duty air clamp with a solid steel clamping arm. Similar to a vertical-handle toggle clamp, except operated by an air cylinder instead of by hand. Toggle linkage provides high holding capacity and insures positive mechanical locking even if air pressure fails. Clamping arm opens 83°. Solid arm can be tapped to accept a spindle, or otherwise modified. 5000 lbs holding capacity.

This clamp is operated by a 2-1/2"-bore double-acting air cylinder, with Buna-N seals for -20° to +200°F operating temperature. Two 1/4-NPT ports. 100-psi maximum input air pressure exerts 1600 lbs maximum clamping force at center of arm.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Handle, Clamping arm, side plates, links and base plate	Mild steel	-	Black Oxide	✔	✔
Air Cylinder	Steel and aluminum	-	-	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-3000-PTC (5000 lbs)

QUANTITY	PART NO.	DESCRIPTION	HOLDING CAPACITY (lbs)	CLAMPING FORCE AT 100 PSI AT CENTER OF ARM (lbs)	SHIPPING WEIGHT (lbs)
	CL-3000-PTC	Solid Arm	5000	1600	15

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
