CL-1000-PTC Series (500 lbs)

Toggle Clamps

Save to My Project

What is this?

Product Information

CL-1000-PTC

Open Arm

Popular medium-size air clamp. Similar to a wide-opening vertical-handle toggle clamp, except operated by an air cylinder instead of by hand. Toggle linkage provides high holding capacity and insures positive mechanical locking even if air pressure fails. Clamping arm opens 92°. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. 500 lbs holding capacity. Made in USA.

This clamp is operated by a 1-1/4"-bore double-acting air cylinder, with Buna-N seals for -20° to +200°F operating temperature. Two 1/8-NPT ports. 100-psi maximum input air pressure exerts 390 lbs maximum clamping force at center of arm.

Models Available

CL-1000-PTC

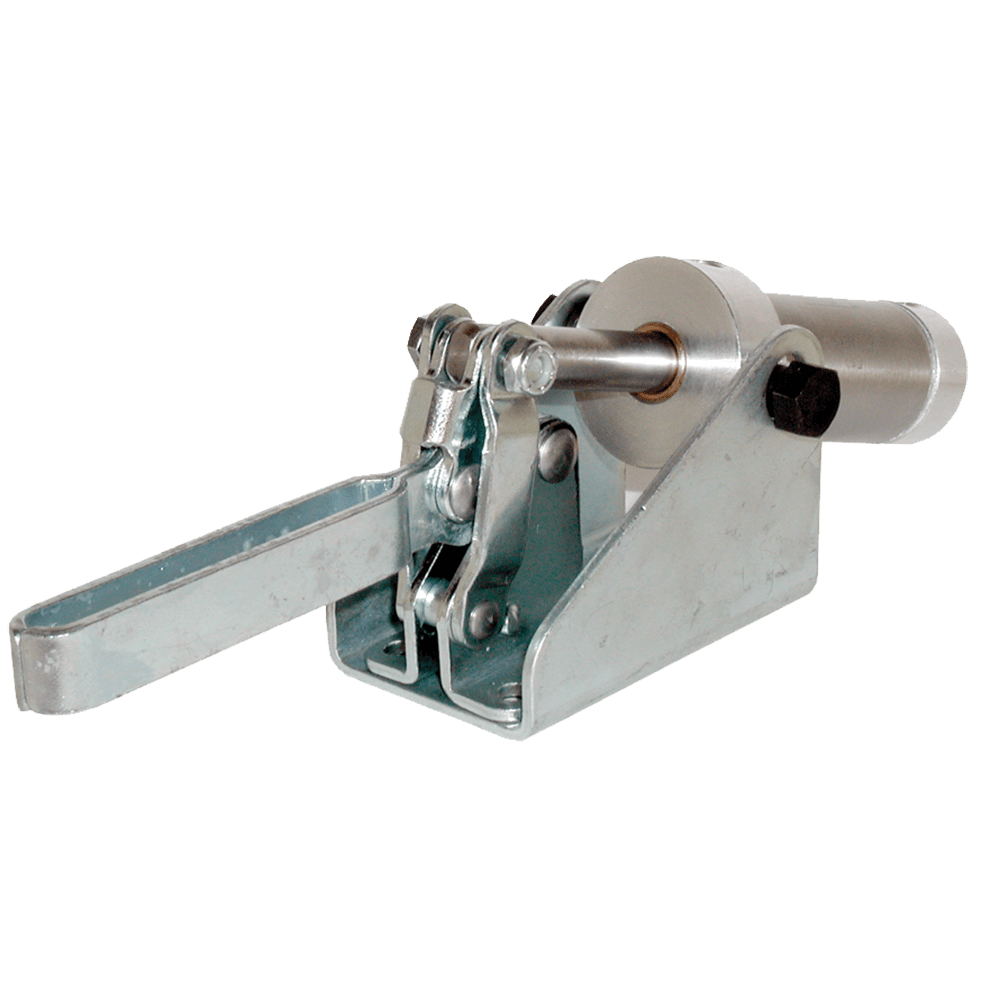

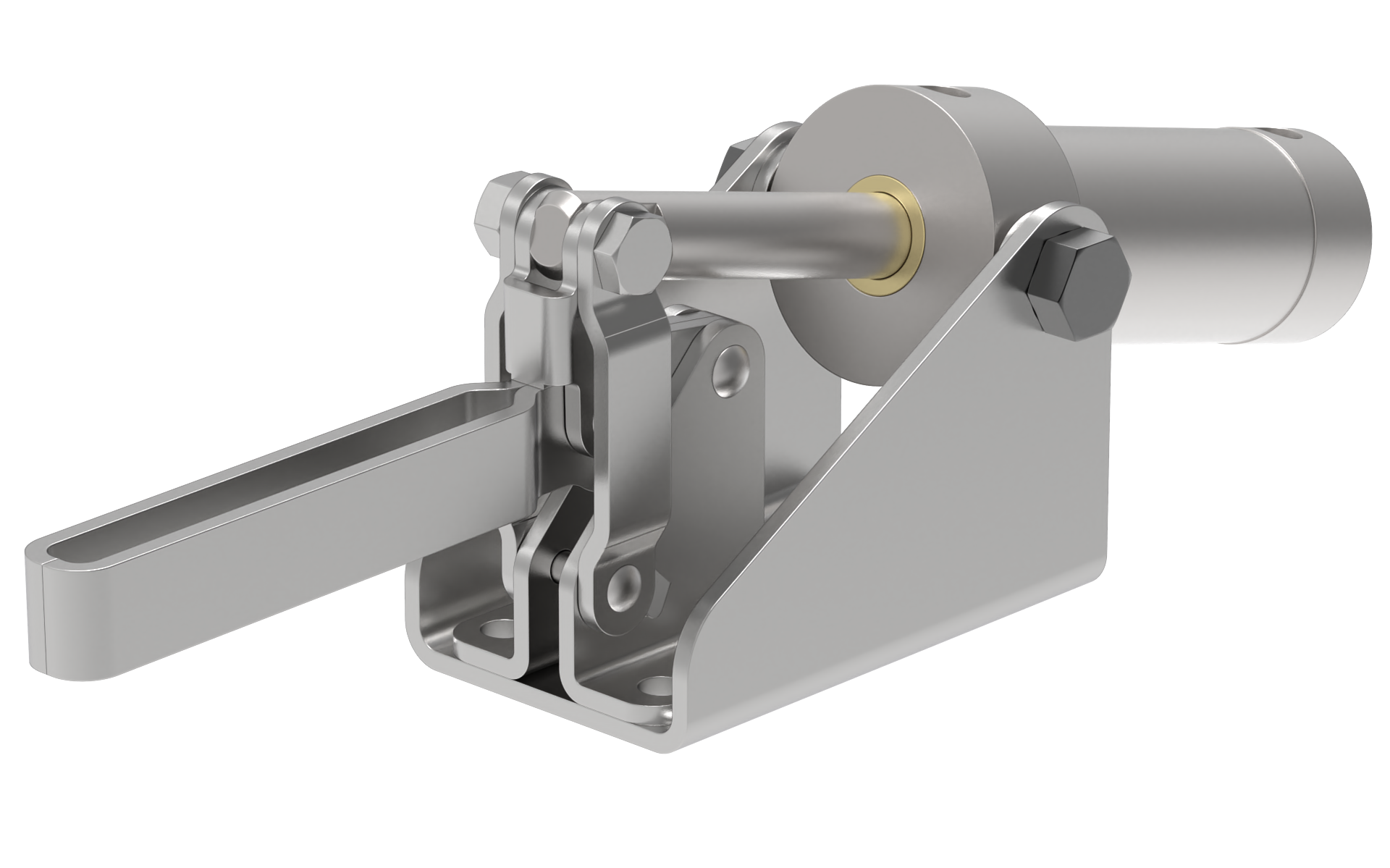

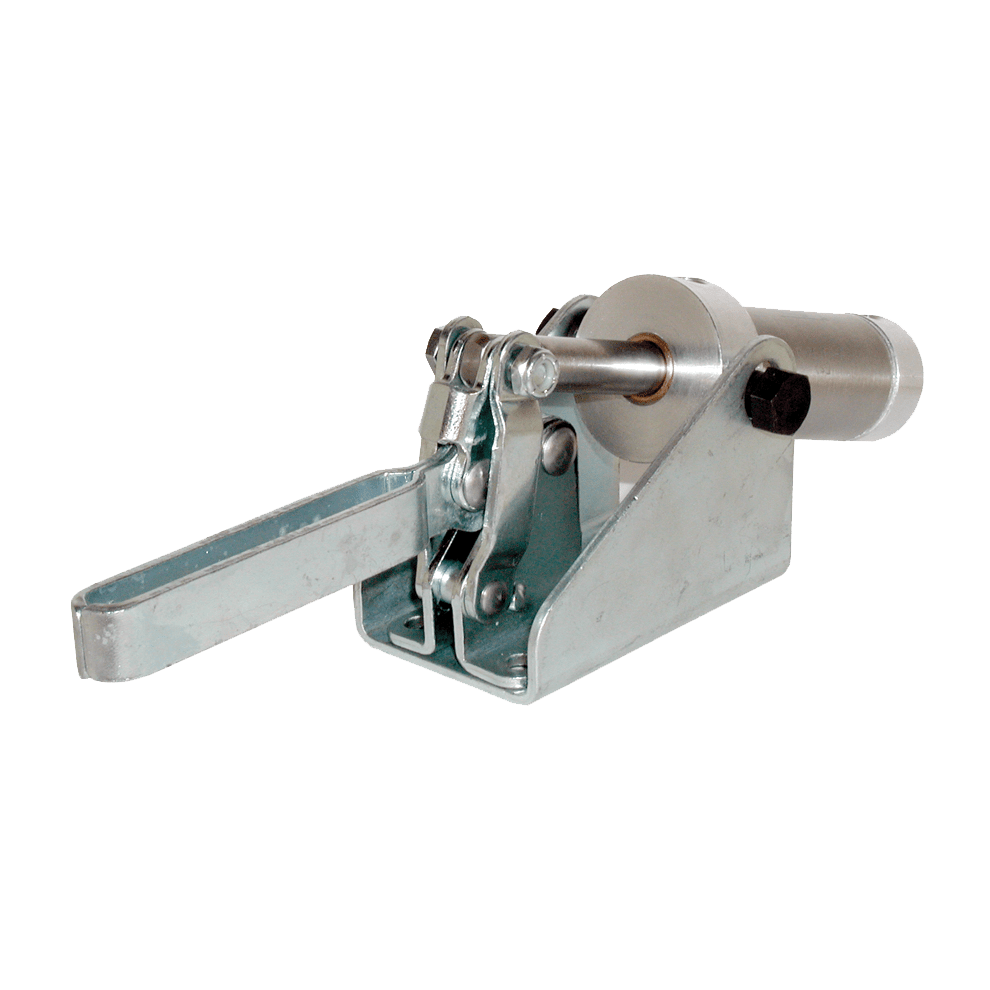

Open Arm

CL-1001-PTC

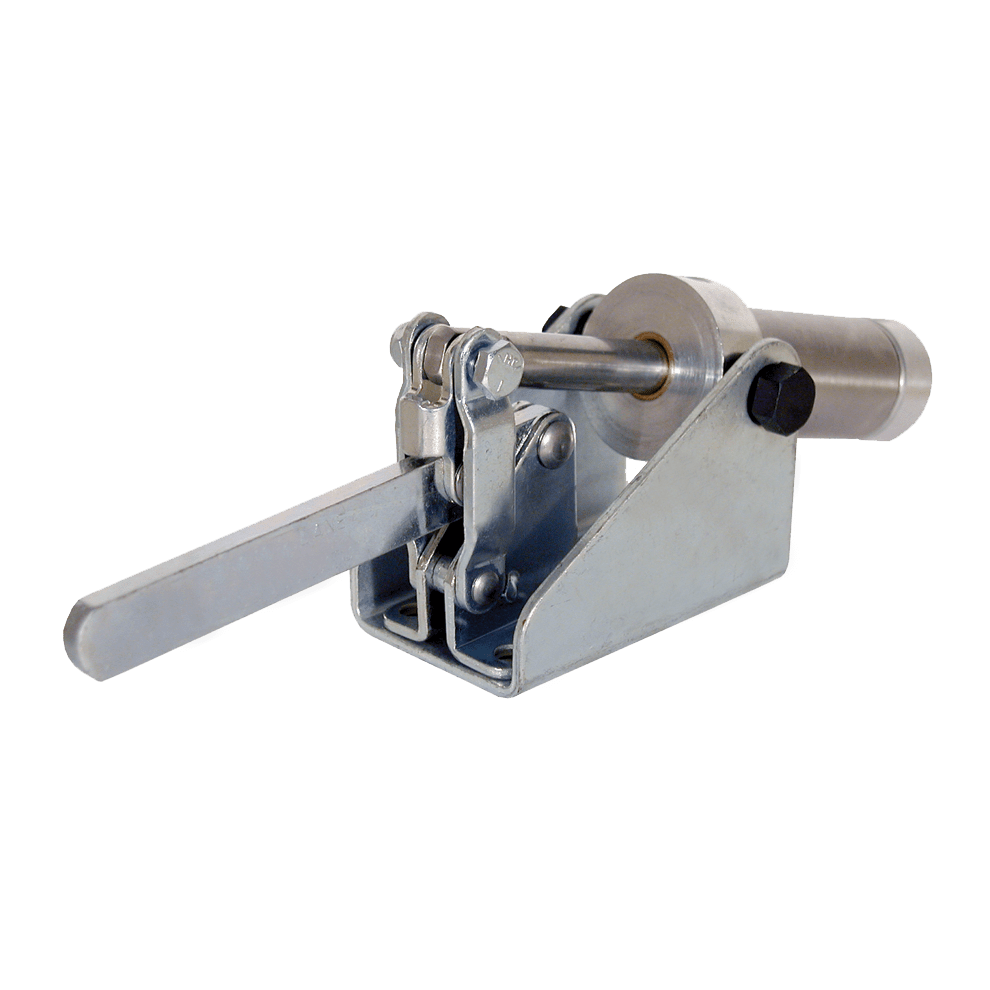

Solid Arm

Optional Position Sensing

CL-1000-PTC-MP

Open Arm, with Position Sensing

CL-1001-PTC-MP

Solid Arm, with Position Sensing

These clamps are optionally available with position-sensing capability, incorporating a special air cylinder with a magnetic piston ring. This allows monitoring cylinder position with either a Hall-effect switch or reed switch. Order Hall-effect or reed switch separately (see Related Products below).

Accessories

Open-arm version accepts any 5/16-18 or M8 short spindle and (2) CL-51610-TW flanged washers. Solid-arm version accepts any 5/16-18 short spindle and CL-518000-BR bolt retainer. Order all accessories separately (see Related Products below).

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamp Body	1008, 1010, and/or 1018 steel	-	Zinc Plated Clear Chromate	✔	✔
Air Cylinder	Steel and aluminum	-	-	✔	✔
Rivets	400-Series Stainless	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

CL-1000-PTC Series (500 lbs)

PART NO.	DESCRIPTION	HOLDING CAPACITY (lbs)	CLAMPING FORCE AT 100 PSI AT CENTER OF ARM (lbs)	SHIPPING WEIGHT (lbs)
CL-1000-PTC	Open Arm	500	390	3.0
CL-1001-PTC	Solid Arm	500	390	3.0
CL-1000-PTC-MP	Open Arm, Position Sensing	500	390	3.0
CL-1001-PTC-MP	Solid Arm, Position Sensing	500	390	3.0
