Hall-Effect Switches Part # CL-1000-NPN-144 Carr Lane Mfg.®

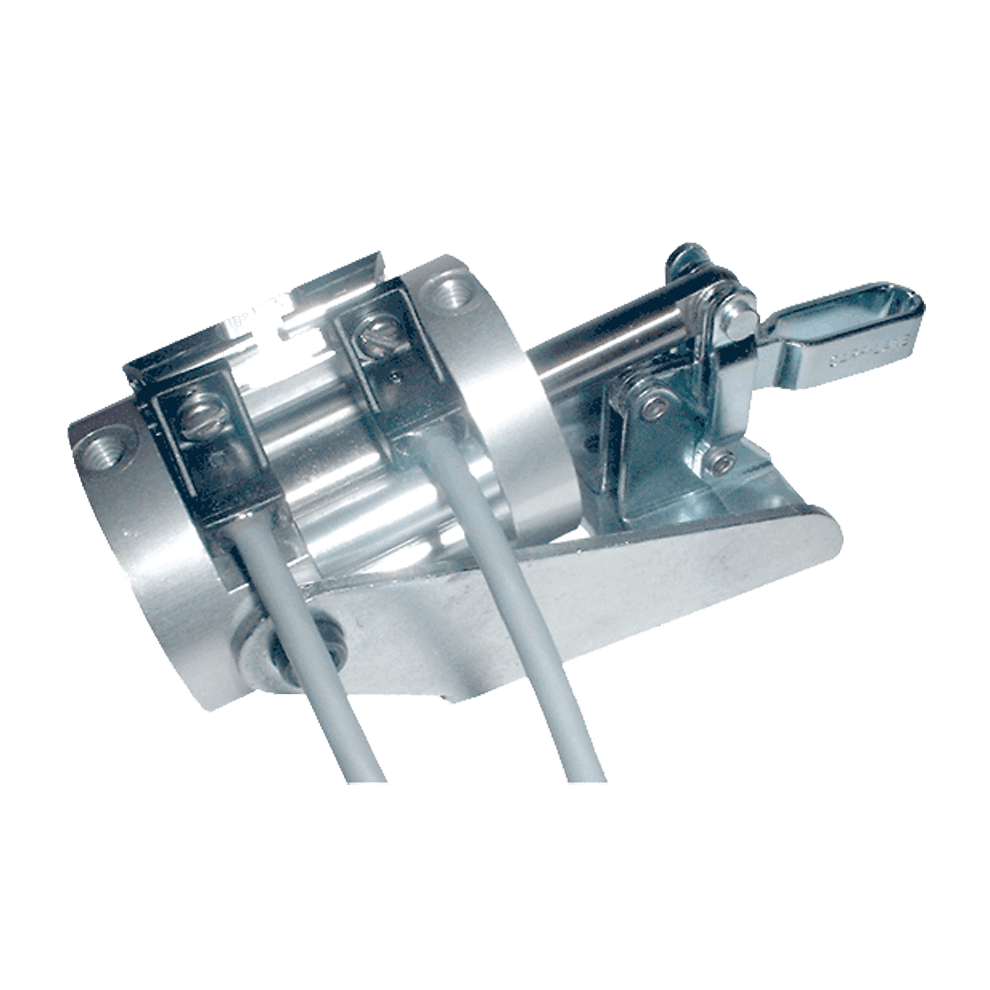

Air-Powered Toggle Clamp with (2) Hall-Effect Switches Installed

Hall-Effect Switches are used with magnetic-piston cylinders for position sensing. These switches are actuated by a magnetic ring installed on the cylinder's piston. As the magnetic ring passes under the switch, the switch's contacts close to provide an electrical signal. Hall-Effect Switches are 3-wire, solid-state devices that are recommended for low current DC loads, such as when interfacing with a programmable controller.

Hall-Effect Switches are available in three sizes, to fit our entire range of Air-Powered Toggle Clamps. The smallest clamps require one double switch that senses both clamped and unclamped positions. These double switches are available in sourcing (PNP) output type.

Larger Air-Powered Toggle Clamps require two single switches, one to sense clamped position and another to sense unclamped position. These single switches are available in either sourcing (PNP) output type or sinking (NPN) output type.

Technical Information

Sourcing (PNP) Configuration :

Sourcing (PNP) switches are applied to the positive side of a load. When the switch is actuated, power is connected, completing the circuit.

Sinking (NPN) Configuration:
Sinking (NPN) switches are applied to the negative side of a load. When the switch is actuated, the negative (ground) is connected, completing the circuit.

Hall-Effect Switches

Double Switch – Sourcing PNP Output Type (One Required)

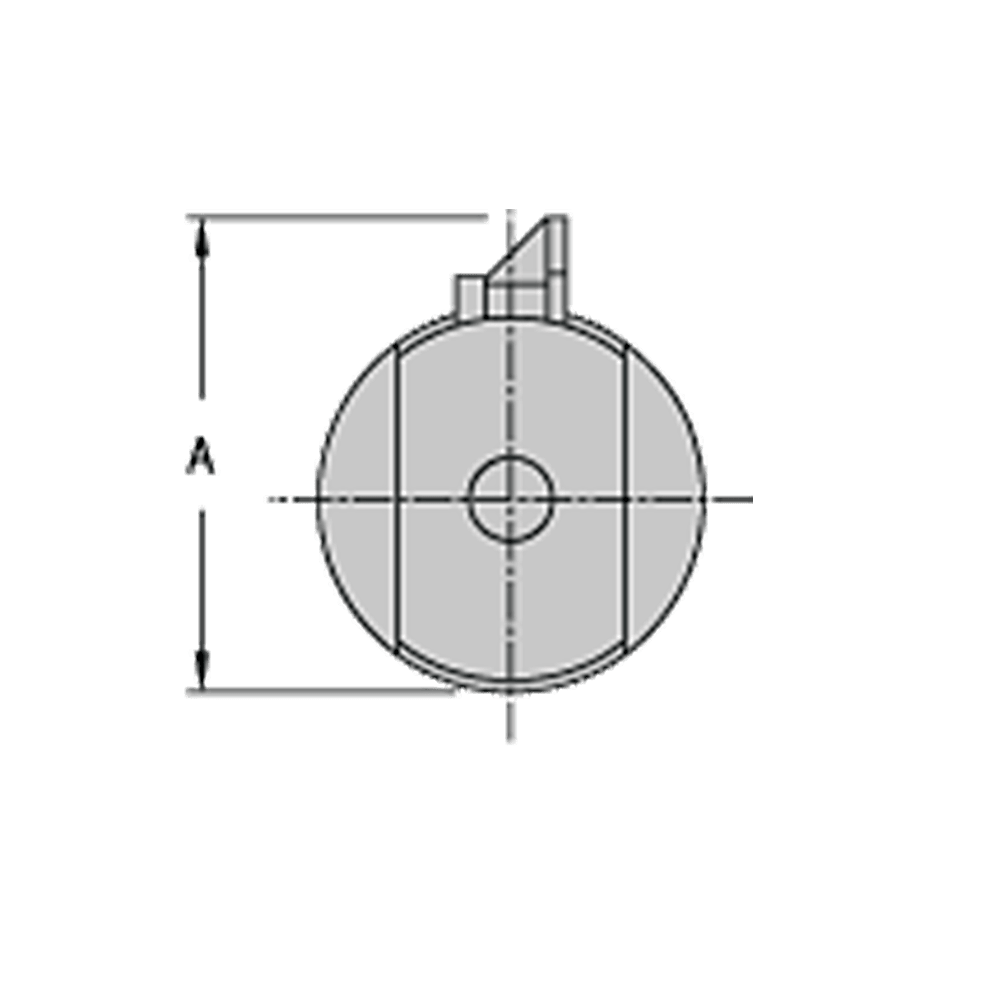

QUANTITY	PART NO.	FITS CLAMPS	A	CONTACT FUNCTION	CURRENT RATING (INPUT)	CURRENT RATING (OUTPUT)	SWITCHING VOLTAGE	SWITCHING SPEED (ON)	SWITCHING SPEED (OFF)	OPERATING TEMPERATURE	VOLTAGE DROP	LENGTH OF WIRE LEADS
	CL-400-PNPD-60	CL-400-PTC-MPD CL-600-PPC-MPD	1.14	NORMALLY OPEN	15 mA	100 mA	12 - 30 VOLTS DC	2.0 MICROSECONDS	1.0 MICROSECONDS	-5°F TO 165°F	2.2 VOLTS MAX	60"

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Single Switches – Sourcing PNP Output Type (Two Required)

QUANTITY	PART NO.	FITS CLAMPS	A	CONTACT FUNCTION	CURRENT RATING (INPUT)	CURRENT RATING (OUTPUT)	SWITCHING VOLTAGE	SWITCHING SPEED (ON)	SWITCHING SPEED (OFF)	OPERATING TEMPERATURE	VOLTAGE DROP	LENGTH OF WIRE LEADS
	CL-1000-PNP-144	CL-500-PTC-MP CL-1000-PTC-MP CL-1001-PTC-MP CL-1500-PPC-MP	2.06	NORMALLY OPEN	24 mA MAX	300 mA MAX	5-30 VOLTS DC	2.0 MICROSECONDS	1.0 MICROSECONDS	-20ºF TO 160ºF	1.5 VOLTS MAX	144"
	CL-2000-PNP-144	CL-2000-PTC-MP CL-2001-PTC-MP	2.56	NORMALLY OPEN	24 mA MAX	300 mA MAX	5-30 VOLTS DC	2.0 MICROSECONDS	1.0 MICROSECONDS	-20ºF TO 160ºF	1.5 VOLTS MAX	144"

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Single Switches – Sinking NPN Output Type (Two Required)

QUANTITY	PART NO.	FITS CLAMPS	A	CONTACT FUNCTION	CURRENT RATING (INPUT)	CURRENT RATING (OUTPUT)	SWITCHING VOLTAGE	SWITCHING SPEED (ON)	SWITCHING SPEED (OFF)	OPERATING TEMPERATURE	VOLTAGE DROP	LENGTH OF WIRE LEADS
	CL-1000-NPN-144	CL-500-PTC-MP CL-1000-PTC-MP CL-1001-PTC-MP CL-1500-PPC-MP	2.06	NORMALLY OPEN	24 mA MAX	300 mA MAX	5-30 VOLTS DC	2.0 MICROSECONDS	1.0 MICROSECONDS	-20ºF TO 160ºF	.4 VOLTS MAX	144"
	CL-2000-NPN-144	CL-2000-PTC-MP CL-2001-PTC-MP	2.56	NORMALLY OPEN	24 mA MAX	300 mA MAX	5-30 VOLTS DC	2.0 MICROSECONDS	1.0 MICROSECONDS	-20ºF TO 160ºF	.4 VOLTS MAX	144"

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
