Adhesive Bonded Studs

Threaded Inserts

Save to My Project

What is this?

Product Information

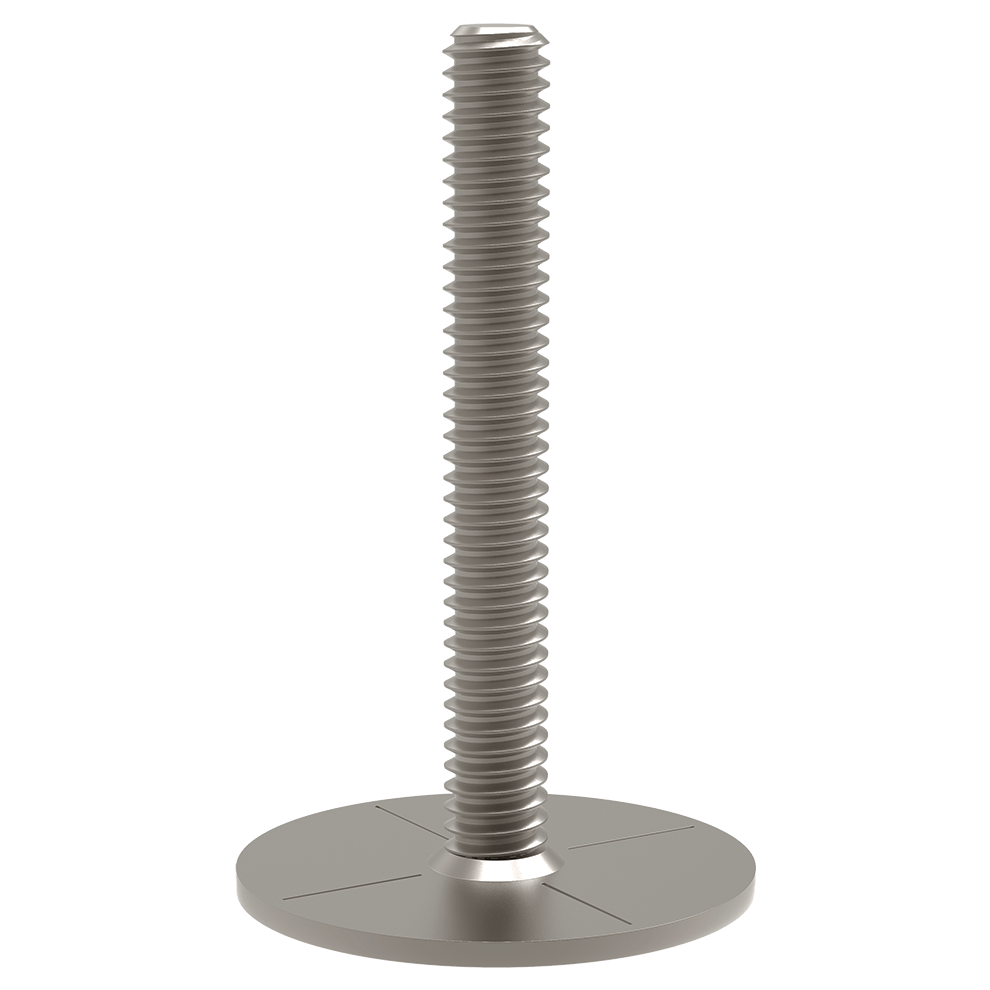

Our Adhesively Bonded Studs are heavy-duty structural parts that provide considerable tensile and shear strength. These studs can be attached to virtually any metal, plastic, or composite surface using our acrylic adhesive. They can be bonded on either surface of the base plate, bottom or top. Made of 304 stainless steel for excellent corrosion resistance. The largest two sizes are inertial (friction) welded to a 2” base plate, creating a very strong part with 1,200 lbs tensile strength and 1,500 lbs shear strength.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

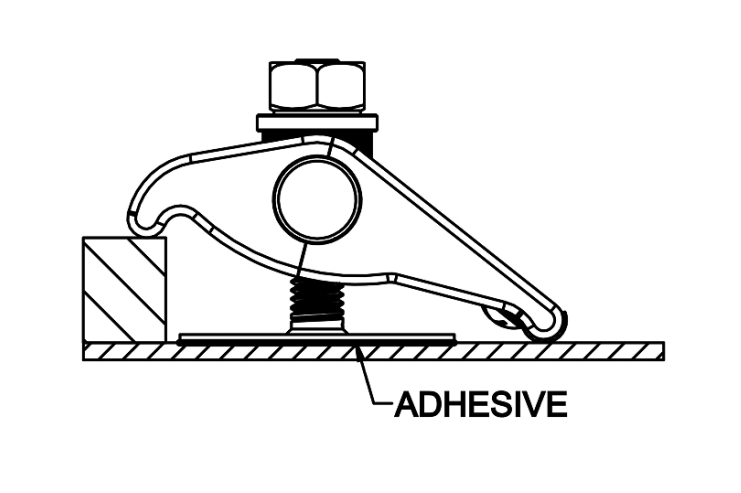

Adhesively Bonded Studs are ideal in any application where welding is not possible or threading/tapping a hole is less than ideal. This includes thin wall material and non-metal materials.

Material

MATERIAL	HEAT TREAT	FINISH
304 Stainless Steel	-	Passivated

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Adhesive Bonded Studs

Part Number	A Thread	B	C Dia	Tensile Strength (Lbs)	Shear Strength (Lbs)
CL-1024-ABS-1.00-S	#10-24	1	1-1/4	500	650
CL-1420-ABS-1.50-S	1/4-20	1-1/2	1-1/4	500	650
CL-51618-ABS-1.50-S	5/16-18	1-1/2	2	1200	1500
CL-3816-ABS-2.00-S	3/8-16	2	2	1200	1500
