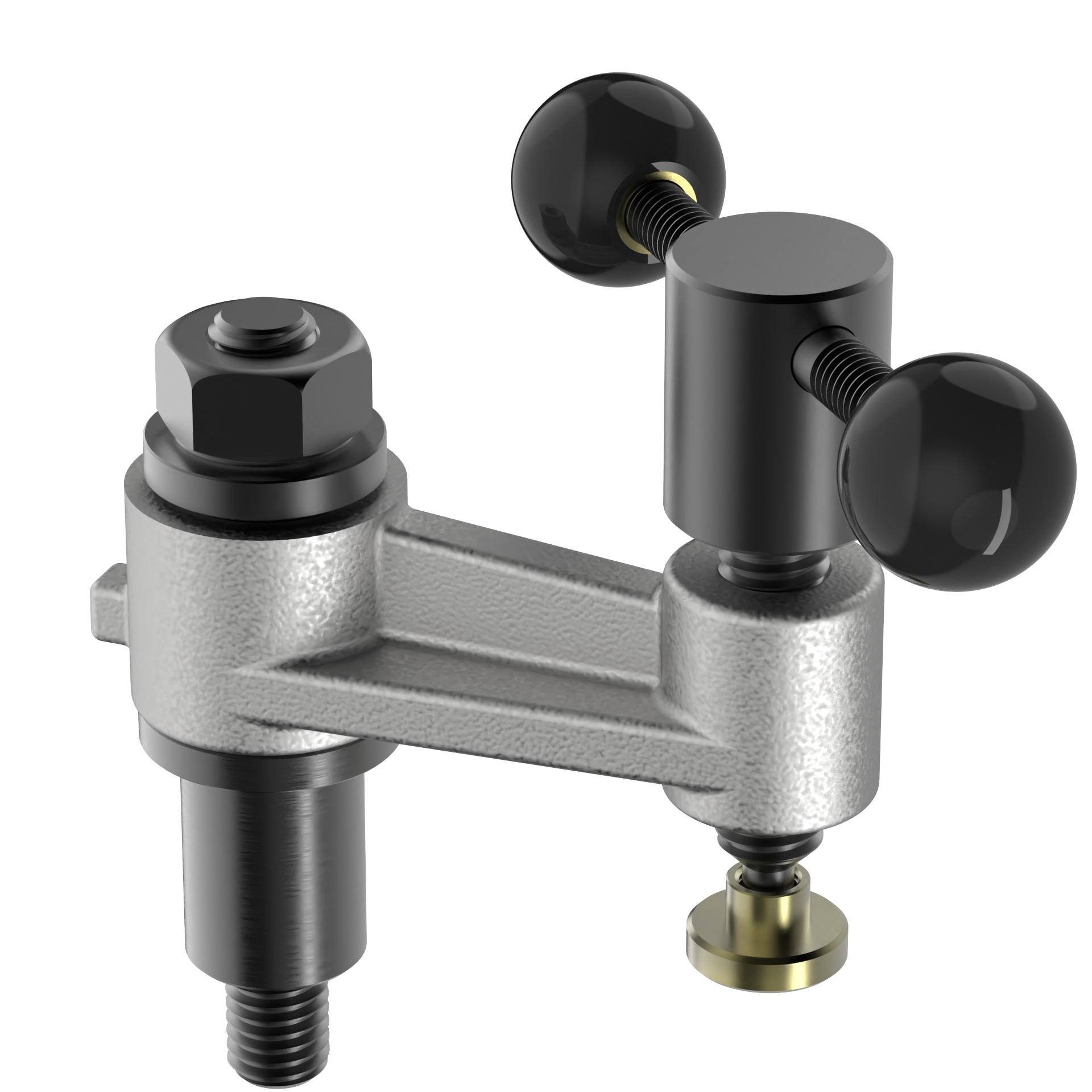

Swing Clamp Assemblies (Post Mounted, Ball Handle) Part # CL-4-SWA-2 Carr Lane Mfg.®

Long-reach swing clamp that can be hand tightened for medium clamping force. This post-mounted version is ideal for tight spaces, with a long mounting post for increased strength. Install in a reamed hole. Available in five sizes, with inch or metric post diameter. Made in USA.

Application Information

Swivel Foot

Diagram showcasing the application of Swing Clamp Assemblies Post Mounted Ball Handle

Swing Clamp Assemblies use our patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental back out during use. Delrin® feet are optional. To order with a Delrin® foot, add "N" to the part number, e.g. CL-1-SWA-1N. Note: Delrin® feet are not threaded – they snap on and off. For other foot types, see Feet for Swivel Screws (order separately).

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Swing Arm	Nodular iron per ASTM A536 grade 65-45-12	-	Zinc Plated Clear Chromate	✔	✔
Post and Flange Base	Mild Steel	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other components, See catalog information for each specific item

Swing Clamp Assemblies (Post Mounted, Ball Handle)

Inch

QUANTITY	PART NO.	D THREAD SIZE	A	B	C DIA NOMINAL	C DIA ACTUAL	E	F	G	H DIA	J	K	L	N	Q THREAD	S	U DIA	V DIA	W	X	Y	Z
	CL-1-SWA-2	5/16-18	1-1/2	.80	9/16	.563	.87	3/4	2.40	1/2	2-31/32	5/32	7/16	.80	5/16-18	.16	11/16	15/16	3/4	3/4	.07	.80
	CL-4-SWA-2	1/2-13	2	1.18	7/8	.875	.97	1-1/8	3.22	3/4	3-19/32	3/16	3/4	1.18	1/2-13	.19	1	1-5/16	1-1/8	1	.10	.67
	CL-5-SWA-2	1/2-13	2-1/2	1.18	7/8	.875	.97	1-1/8	3.22	3/4	3-19/32	3/16	3/4	1.18	1/2-13	.19	1	1-5/16	1-1/8	1	.10	.67
	CL-2-SWA-2	5/8-11	3	1.55	1-1/8	1.125	1.85	1-5/16	4.5	15/16	4-5/16	7/32	7/8	1.55	5/8-11	.22	1-5/16	1-3/4	1-1/2	1-3/8	.13	.74
	CL-3-SWA-2	5/8-11	4	1.55	1-1/8	1.125	1.85	1-5/16	4.5	15/16	4-5/16	7/32	7/8	1.55	5/8-11	.22	1-5/16	1-3/4	1-1/2	1-3/8	.13	.74

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

QUANTITY	PART NO.	D THREAD SIZE	THREAD PITCH (mm)	A (mm)	B (mm)	C DIA (mm)	E (mm)	F (mm)	G (mm)	H DIA (mm)	J (mm)	K (mm)	L (mm)	N (mm)	Q THREAD	S (mm)	U DIA (mm)	V DIA (mm)	W (mm)	X (mm)	Y (mm)	Z (mm)
	CLM-1-SWA-2	M8	1.25	38	20.5	14	22	19	61	12.5	75	4	10	20.5	5/16-18	4	17.5	24	19	19	1.5	24
	CLM-4-SWA-2	M12	1.75	51	30	22	24.5	28.5	82	19	91	5	17	30	1/2-13	5	25.5	33.5	28.5	25.5	3	25.5
	CLM-5-SWA-2	M12	1.75	63.5	30	22	24.5	28.5	82	19	91	5	17	30	1/2-13	5	25.5	33.5	28.5	25.5	3	25.5
	CLM-2-SWA-2	M16	2	76	39.5	28	47	33.5	114.5	23.5	109	5.5	21	39.5	5/8-11	5.5	33.5	44.5	38	35	2.5	17
	CLM-3-SWA-2	M16	2	101.5	39.5	28	47	33.5	114.5	23.5	109	5.5	21	39.5	5/8-11	5.5	33.5	44.5	38	35	2.5	17
