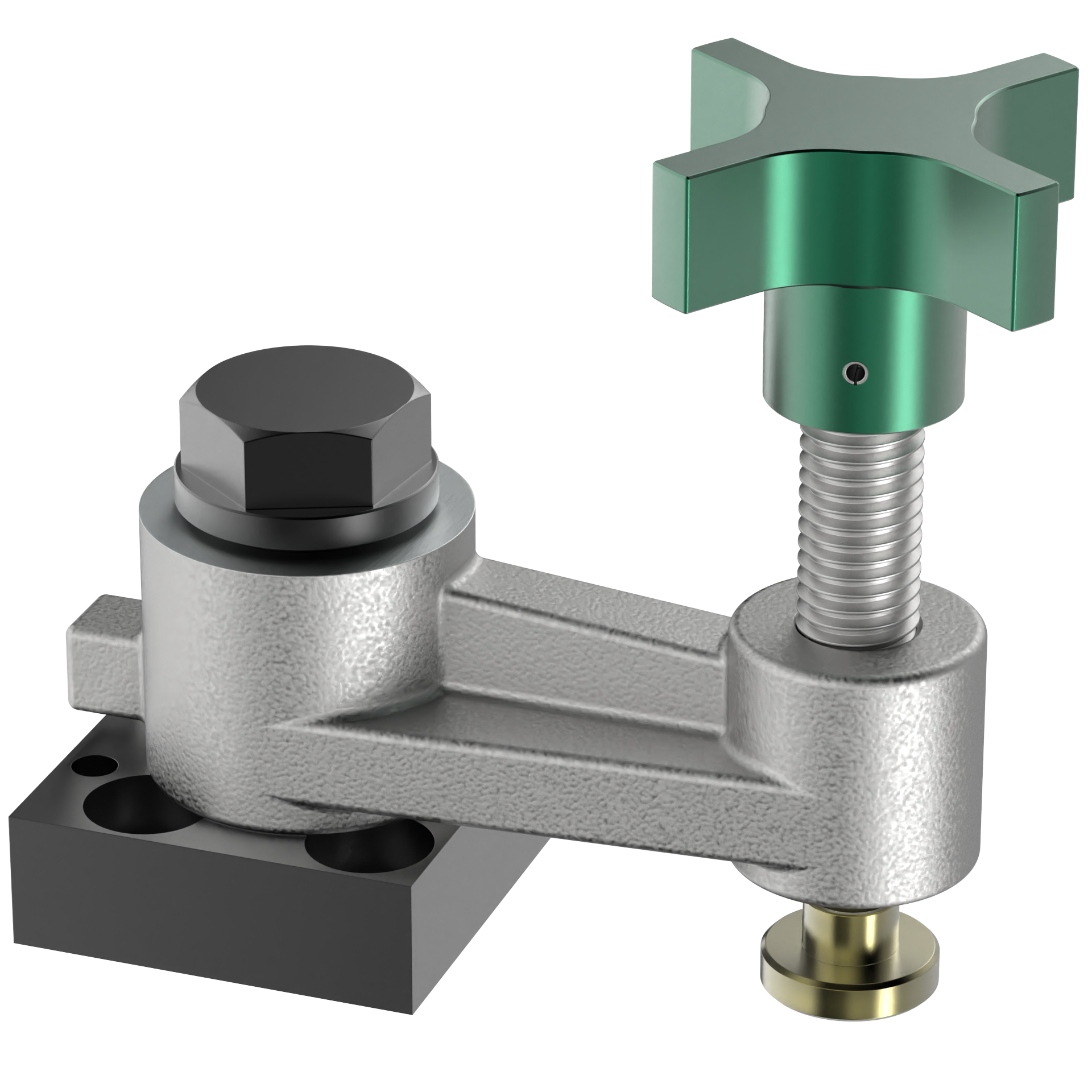

Swing Clamp Assemblies (Flange Mounted, Knob Handle) Part # CL-3-SWA-3 Carr Lane Mfg.®

Long-reach swing clamp that can be hand tightened for medium clamping force. This flange-mounted version is ideal for mounting on flat surfaces. The stop pin furnished can be installed on either side for clockwise or counterclockwise swing. Available in five sizes. Made in USA.

Application Information

Swivel Foot

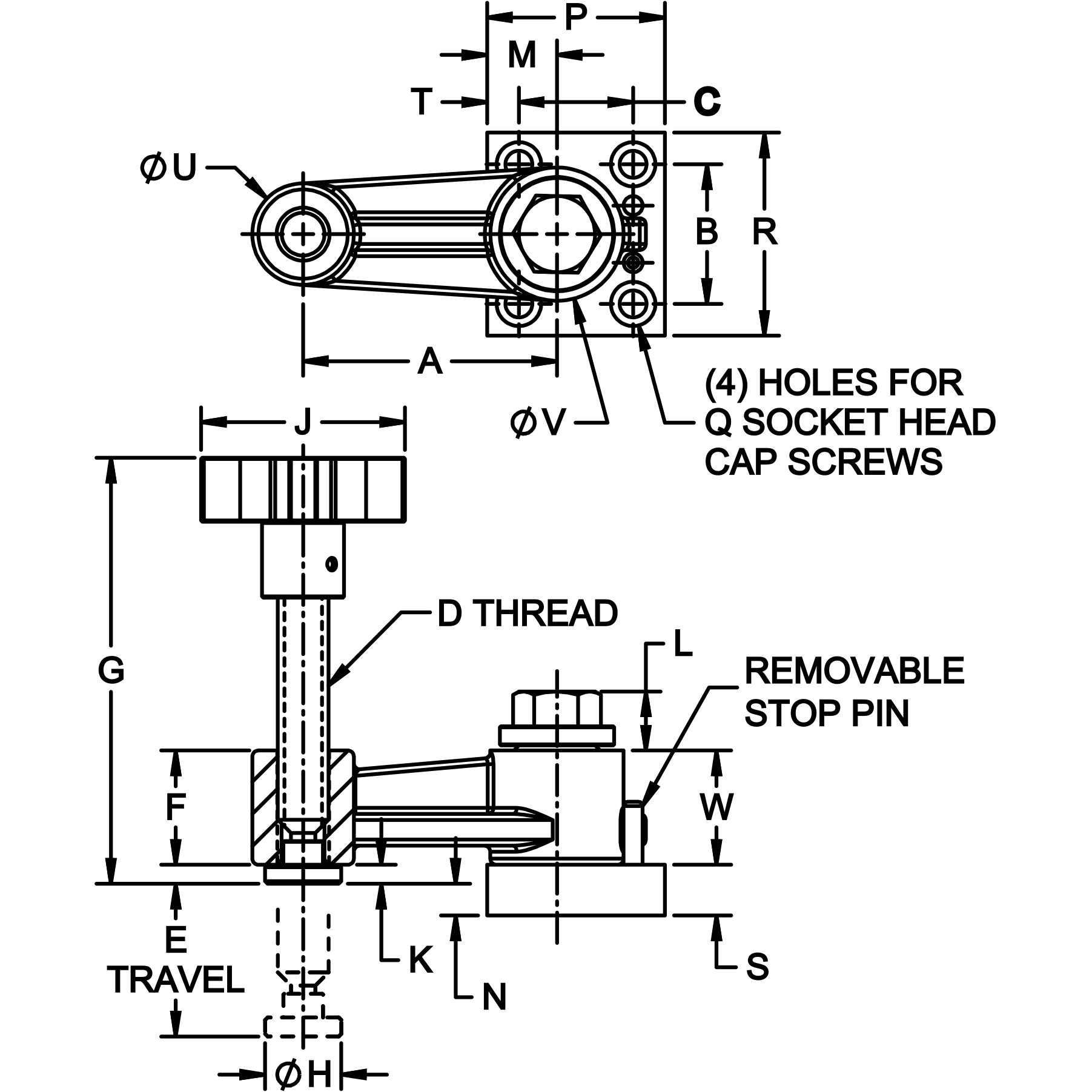

Diagram showcasing the application of Swing Clamp Assemblies Flange Mounted Knob Handle

Swing Clamp Assemblies use our patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental black out during use. Delrin® feet are optional. To order with a Delrin® foot, add "N" to the part number, e.g. CL-1-SWA-3N. Note: Delrin® feet are not threaded – they snap on and off. For other foot types, see Feet for Swivel Screws (order separately).

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Swing Arm	Nodular iron per ASTM A536 grade 65-45-12	-	Zinc Plated Clear Chromate	✔	✔
Post and Flange Base	Mild Steel	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other components, See catalog information for each specific item
