Riser Cylinders

Swing Clamps

Save to My Project

What is this?

Product Information

Riser Cylinders Part # CL-MF40-5203 Carr Lane Mfg.®

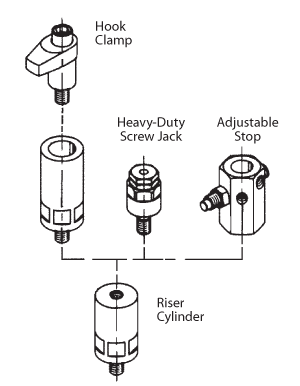

Stackable riser that provides additional height without taking up much space. Especially useful for mounting Hook Clamps, Heavy-Duty Screw Jacks, and Adjustable Side Stops. Integral mounting screw allows tightening by turning the body with a hex wrench. Available in three sizes, with 5/16", 1/2", and 5/8" mounting screws, each in several heights.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1045 Steel	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Riser Cylinders

Inch

PART NO.	MODULAR SYSTEM SIZE	E THREAD SIZE	A	B	C DIA	D
CL-MF25-5201	MINI	5/16-18	1-1/4	7/8	1	2
CL-MF25-5202	MINI	5/16-18	1-1/2	7/8	1	2-1/4
CL-MF25-5203	MINI	5/16-18	2	7/8	1	2-3/4
CL-MF40-5201	STANDARD	1/2-13	2	1-7/16	1-9/16	3-1/4
CL-MF40-5203	STANDARD	1/2-13	3-1/8	1-7/16	1-9/16	4-3/8
CL-MF40-5204	STANDARD	1/2-13	4	1-7/16	1-9/16	5-1/4
CL-MF50-5201	HEAVY	5/8-11	2	1-13/16	2	3-1/4
CL-MF50-5203	HEAVY	5/8-11	3-1/8	1-13/16	2	4-3/8
CL-MF50-5204	HEAVY	5/8-11	4	1-13/16	2	5-1/4
