One-Touch Quick-Acting Swing Clamps (Horizontal Cam Lever)

Swing Clamps

Product Information

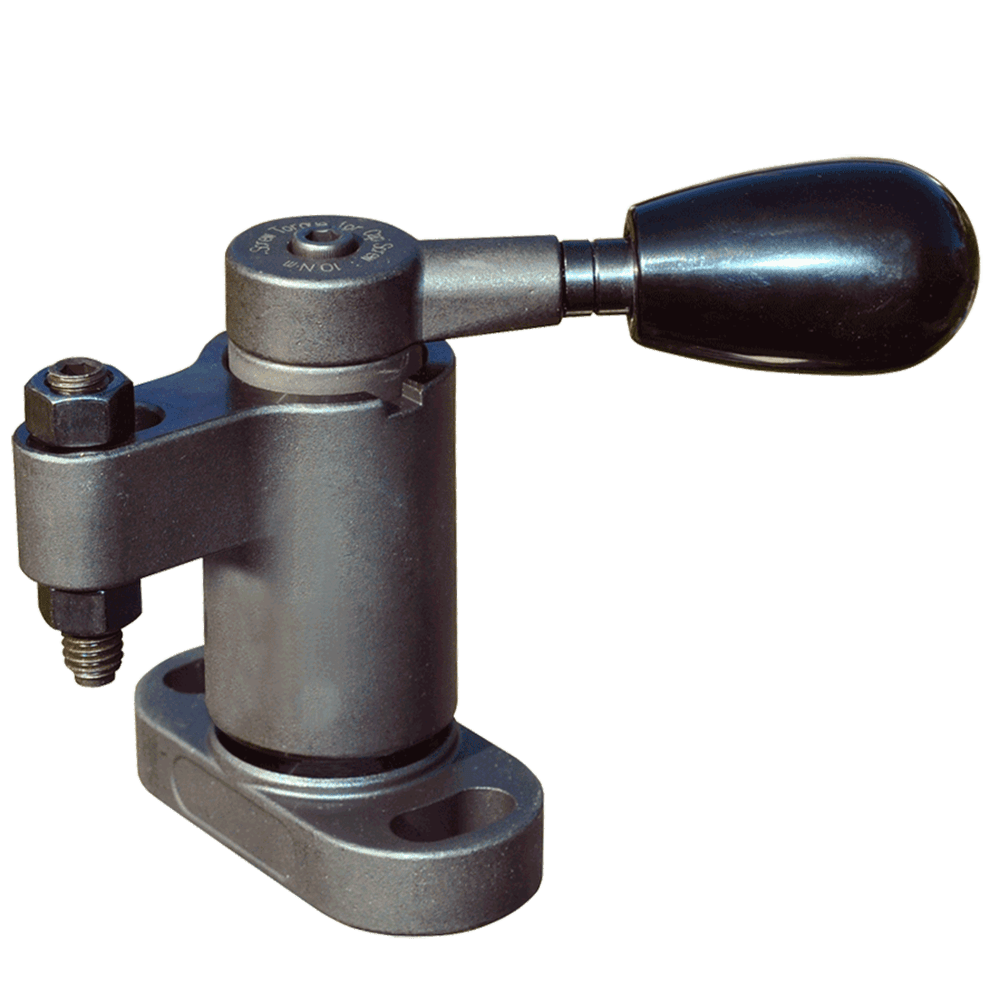

One-Touch Quick-Acting Swing Clamps (Horizontal Cam Lever) Part # CL-300-QSCR Carr Lane Mfg.®

One-Touch Swing Clamps are manually operated clamps that first rotate exactly 70° clockwise into position then clamp straight down in one continuous motion. The version shown here is operated by a radial cam lever that swings in a horizontal arc. Available in four clamp sizes, with the following maximum clamping forces that can be applied with the lever:

250 Lbs

400 Lbs

500 Lbs

800 Lbs

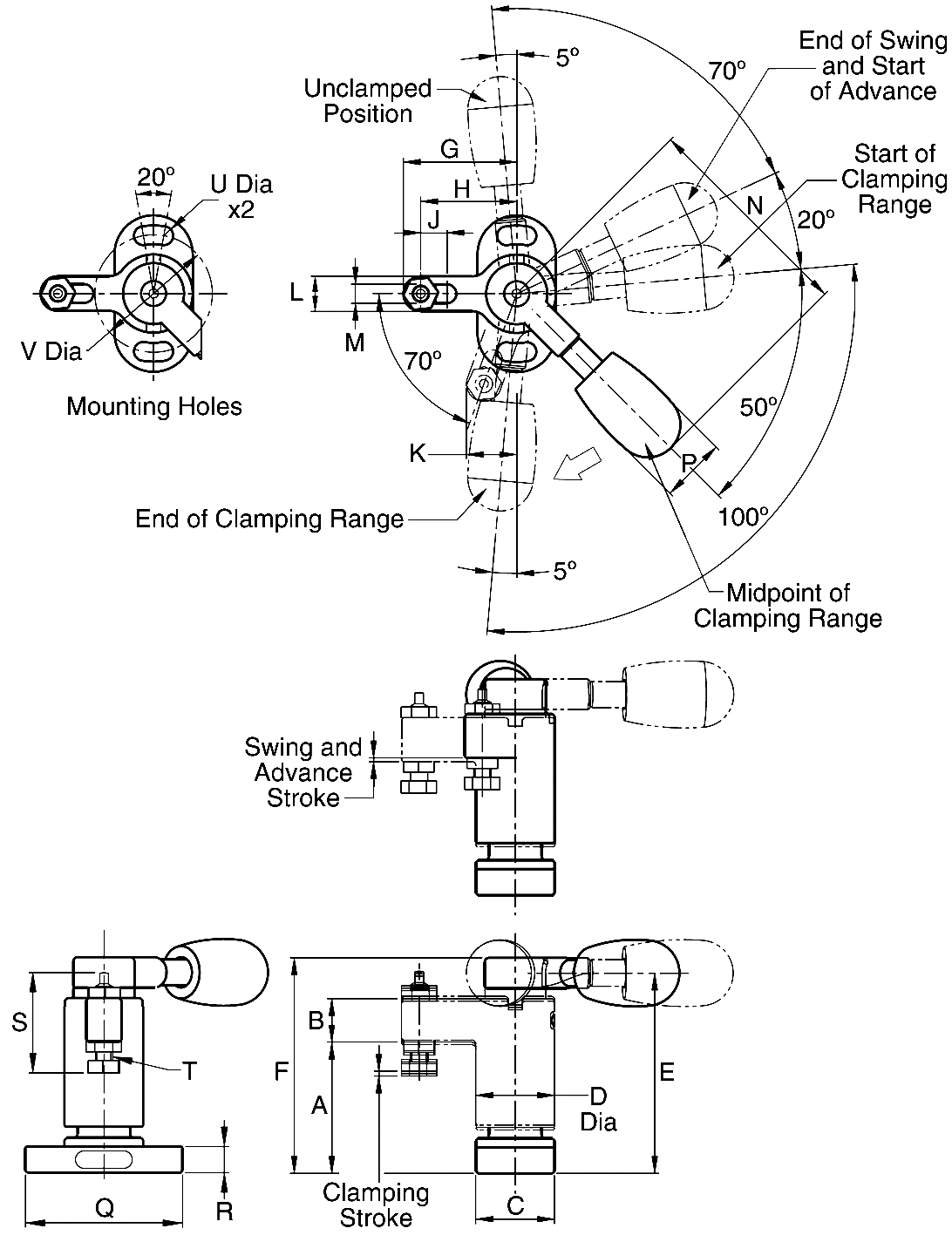

Operation

Diagram showcasing the application of One Touch Quick Acting Swing Clamps Horizontal Cam Lever

Starting position, with clamping arm swung away for loading.

Turn lever (70º) to rotate the arm into clamping position.

Continue turning lever (through 90º) to advance the arm toward the workpiece.

Continue turning lever (90º to 190º) until full clamping force is applied.

Starting with the clamping arm swung away for loading, turn the lever to rotate the arm into clamping position and automatically move the arm downward to apply clamping force. A small portion of the total vertical stroke is used to swing, and slightly advance the clamping arm, then the remaining stroke is available as the clamping range. To unclamp, reverse the lever movement to lift the arm straight up and automatically return the arm to its original position for loading.

Mounting

Fasten with two socket-head cap screws using the two mounting slots. To allow for workpiece variation, adjust spindle extension so that full clamping force is achieved approximately in the middle of the lever's 100º clamping range.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	RoHS
Base, Spindle and Lever	1045 Steel	Heat Treated	Black Oxide	✔
Clamping-arm body and spiral-cam shaft	Alloy Steel	Heat Treated	Black Oxide	✔
Knob Handle	Black phenolic plastic	-	-	✔
