Contact-Bolt Extensions

Swing Clamps

Save to My Project

What is this?

Product Information

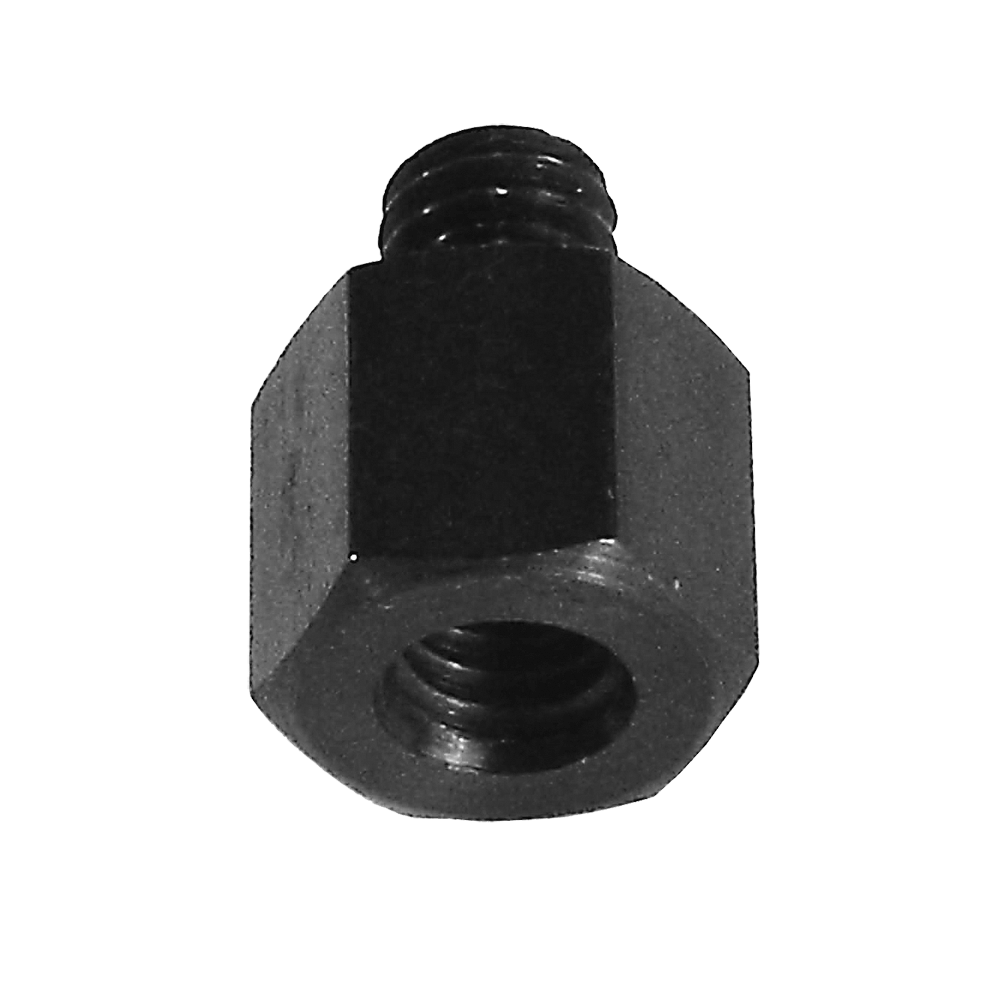

Contact-Bolt Extensions Part # CL-MF40-2601 Carr Lane Mfg.®

Use to extend the reach of Swivel Contact Bolts, and other short contact bolts. Extensions can be stacked to increase length even further. Note: these extensions are not ground for height location. Available in the following thread sizes, each in a choice of three lengths:

5/16-18 (Mini)

1/2-13 (Standard)

5/8-11 (Heavy)

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1215 or 1045 Steel	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Contact-Bolt Extensions

PART NO.	MODULAR SYSTEM SIZE	A	B	C	D THREAD
CL-MF25-2601	MINI	1/2	13/16	9/16	5/16-18
CL-MF25-2602	MINI	3/4	1-1/16	9/16	5/16-18
CL-MF25-2603	MINI	1	1-5/16	9/16	5/16-18
CL-MF40-2601	STANDARD	1-1/4	2	7/8	1/2-13
CL-MF40-2602	STANDARD	2	2-3/4	7/8	1/2-13
CL-MF40-2603	STANDARD	3	3-3/4	7/8	1/2-13
CL-MF50-2601	HEAVY	1-1/4	2-1/4	1-1/16	5/8-11
CL-MF50-2602	HEAVY	2	3	1-1/16	5/8-11
CL-MF50-2603	HEAVY	3	4	1-1/16	5/8-11
