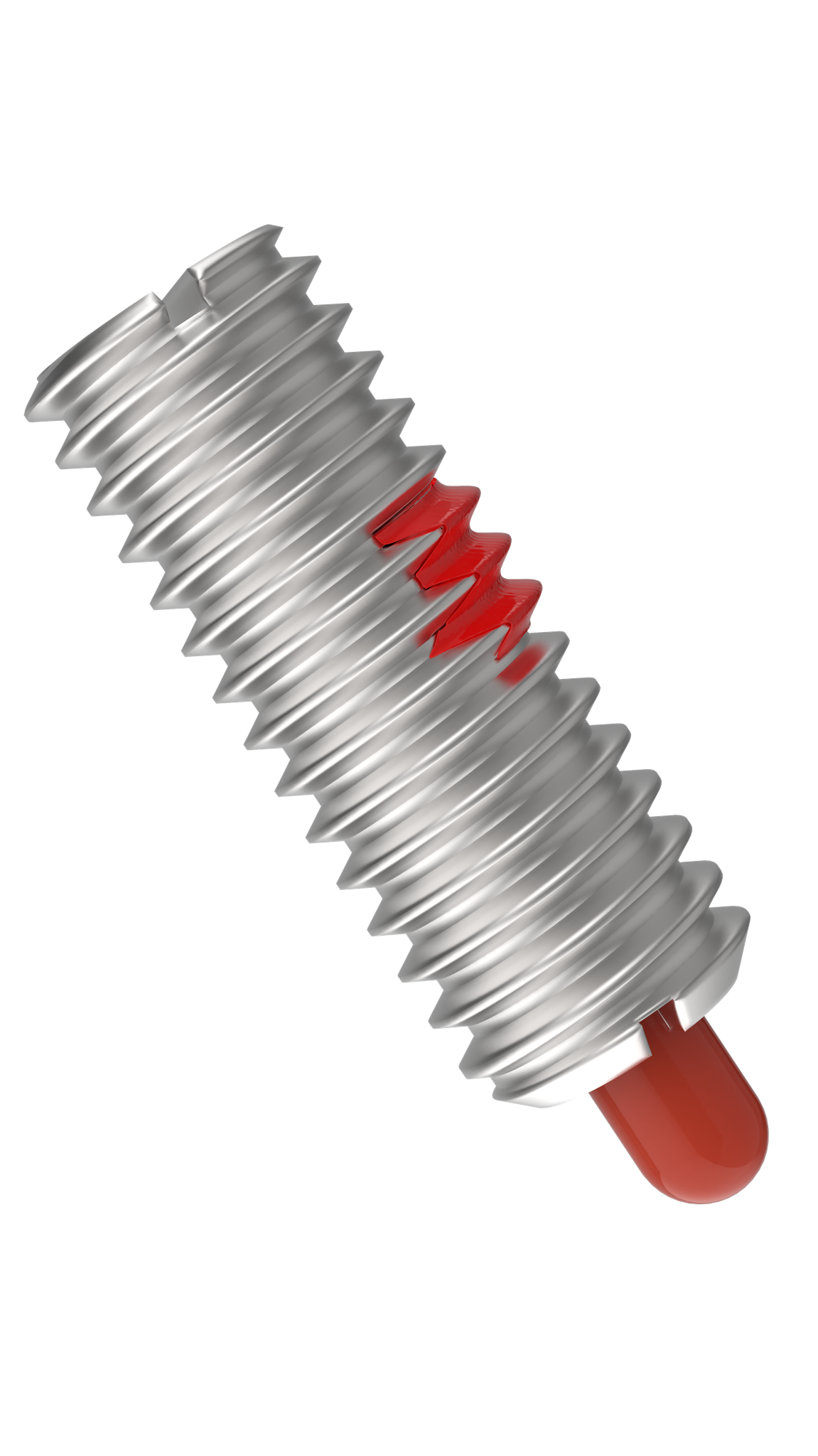

Short Spring Plungers with Extended Travel – Stainless Steel with Delrin® Nose

Self-contained plunger-and-spring device available in many sizes and forces. Short Spring Plungers with Extended Travel have the body length of a Short Spring Plunger while providing the longer stroke of a standard Spring Plunger (but are available only with light spring force). The version shown here has a stainless steel body for extra corrosion resistance, and a Delrin® plunger nose to prevent marring. Available in thread sizes from #8-32 to 1/2-13. Made in USA.

Install and/or adjust from either end. When using the slot at the plunger end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring (see Related Products below). A thread-locking element holds the unit securely in place after installation.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Internal View

Nose Extended

Nose Retracted

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	300-Series Stainless Steel	-	-	✔	✔
Plunger Nose	Brown Delrin® 500	-	-	✔	✔
Spring	302 Stainless	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Short Spring Plungers with Extended Travel – Stainless Steel with Delrin® Nose

Inch

QUANTITY	PART NO.	A THREAD	INITIAL END FORCE (lbs)	FINAL END FORCE (lbs)	B	C ±.010	D DIA
	CL-25-SSPN-1	#8-32	1.0	3.2	7/16	.093	.070
	CL-35-SSPN-1	#10-32	1.2	4.2	15/32	.125	.093

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability
