Spring Locating Pins – Tapped Receptacle for Custom Pin (Coil Spring)

Spring-Loaded Devices

Save to My Project

What is this?

Product Information

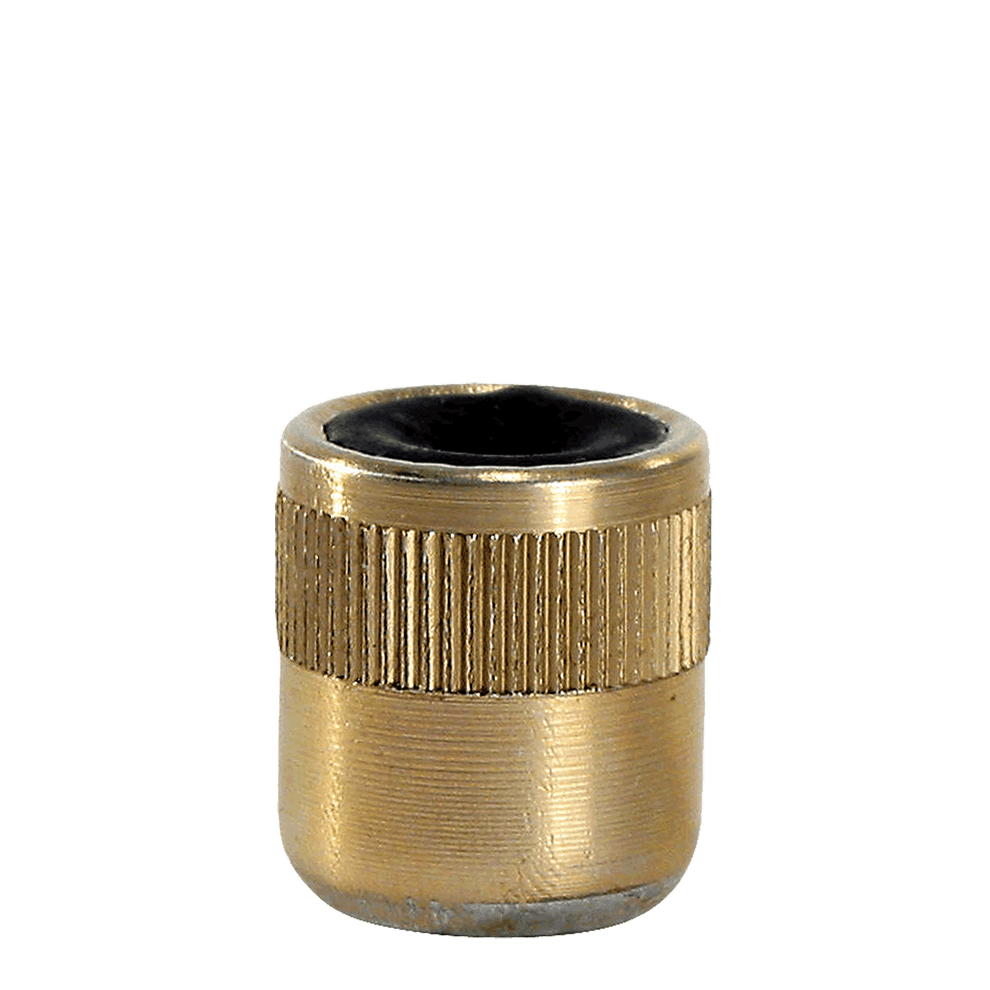

Spring Locating Pins – Tapped Receptacle for Custom Pin (Coil Spring) Part # CL-7-SLPR-2 Carr Lane Mfg.®

Spring Locating Pins are press-fit inserts that provide an extremely compact way to apply side force to a workpiece, for positioning or light clamping. The version shown here, has a tapped receptacle for installing custom contact pins, together with a coil spring for maximum travel. Available in two sizes, 7/16" and 5/8" body diameter. Choice of light, medium, or heavy force in each size.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

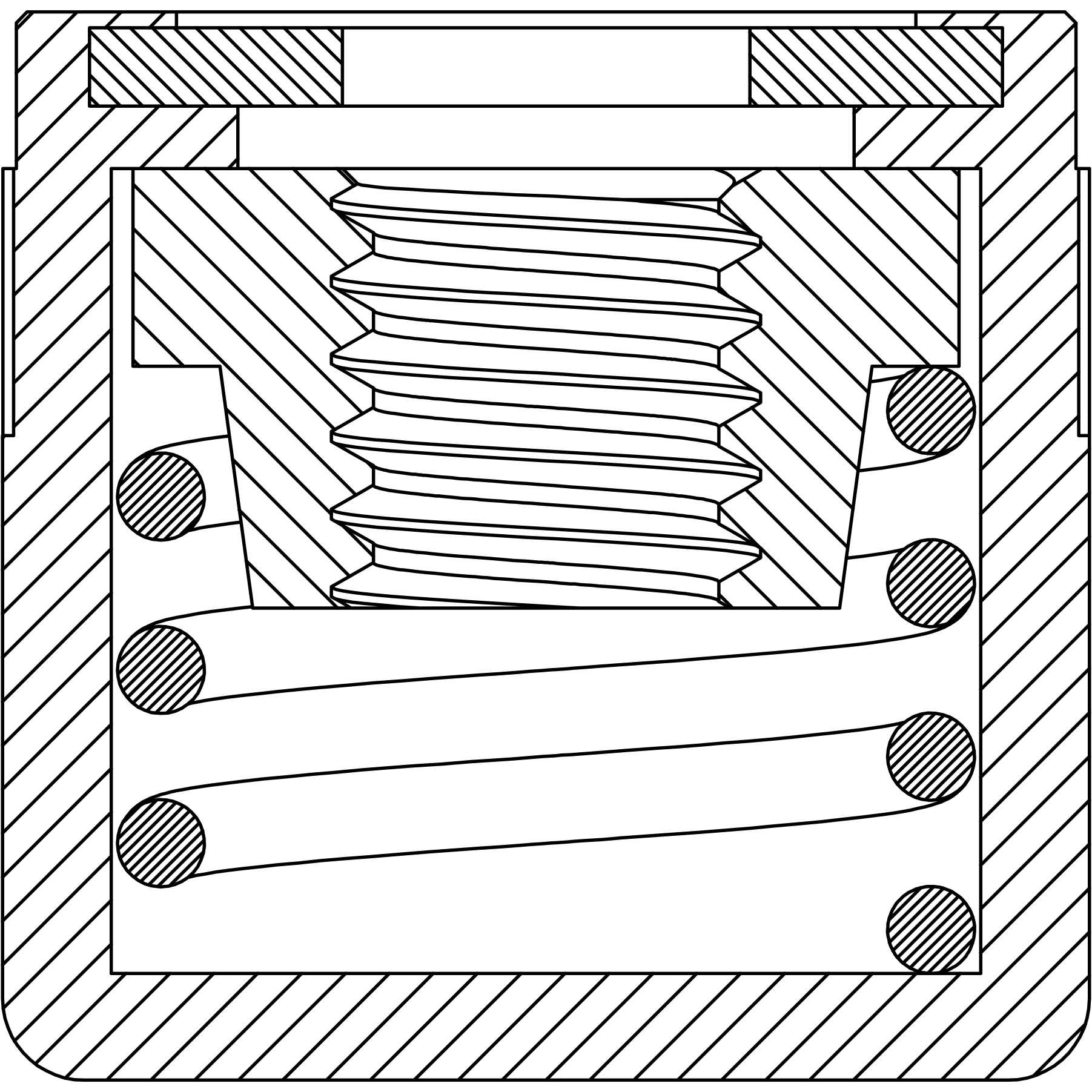

Internal View

Design Considerations

Dimension E is a theoretical contact height which allows F maximum travel and provides the side force listed in the table. Taller pins will have more travel and less force, while shorter pins will have less travel and more force. To achieve maximum travel at any given height, the bottom diameter of the custom pin should be approximately equal to the C dimension.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Receptacle	Mild Steel	-	Black Oxide	✔	✔
Spring	Music Wire	-	-	✔	✔
Housing	Aluminum	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Spring Locating Pins – Tapped Receptacle for Custom Pin (Coil Spring)

Inch

PART NO.	A DIA	B THREAD	APPROX SIDE FORCE (lbs)	C	D	E	F	G
CL-7-SLPR-1	7/16	#8-32	4.5	.164	.434	.16	.063	.04
CL-7-SLPR-2	7/16	#8-32	11	.164	.434	.16	.063	.04
CL-7-SLPR-3	7/16	#8-32	22	.164	.434	.16	.063	.04
CL-10-SLPR-1	5/8	1/4-20	22	.250	.705	.45	.126	.06
CL-10-SLPR-2	5/8	1/4-20	34	.250	.705	.45	.126	.06
CL-10-SLPR-3	5/8	1/4-20	45	.250	.705	.45	.126	.06
