Eccentric Liners

Spring-Loaded Devices

Save to My Project

What is this?

Product Information

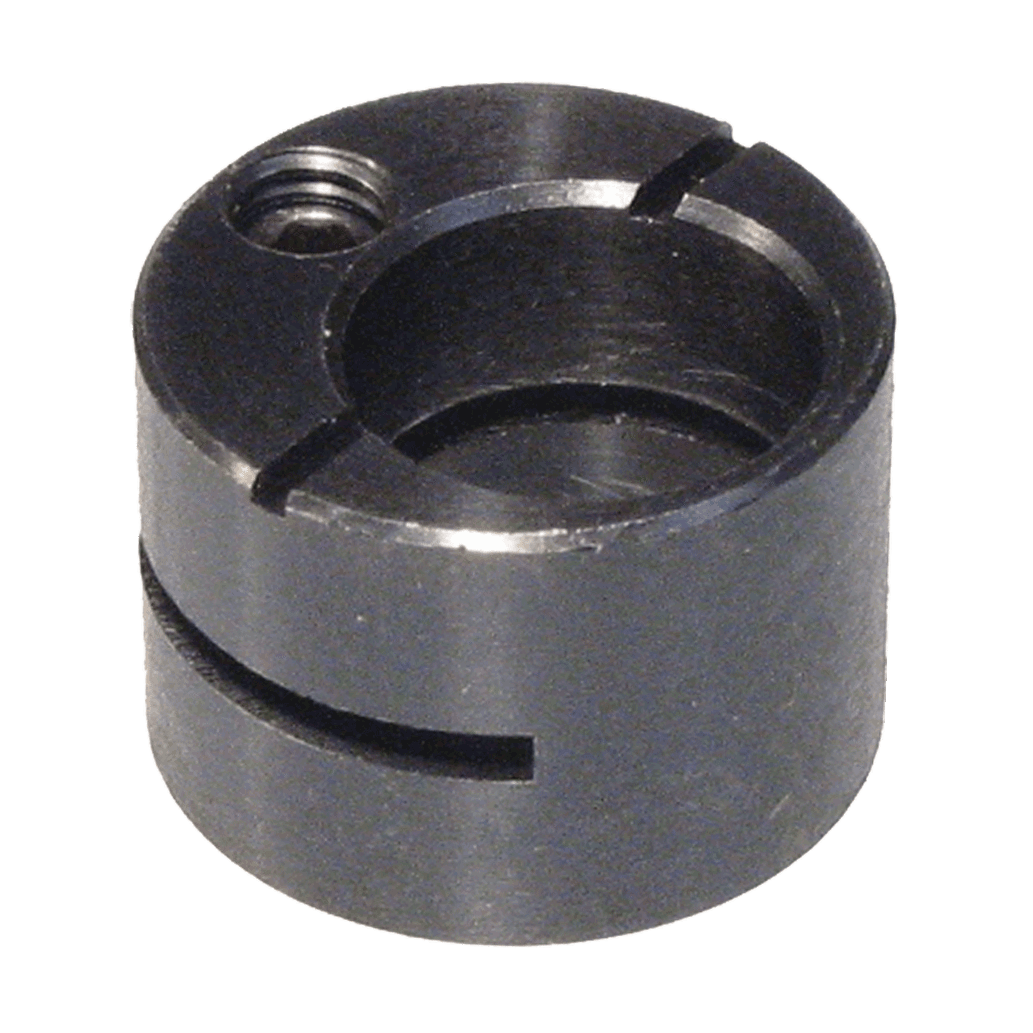

Eccentric Liners Part # CL-7-SLPE Carr Lane Mfg.®

Eccentric Liners can be used with Spring Locating Pins to provide additional adjustment for workpieces with looser tolerances. Use with any of the three types. Available to fit all five sizes of Spring Locating Pins from 1/4" to 5/8" body diameter.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Eccentric Liners

Inch

PART NO.	FITS THESE SPRING LOCATING PINS	A DIA NOMINAL	A DIA ACTUAL	B DIA NOMINAL	B DIA ACTUAL	C	D
CL-4-SLPE	CL-4-SLP-x CL-4-SLPS-X CL-4-SLPP-X	1/4	.2500 / .2507	1/2	.5000 / .4983	.390	.079
CL-7-SLPE	CL-7-SLP-x CL-7-SLPS-x CL-7-SLPP-x CL-7A-SLP-x CL-7A-SLPS-x CL-7A-SLPP-x	7/16	.4375 / .4386	11/16	.6875 / .6858	.469	.079
CL-8-SLPE	CL-8-SLP-x CL-8-SLPS-x CL-8-SLPP-x	1/2	.5000 / .5011	3/4	.7500 / .7480	.547	.079
CL-10-SLPE	CL-10-SLP-x CL-10-SLPS-x CL-10-SLPP-x	5/8	.6250 / .6261	1	1.0000 / .9980	.705	.118
