Hand-Retractable Plungers – Pull Ring (Extended-Locking Type)

Spring-Loaded Devices

Save to My Project

What is this?

Product Information

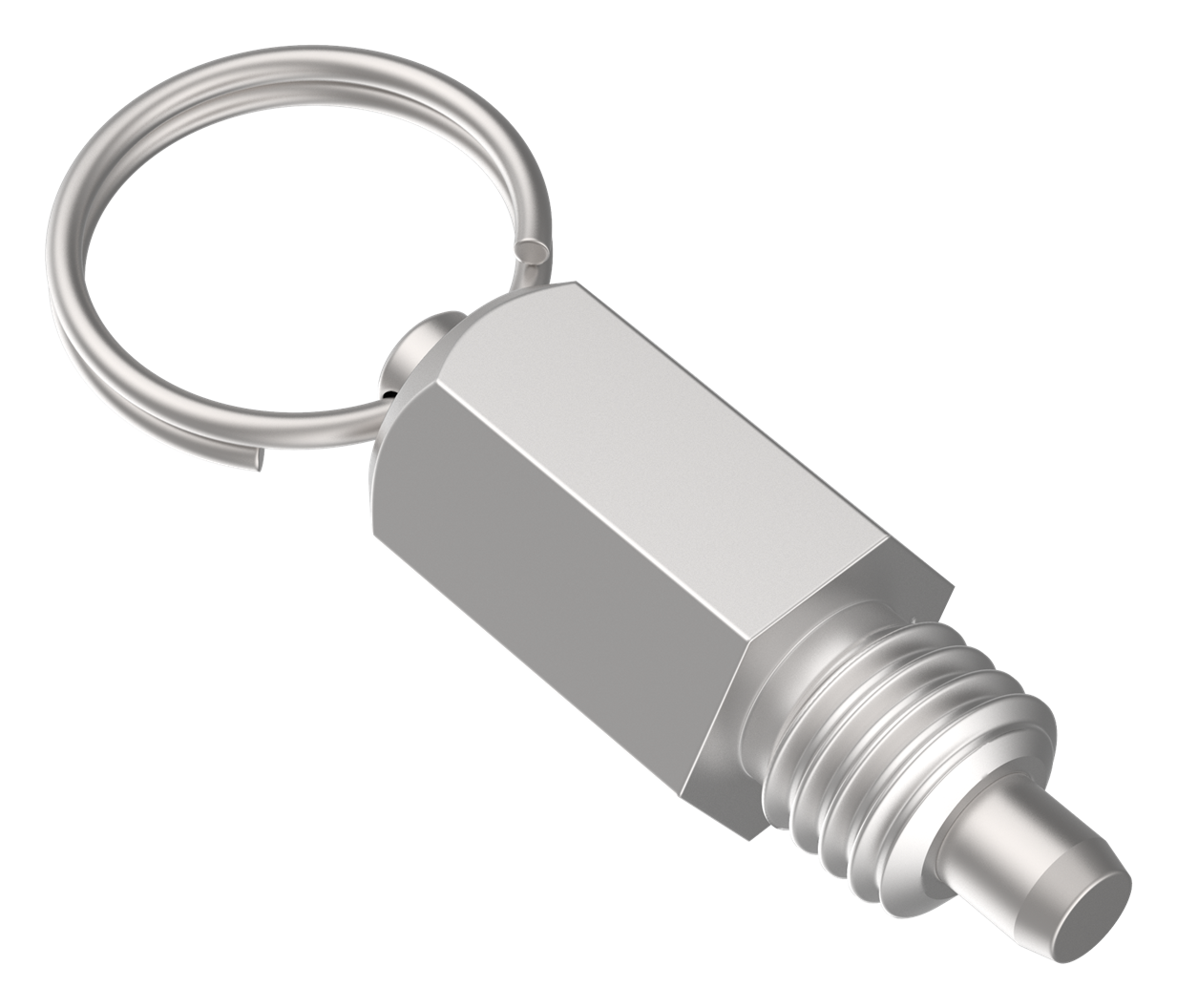

Hand-Retractable Plungers – Pull Ring (Extended-Locking Type)

New Item!

This unique, quick-release pull pin positively locks in extended position. The hand-retractable plunger tip automatically locks in the forward position unless manually disengaged by pulling the ring, rather than being held forward by spring force. Slight taper on plunger tip for easy alignment. Patent No. 8,821,061. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Plunger	Mild Steel	Carburized-Hardened	Zinc Plated Clear Chromate	✔	✔
Body	Mild Steel	Zinc Plated Clear Chromate	-	✔	✔
Spring	Spring Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Hand-Retractable Plungers – Pull Ring (Extended-Locking Type)

Inch

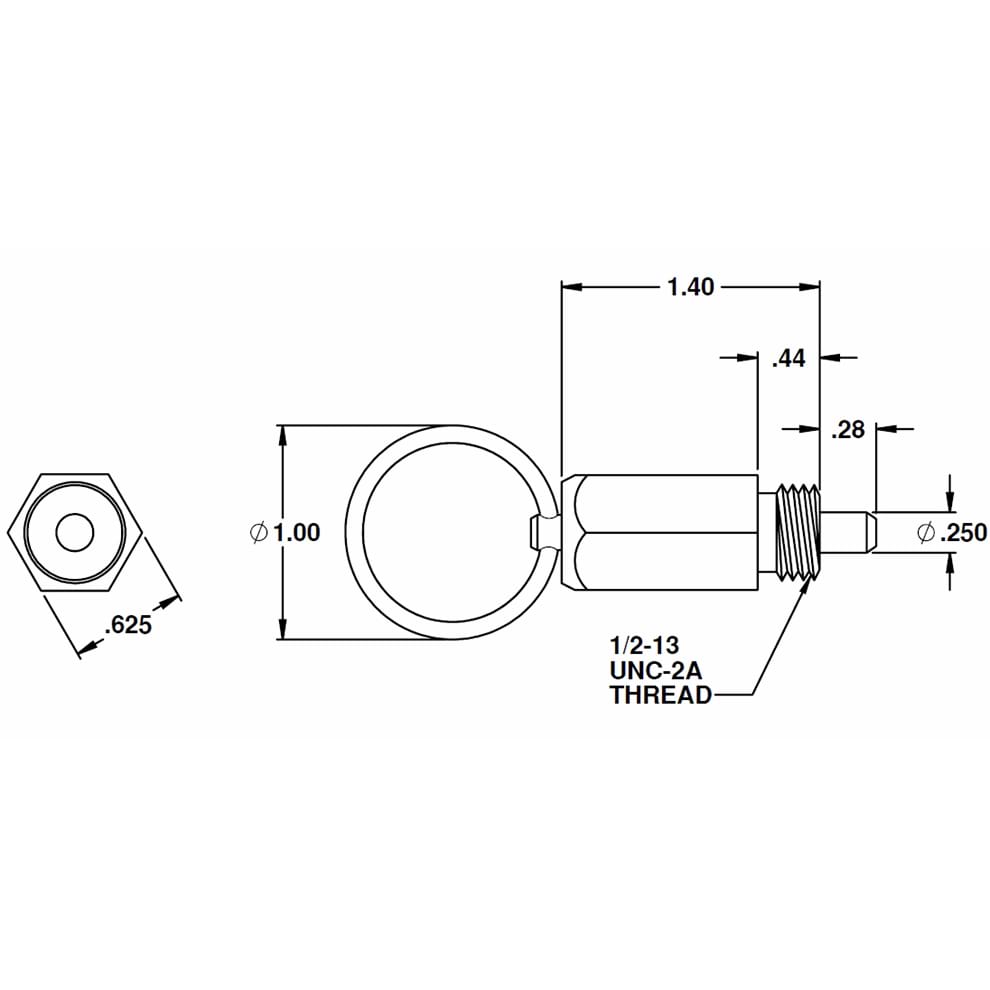

QUANTITY	PART NO.	BODY THREAD	END FORCE	PLUNGER DIA	PLUNGER LENGTH	BODY LENGTH	RING DIA	BODY HEX
	CL-8-EHRP	1/2-13	Locked	.250	.28	1.40	1.00	5/8
