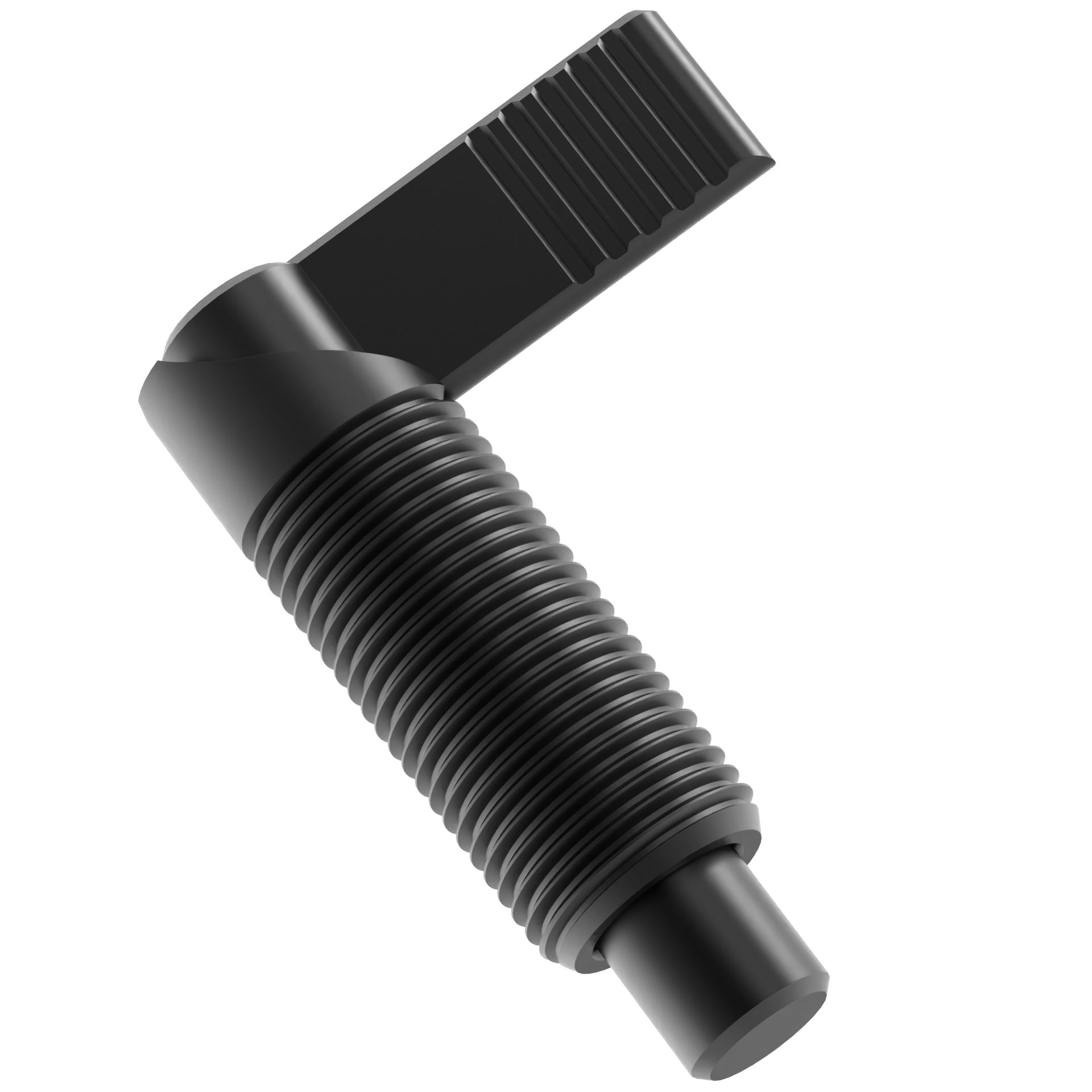

Hand-Retractable Plungers Cam Handle Part # CLM-10-HRPC Carr Lane Mfg.®

Precision Cam actuated index plunger. Threaded-body version allows adjustment and can be secured with an optional Jam Nut. Provides high strength and durability in an extremely compact assembly. Hardened and ground plunger.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	RoHS
Lever Arm	Steel	-	Black Oxide	✔
Plunger	Steel	Heat Treated	-	✔
Body	Steel	-	Black Oxide	✔
Sleeve	Plastic	-	-	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Hand-Retractable Plungers Cam Handle

Inch

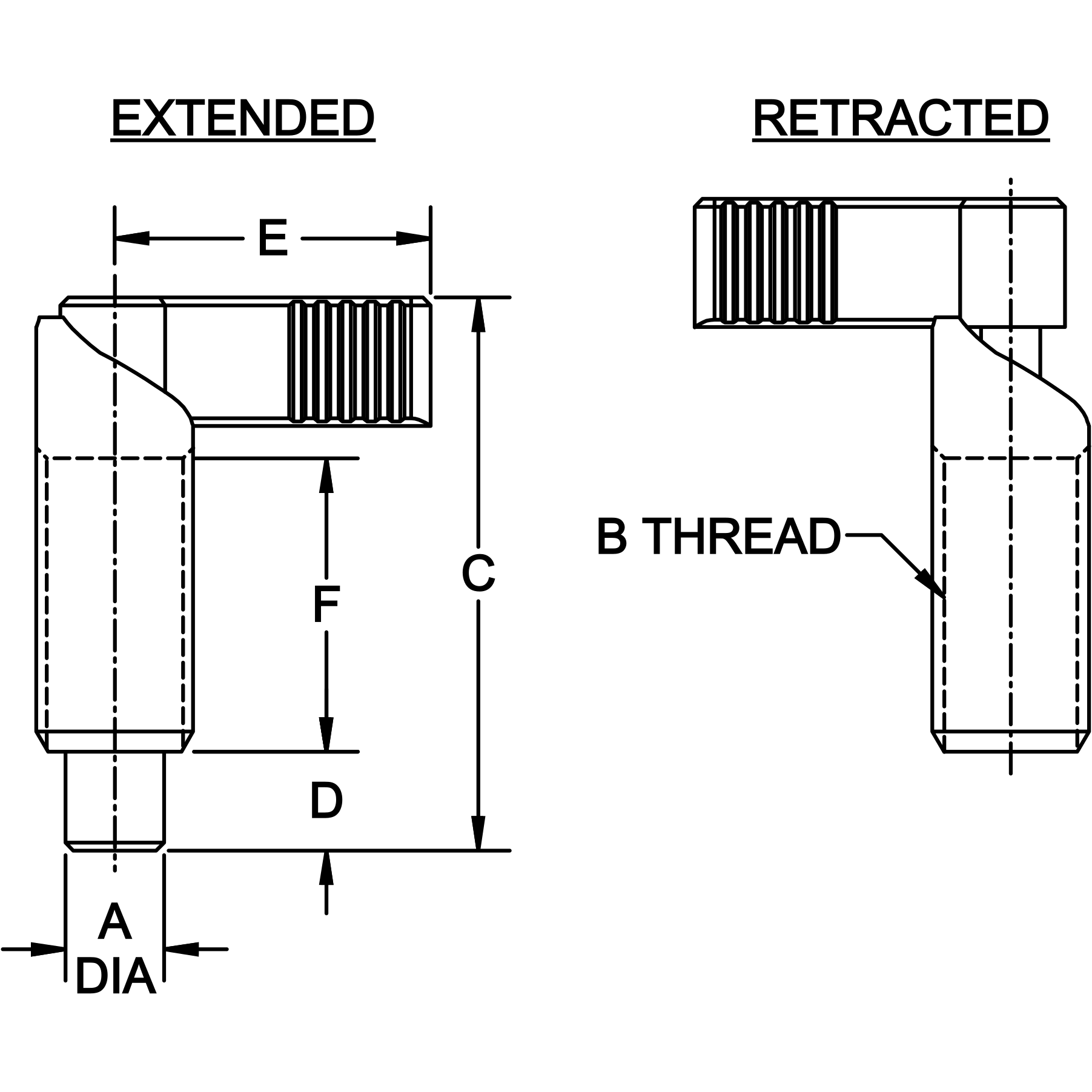

PART NO.	A DIA	B THREAD	C	D	E	F	INITIAL END FORCE (lbs)	FINAL END FORCE (lbs)
CL-6-HRPC	.24	5/8-18	2.20	.39	1.26	1.18	2.5	6.5
CL-8-HRPC	.31	3/4-16	2.72	.47	1.46	1.42	4.7	12.8
CL-10-HRPC	.39	5/8-18	2.20	.39	1.26	1.18	2.5	6.5
CL-12-HRPC	.47	3/4-16	2.72	.47	1.46	1.42	4.7	12.8

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

PART NO.	A DIA (mm)	B THREAD	THREAD PITCH	C (mm)	D (mm)	E (mm)	F (mm)	INITIAL END FORCE (lbs)	FINAL END FORCE (lbs)
CLM-6-HRPC	6.0	M16	1.5	55.9	9.9	32.0	30.0	2.5	6.5
CLM-8-HRPC	7.9	M16	1.5	69.0	11.9	32.0	30.0	4.7	12.8
CLM-10-HRPC	9.9	M16	1.5	55.9	9.9	32.0	30.0	2.5	6.5
CLM-12-HRPC	11.9	M20	1.5	69.0	11.9	37.1	36.0	4.7	12.8

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Download CAD Model
