Plunger Wrenches

Spring-Loaded Devices

Save to My Project

What is this?

Product Information

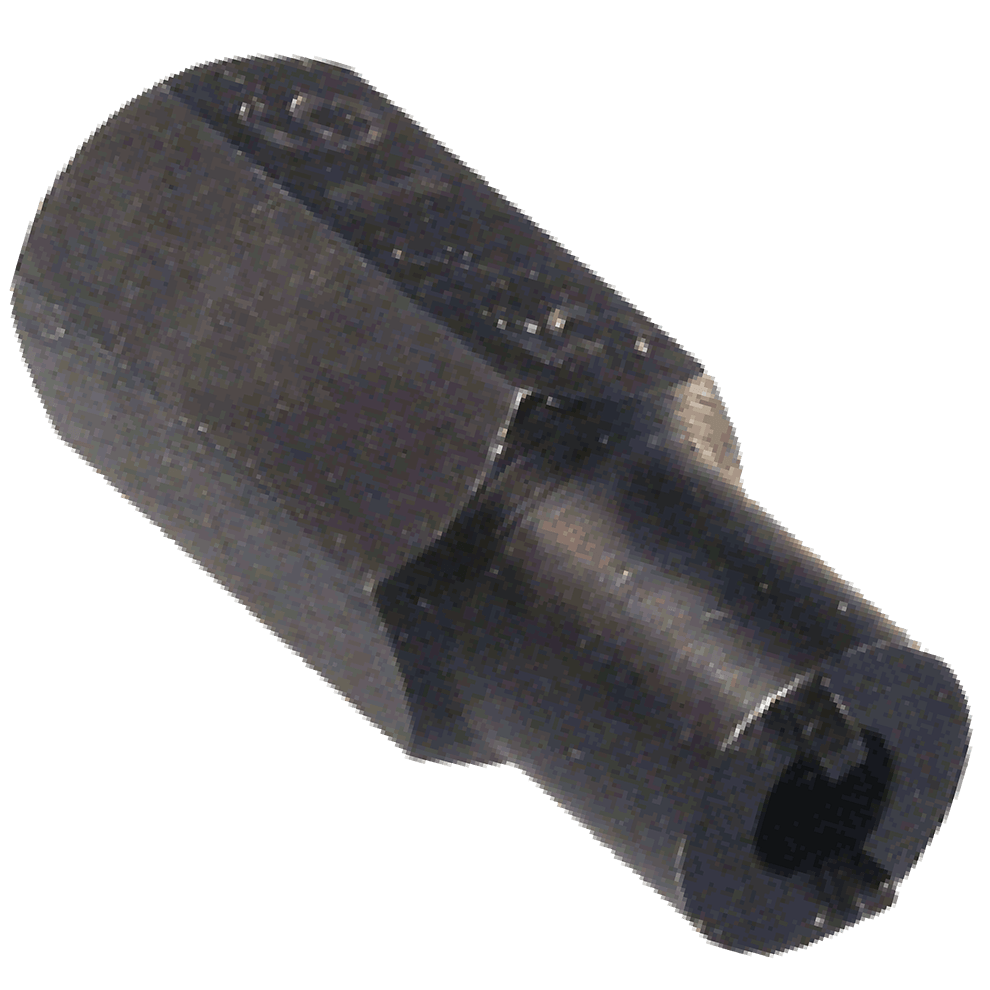

Plunger Wrenches Part # CL-12-SPW Carr Lane Mfg.®

Handy tool to speed up installation of Ball Plungers or Spring Plungers. Much better than using a screwdriver on the ball/nose end, because the clearance hole in the center prevents over-compressing the plunger's internal spring. Available in sizes to fit all Ball Plungers and Spring Plungers, from #4-48 to 1"-8 (M4 to M12 in metric). Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Plunger Wrenches

PART NO.	FITS THESE PLUNGER SIZES	A	B
CL-2-SPW	#4-48, #5-40, #6-32, #6-40	1/4	7/8
CL-4-SPW	#8-32, #8-36, M4	1/4	7/8
CL-6-SPW	#10-32, M5	1/4	7/8
CL-8-SPW	1/4-20, 1/4-28, M6	1/4	1
CL-10-SPW	5/16-18, M8	3/8	1
CL-12-SPW	3/8-16, M10	3/8	1
CL-14-SPW	1/2-13, M12	1/2	1
CL-16-SPW	5/8-11	5/8	1-1/8
CL-18-SPW	3/4-10	3/4	1-1/8
CL-20-SPW	1"-8	7/8	1-3/8
