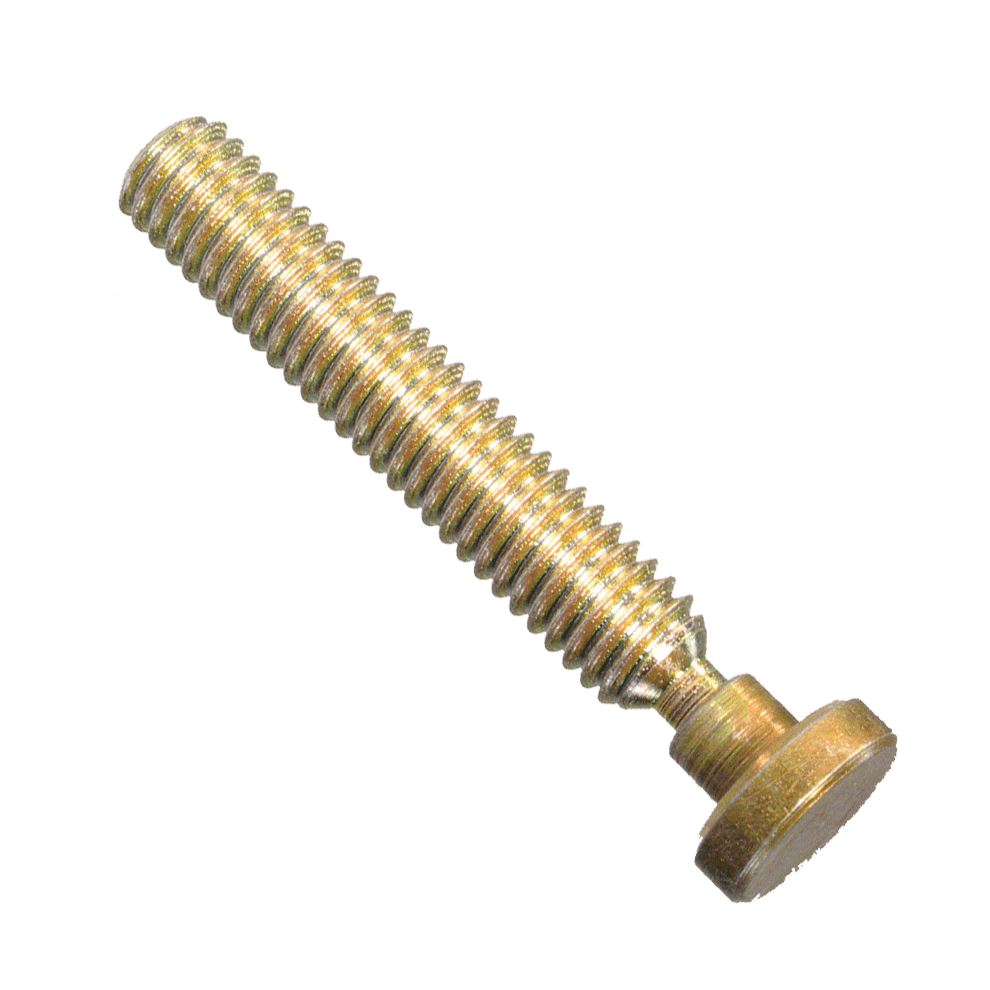

Swivel Screw Clamps (Large Foot) Part # CL-24-SSC Carr Lane Mfg.®

High-quality clamping screw that accepts a wide assortment of swivel feet. The swivel screws shown here include the Type B large foot, which is optionally available in Delrin®. Socket head allows applying strong clamping force using a hex wrench. Available in zinc-plated steel with thread sizes from 1/4-20 to 5/8-11. Available in black-oxide-finish steel with thread sizes from 1/4-20 to 5/8-11 (M6 to M16 in metric). Available in stainless steel with thread sizes from 1/4-20 to 1/2-13. Choice of several lengths in each thread size. Made in USA.

Swivel Foot

Diagram showcasing the application of Swivel Screw Clamps Large Foot

Swivel Head Screws use our patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin® feet are optional for types A and B. To order with a Delrin® foot, add "N" to the part number, e.g. CL-1-SSCN. Note: Delrin® feet are not threaded – they snap on and off.

Design Considerations

For full hex-socket strength, the socket end of the body should be entirely inside its tapped hole during final tightening.

Material

STEEL, ZINC PLATED
ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	1215 or 1144 Steel	Heat Treated	Zinc Plated Yellow Chromate	✔	✔
Steel Foot	1215 Steel	-	Zinc Plated Yellow Chromate	✔	✔
Delrin® foot	White Delrin® 500	-	-	✔	✔

STEEL, BLACK OXIDE FINISH
ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	1215 or 1144 Steel	Heat Treated	Black Oxide	✔	✔
Steel Foot	1215 Steel	-	Black Oxide	✔	✔
Delrin® foot	White Delrin® 500	-	-	✔	✔

STAINLESS STEEL
ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body and Stainless Foot	300-Series Stainless Steel	Passivated	-	✔	✔
Delrin® foot	White Delrin® 500	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Swivel Screw Clamps (Large Foot)

Steel, Zinc Plated (Inch)

To order with a Delrin® foot, add "N" suffix to part number on Price & Availability screen.

QUANTITY	PART NO.	A THREAD	B	F	G DIA	H	J
	CL-20-SSC	1/4-20	1/8	19/32	3/8	23/64	1/8
	CL-21-SSC	1/4-20	1/8	27/32	3/8	23/64	1/8
	CL-22-SSC	1/4-20	1/8	1-3/32	3/8	23/64	1/8
	CL-23-SSC	1/4-20	1/8	1-19/32	3/8	23/64	1/8
	CL-24-SSC	5/16-18	5/32	27/32	1/2	27/64	5/32
	CL-25-SSC	5/16-18	5/32	1-3/32	1/2	27/64	5/32
	CL-26-SSC	5/16-18	5/32	1-19/32	1/2	27/64	5/32
	CL-27-SSC	5/16-18	5/32	2-3/32	1/2	27/64	5/32
	CL-28-SSC	3/8-16	3/16	7/8	9/16	5/8	3/16
	CL-29-SSC	3/8-16	3/16	1-1/8	9/16	5/8	3/16
	CL-30-SSC	3/8-16	3/16	1-5/8	9/16	5/8	3/16
	CL-31-SSC	3/8-16	3/16	2-1/8	9/16	5/8	3/16
	CL-43-SSC	3/8-16	3/16	3-1/8	9/16	5/8	3/16
	CL-33-SSC	1/2-13	1/4	1-9/16	3/4	17/32	3/16
	CL-34-SSC	1/2-13	1/4	2-1/16	3/4	17/32	3/16
	CL-35-SSC	1/2-13	1/4	3-1/16	3/4	17/32	3/16
	CL-44-SSC	1/2-13	1/4	4-1/16	3/4	17/32	3/16
	CL-37-SSC	5/8-11	5/16	2-3/64	15/16	21/32	7/32
	CL-38-SSC	5/8-11	5/16	3-3/64	15/16	21/32	7/32
	CL-45-SSC	5/8-11	5/16	4-3/64	15/16	21/32	7/32
	CL-46-SSC	5/8-11	5/16	5-3/64	15/16	21/32	7/32

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Steel, Black Oxide Finish (Inch)

To order with a Delrin® foot, add "N" suffix to part number on Price & Availability screen.

QUANTITY	PART NO.	A THREAD	B	F	G DIA	H	J
	CL-20-SSC-BO	1/4-20	1/8	19/32	3/8	23/64	1/8
	CL-21-SSC-BO	1/4-20	1/8	27/32	3/8	23/64	1/8
	CL-22-SSC-BO	1/4-20	1/8	1-3/32	3/8	23/64	1/8
	CL-23-SSC-BO	1/4-20	1/8	1-19/32	3/8	23/64	1/8
	CL-24-SSC-BO	5/16-18	5/32	27/32	1/2	27/64	5/32
	CL-25-SSC-BO	5/16-18	5/32	1-3/32	1/2	27/64	5/32
	CL-26-SSC-BO	5/16-18	5/32	1-19/32	1/2	27/64	5/32
	CL-27-SSC-BO	5/16-18	5/32	2-3/32	1/2	27/64	5/32
	CL-28-SSC-BO	3/8-16	3/16	7/8	9/16	5/8	3/16
	CL-29-SSC-BO	3/8-16	3/16	1-1/8	9/16	5/8	3/16
	CL-30-SSC-BO	3/8-16	3/16	1-5/8	9/16	5/8	3/16
	CL-31-SSC-BO	3/8-16	3/16	2-1/8	9/16	5/8	3/16
	CL-43-SSC-BO	3/8-16	3/16	3-1/8	9/16	5/8	3/16
	CL-33-SSC-BO	1/2-13	1/4	1-9/16	3/4	17/32	3/16
	CL-34-SSC-BO	1/2-13	1/4	2-1/16	3/4	17/32	3/16
	CL-35-SSC-BO	1/2-13	1/4	3-1/16	3/4	17/32	3/16
	CL-44-SSC-BO	1/2-13	1/4	4-1/16	3/4	17/32	3/16
	CL-37-SSC-BO	5/8-11	5/16	2-3/64	15/16	21/32	7/32
	CL-38-SSC-BO	5/8-11	5/16	3-3/64	15/16	21/32	7/32
	CL-45-SSC-BO	5/8-11	5/16	4-3/64	15/16	21/32	7/32
	CL-46-SSC-BO	5/8-11	5/16	5-3/64	15/16	21/32	7/32

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Stainless Steel (Inch)

To order with a Delrin® foot, add "N" suffix to part number on Price & Availability screen.

QUANTITY	PART NO.	A THREAD	B	F	G DIA	H	J
	CL-21-SSC-S	1/4-20	1/8	27/32	3/8	23/64	1/8
	CL-22-SSC-S	1/4-20	1/8	1-3/32	3/8	23/64	1/8
	CL-23-SSC-S	1/4-20	1/8	1-19/32	3/8	23/64	1/8
	CL-25-SSC-S	5/16-18	5/32	1-3/32	1/2	27/64	5/32
	CL-26-SSC-S	5/16-18	5/32	1-19/32	1/2	27/64	5/32
	CL-27-SSC-S	5/16-18	5/32	2-3/32	1/2	27/64	5/32
	CL-30-SSC-S	3/8-16	3/16	1-5/8	9/16	5/8	3/16
	CL-31-SSC-S	3/8-16	3/16	2-1/8	9/16	5/8	3/16
	CL-43-SSC-S	3/8-16	3/16	3-1/8	9/16	5/8	3/16
	CL-34-SSC-S	1/2-13	1/4	2-1/16	3/4	17/32	3/16
	CL-35-SSC-S	1/2-13	1/4	3-1/16	3/4	17/32	3/16
	CL-44-SSC-S	1/2-13	1/4	4-1/16	3/4	17/32	3/16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Steel, Black Oxide Finish (Metric)

To order with a Delrin® foot, add "N" suffix to part number on Price & Availability screen.

QUANTITY	PART NO.	A THREAD	THREAD PITCH (mm)	B (mm)	F (mm)	G DIA (mm)	H (mm)	J (mm)
	CLM-20A-SSC-BO	M6	1	3	17.5	9.5	9	3.2
	CLM-21A-SSC-BO	M6	1	3	22.5	9.5	9	3.2
	CLM-22-SSC-BO	M6	1	3	27.5	9.5	9	3.2
	CLM-23-SSC-BO	M6	1	3	42	9.5	9	3.2
	CLM-24-SSC-BO	M8	1.25	4	22.5	12.5	10.5	4
	CLM-25-SSC-BO	M8	1.25	4	27.5	12.5	10.5	4
	CLM-26-SSC-BO	M8	1.25	4	42	12.5	10.5	4
	CLM-27-SSC-BO	M8	1.25	4	52	12.5	10.5	4
	CLM-28-SSC-BO	M10	1.5	5	23	14.5	16	4.8
	CLM-29-SSC-BO	M10	1.5	5	28	14.5	16	4.8
	CLM-30-SSC-BO	M10	1.5	5	43	14.5	16	4.8
	CLM-31-SSC-BO	M10	1.5	5	53	14.5	16	4.8
	CLM-32-SSC-BO	M10	1.5	5	78	14.5	16	4.8
	CLM-33-SSC-BO	M12	1.75	6	42	19	13.5	4.8
	CLM-34-SSC-BO	M12	1.75	6	52	19	13.5	4.8
	CLM-35-SSC-BO	M12	1.75	6	76	19	13.5	4.8
	CLM-36-SSC-BO	M12	1.75	6	102	19	13.5	4.8
	CLM-37-SSC-BO	M16	2	8	51	23.5	16.5	5.5
	CLM-38-SSC-BO	M16	2	8	76	23.5	16.5	5.5
	CLM-39-SSC-BO	M16	2	8	101	23.5	16.5	5.5
	CLM-40-SSC-BO	M16	2	8	126	23.5	16.5	5.5

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
