Half-Turn Screws

Screw Clamps

Save to My Project

What is this?

Product Information

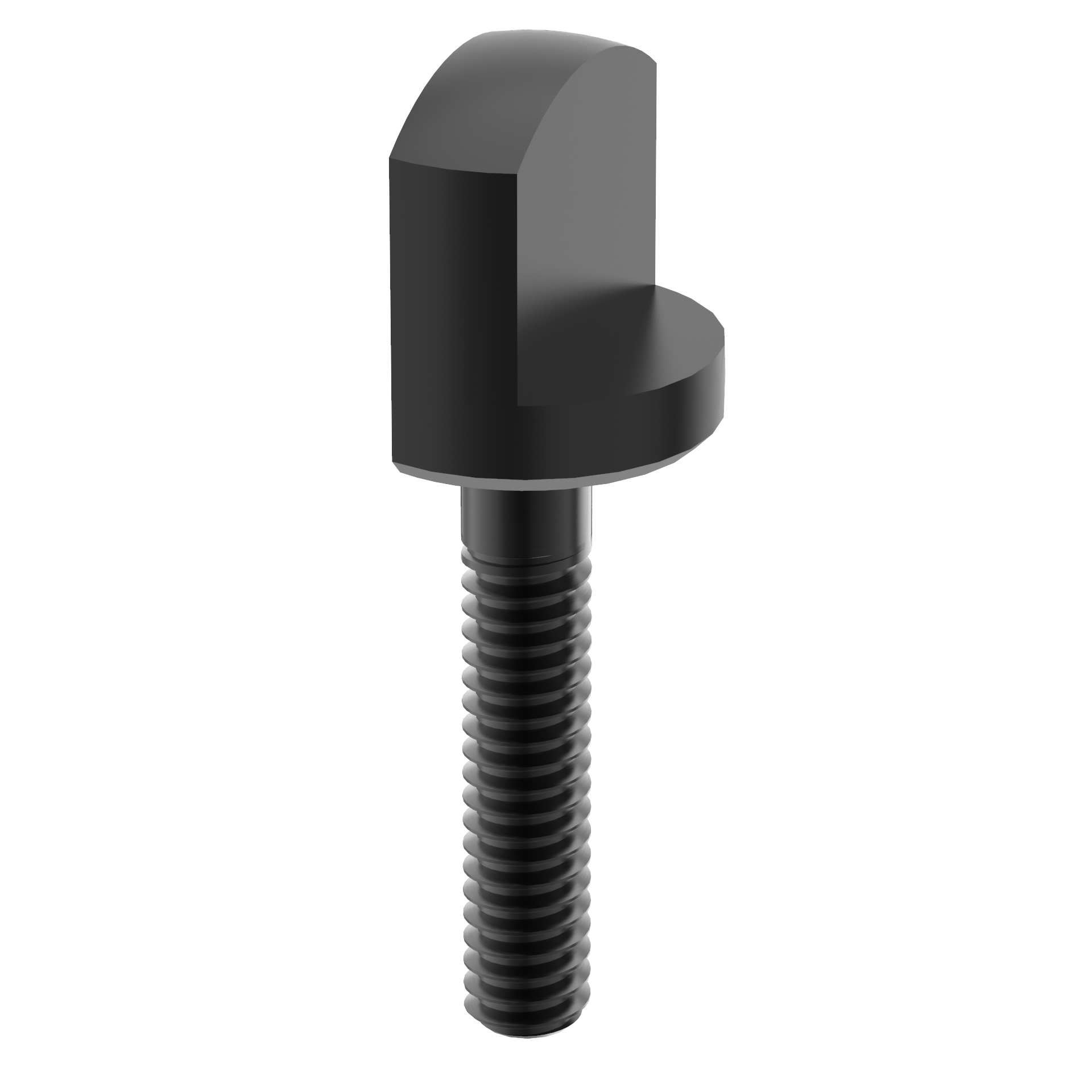

Half-Turn Screws Part # CL-1-HTS Carr Lane Mfg.®

Rotate screw 180° (1/2 turn) to latch. Allows latching swing-away lids and jig plates without machining a slot. Available in thread sizes from #10-32 tp 1/2-13 (M5 to M10 in metric). Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Turn the screw 180 degrees (1/2 turn) to secure.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1215 Steel	Carburized-Hardened	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Half-Turn Screws

Inch

PART NO.	THREAD SIZE	A	B	C DIA	D	E	G
CL-1-HTS	#10-32	1-11/16	7/8	3/4	3/16	1	3/16
CL-2-HTS	1/4-20	2	1	3/4	1/4	1-1/4	3/16
CL-3-HTS	5/16-18	2-1/16	1	1	5/16	1-1/4	3/16
CL-4-HTS	3/8-16	2-11/16	1-1/2	1-1/16	3/8	1-3/4	1/4
CL-5-HTS	1/2-13	2-3/4	1-1/2	1-1/4	1/2	1-3/4	1/4

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

PART NO.	THREAD SIZE	THREAD PITCH (mm)	A (mm)	B (mm)	C DIA (mm)	D (mm)	E (mm)	G (mm)
CLM-5-HTS	M5	.8	43	22	19	5	25	5
CLM-6-HTS	M6	1	49	24	19	6	30	5
CLM-8-HTS	M8	1.25	50	24	25.5	8	30	5

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
