Bar-Lok Quick-Acting Screw Clamps (Knob Handle)

Screw Clamps

Save to My Project

What is this?

Product Information

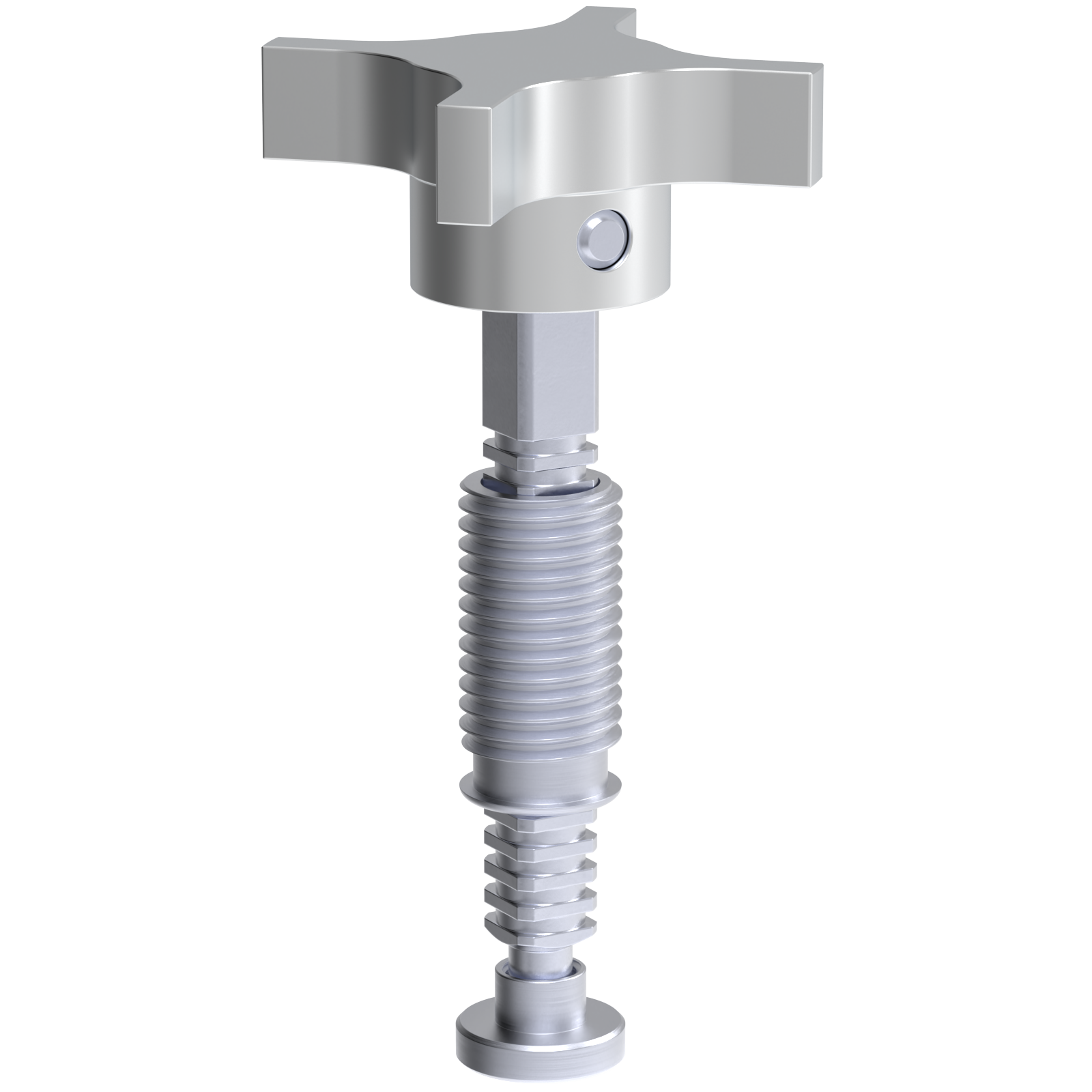

Bar-Lok Quick-Acting Screw Clamps (Knob Handle) Part # CL-210-BLK-ZC Carr Lane Mfg.®

Definitely the strongest quick-acting screw clamp available. The patented grooved-bar design works smoothly and positively – just slide the bar forward to contact the workpiece, then turn clockwise to apply force. To unclamp, turn counterclockwise and slide the bar back. As strong as a standard screw clamp, but much faster. Four-prong knob provides a firm grip for applications requiring quick tightening and high torque. Available in 3/8", 1/2", and 5/8" bar sizes, each in a choice of several lengths. Made in USA.

Videos

Bar-Lok Quick-Acting Screw Clamps

Bar-Lok Quick-Acting Screw Clamps

Bar-Lok Design

Clockwise
Turning the clamping bar clockwise engages internal grooves in the threaded collar. Both components then turn together as a single unit to apply screw force.

Counterclockwise

Turning the clamping bar counterclockwise loosens the screw clamp and disengages the collar, allowing the bar to slide back and forth.

Clamping Action

1

Slide clamping bar forward to contact the workpiece.

2

Turn clockwise to engage the threaded collar and apply clamping force.

3

After machining, turn counterclockwise to unclamp and disengage the collar.

4

Slide clamping bar back for unloading.

Swivel Foot

Choice of four foot types. Bar-Lok Quick-Acting Screw Clamps use our patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use. Delrin® feet are optional for types A and B. To order with a Delrin® foot, add "N" to the part number, e.g. CL-14-BLKBN. Note: Delrin® feet are not threaded – they snap on and off.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Clamping Bar and Collar	1215 Steel	Carburized-Hardened	Clear Zinc Plated	✔	✔
Knob	319 Aluminum Alloy	-	-	✔	✔
Steel Foot	1215 Steel	-	Clear Zinc Plated	✔	✔
Delrin® foot	White Delrin® 500	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Bar-Lok Quick-Acting Screw Clamps (Knob Handle)

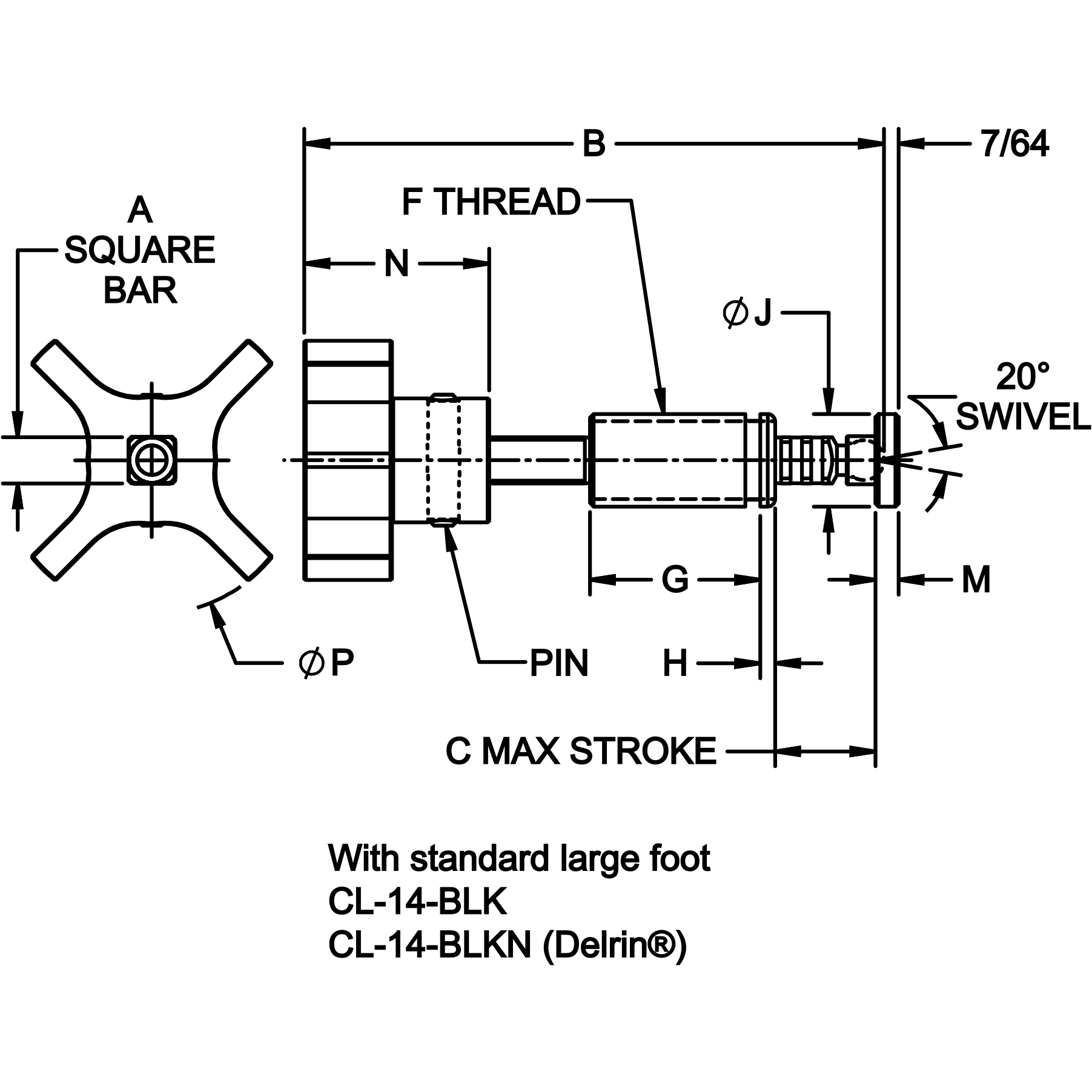

Screw Clamp with Standard Large Foot (Inch)

To order with a Delrin® foot, add "N" suffix to part number on Price & Availability screen.

QUANTITY	PART NO.	A	B	C	F THREAD	G	H	J DIA	M	N	P
	CL-14-BLK-ZC	3/8	4-11/16	1-5/16	3/4-10	1-3/8	1/8	3/4	.187	1-1/2	2-1/2
	CL-15-BLK-ZC	3/8	5-11/16	2-5/16	3/4-10	1-3/8	1/8	3/4	.187	1-1/2	2-1/2
	CL-16-BLK-ZC	3/8	6-11/16	3-5/16	3/4-10	1-3/8	1/8	3/4	.187	1-1/2	2-1/2
	CL-25-BLK-ZC	1/2	5-3/8	1-5/8	7/8-9	1-11/16	1/16	15/16	.218	1-1/4	3
	CL-26-BLK-ZC	1/2	6-3/8	2-5/8	7/8-9	1-11/16	1/16	15/16	.218	1-1/4	3
	CL-28-BLK-ZC	1/2	8-3/8	4-5/8	7/8-9	1-11/16	1/16	15/16	.218	1-1/4	3
	CL-210-BLK-ZC	1/2	10-3/8	6-5/8	7/8-9	1-11/16	1/16	15/16	.218	1-1/4	3
	CL-212-BLK-ZC	1/2	12-3/8	8-5/8	7/8-9	1-11/16	1/16	15/16	.218	1-1/4	3
	CL-35-BLK-ZC	5/8	5-3/8	1-5/8	1-1/8"-7	1-11/16	1/16	15/16	.218	1-1/4	3
	CL-36-BLK-ZC	5/8	6-3/8	2-5/8	1-1/8"-7	1-11/16	1/16	15/16	.218	1-1/4	3
	CL-38-BLK-ZC	5/8	8-3/8	4-5/8	1-1/8"-7	1-11/16	1/16	15/16	.218	1-1/4	3
	CL-310-BLK-ZC	5/8	10-3/8	6-5/8	1-1/8"-7	1-11/16	1/16	15/16	.218	1-1/4	3
	CL-312-BLK-ZC	5/8	12-3/8	8-5/8	1-1/8"-7	1-11/16	1/16	15/16	.218	1-1/4	3

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

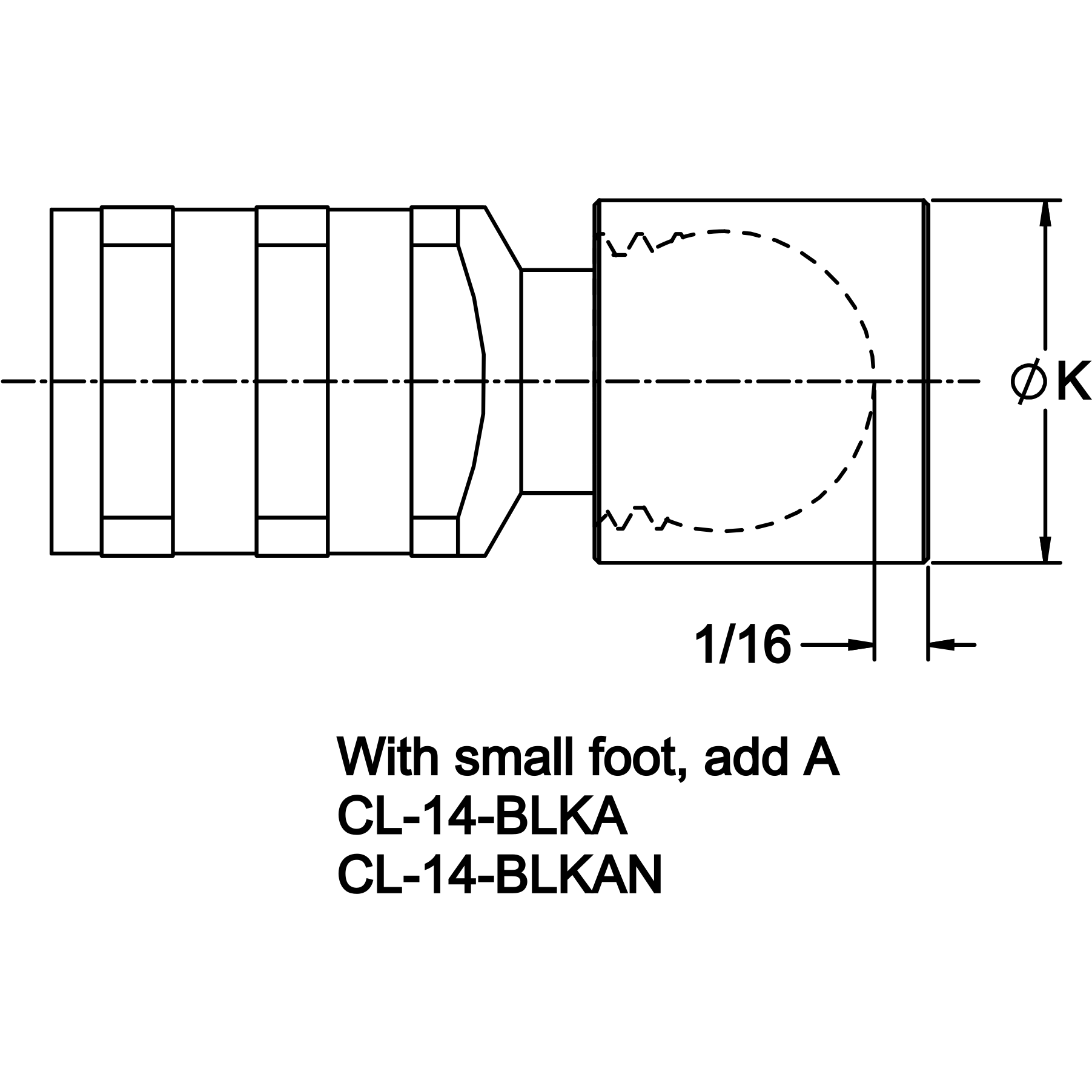

Screw Clamp with Small Foot (Inch)

To order with a Delrin® foot, add "N" suffix to part number on Price & Availability screen.

QUANTITY	PART NO.	A	B	C	F THREAD	G	H	K DIA	M	N	P
	CL-14-BLKA-ZC	3/8	4-11/16	1-5/16	3/4-10	1-3/8	1/8	.390	.187	1-1/2	2-1/2
	CL-15-BLKA-ZC	3/8	5-11/16	2-5/16	3/4-10	1-3/8	1/8	.390	.187	1-1/2	2-1/2
	CL-16-BLKA-ZC	3/8	6-11/16	3-5/16	3/4-10	1-3/8	1/8	.390	.187	1-1/2	2-1/2
	CL-25-BLKA-ZC	1/2	5-3/8	1-5/8	7/8-9	1-11/16	1/16	.500	.218	1-1/4	3
	CL-26-BLKA-ZC	1/2	6-3/8	2-5/8	7/8-9	1-11/16	1/16	.500	.218	1-1/4	3
	CL-28-BLKA-ZC	1/2	8-3/8	4-5/8	7/8-9	1-11/16	1/16	.500	.218	1-1/4	3
	CL-210-BLKA-ZC	1/2	10-3/8	6-5/8	7/8-9	1-11/16	1/16	.500	.218	1-1/4	3
	CL-212-BLKA-ZC	1/2	12-3/8	8-5/8	7/8-9	1-11/16	1/16	.500	.218	1-1/4	3
	CL-35-BLKA-ZC	5/8	5-3/8	1-5/8	1-1/8"-7	1-11/16	1/16	.500	.218	1-1/4	3
	CL-36-BLKA-ZC	5/8	6-3/8	2-5/8	1-1/8"-7	1-11/16	1/16	.500	.218	1-1/4	3
	CL-38-BLKA-ZC	5/8	8-3/8	4-5/8	1-1/8"-7	1-11/16	1/16	.500	.218	1-1/4	3
	CL-310-BLKA-ZC	5/8	10-3/8	6-5/8	1-1/8"-7	1-11/16	1/16	.500	.218	1-1/4	3
	CL-312-BLKA-ZC	5/8	12-3/8	8-5/8	1-1/8"-7	1-11/16	1/16	.500	.218	1-1/4	3

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

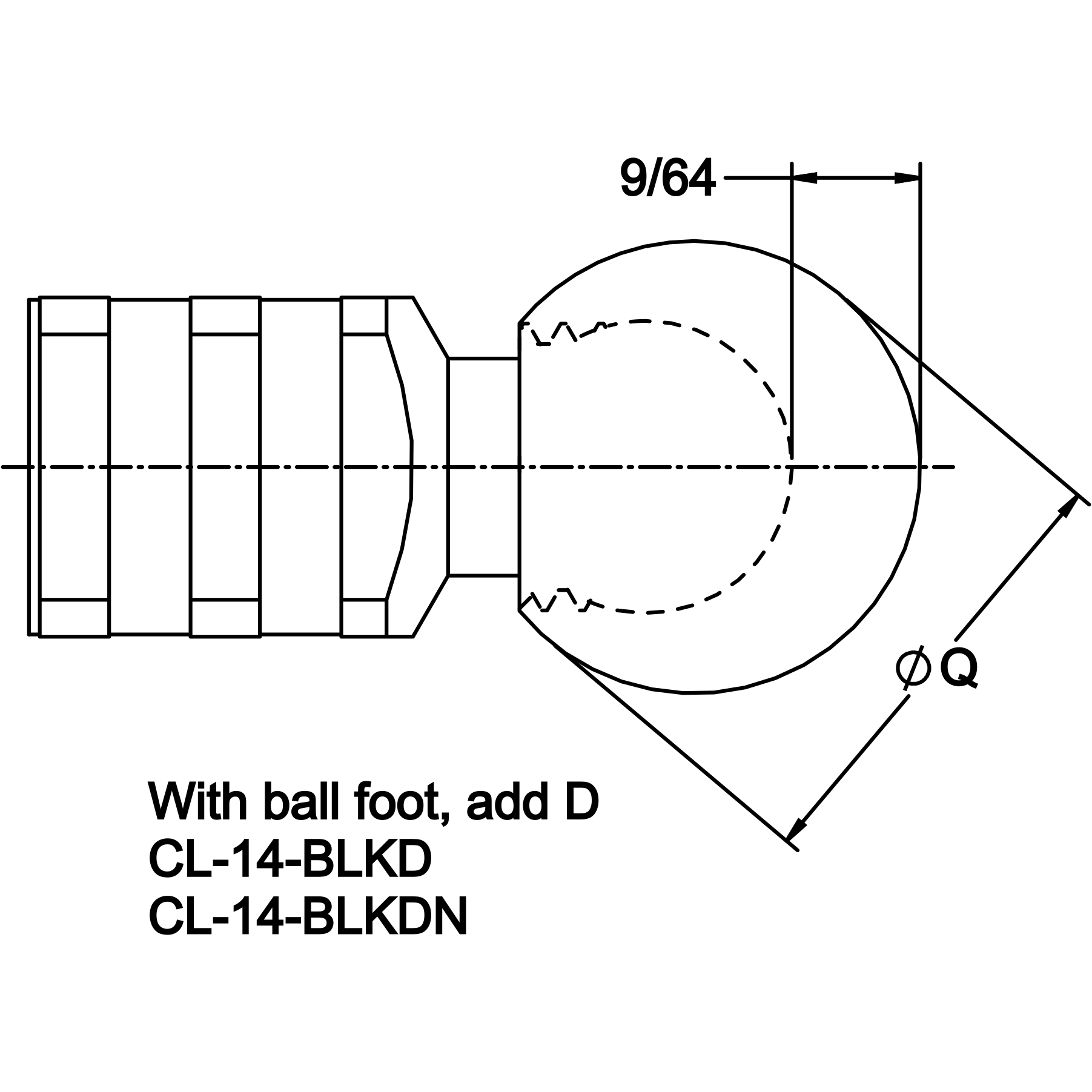

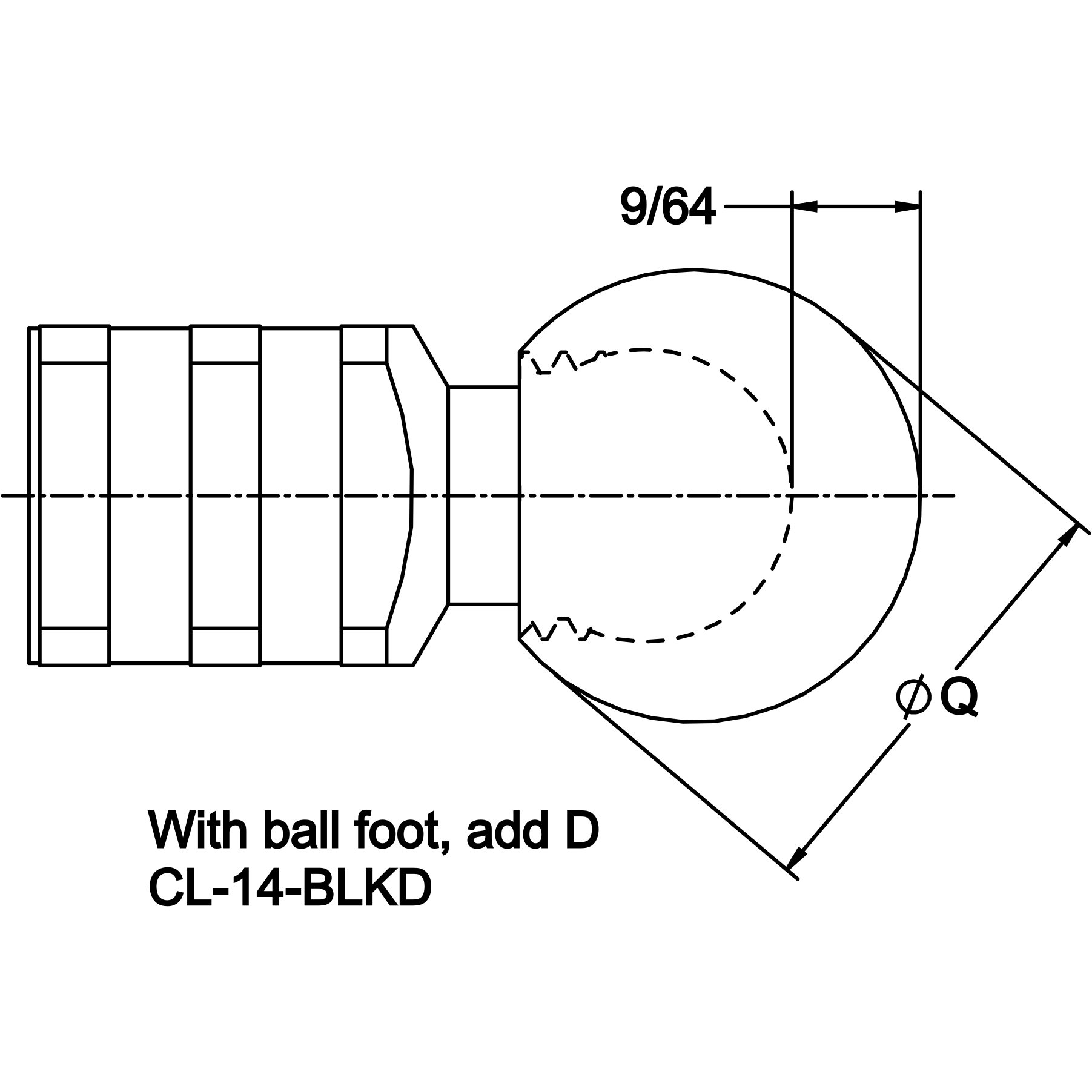

Screw Clamp with Ball Foot (Inch)

QUANTITY	PART NO.	A	B	C	F THREAD	G	H	M	N	P	Q DIA
	CL-14-BLKD-ZC	3/8	4-11/16	1-5/16	3/4-10	1-3/8	1/8	.187	1-1/2	2-1/2	.500
	CL-15-BLKD-ZC	3/8	5-11/16	2-5/16	3/4-10	1-3/8	1/8	.187	1-1/2	2-1/2	.500
	CL-16-BLKD-ZC	3/8	6-11/16	3-5/16	3/4-10	1-3/8	1/8	.187	1-1/2	2-1/2	.500
	CL-25-BLKD-ZC	1/2	5-3/8	1-5/8	7/8-9	1-11/16	1/16	.218	1-1/4	3	.625
	CL-26-BLKD-ZC	1/2	6-3/8	2-5/8	7/8-9	1-11/16	1/16	.218	1-1/4	3	.625
	CL-28-BLKD-ZC	1/2	8-3/8	4-5/8	7/8-9	1-11/16	1/16	.218	1-1/4	3	.625
	CL-210-BLKD-ZC	1/2	10-3/8	6-5/8	7/8-9	1-11/16	1/16	.218	1-1/4	3	.625
	CL-212-BLKD-ZC	1/2	12-3/8	8-5/8	7/8-9	1-11/16	1/16	.218	1-1/4	3	.625
	CL-35-BLKD-ZC	5/8	5-3/8	1-5/8	1-1/8"-7	1-11/16	1/16	.218	1-1/4	3	.625
	CL-36-BLKD-ZC	5/8	6-3/8	2-5/8	1-1/8"-7	1-11/16	1/16	.218	1-1/4	3	.625
	CL-38-BLKD-ZC	5/8	8-3/8	4-5/8	1-1/8"-7	1-11/16	1/16	.218	1-1/4	3	.625
	CL-310-BLKD-ZC	5/8	10-3/8	6-5/8	1-1/8"-7	1-11/16	1/16	.218	1-1/4	3	.625
	CL-312-BLKD-ZC	5/8	12-3/8	8-5/8	1-1/8"-7	1-11/16	1/16	.218	1-1/4	3	.625

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

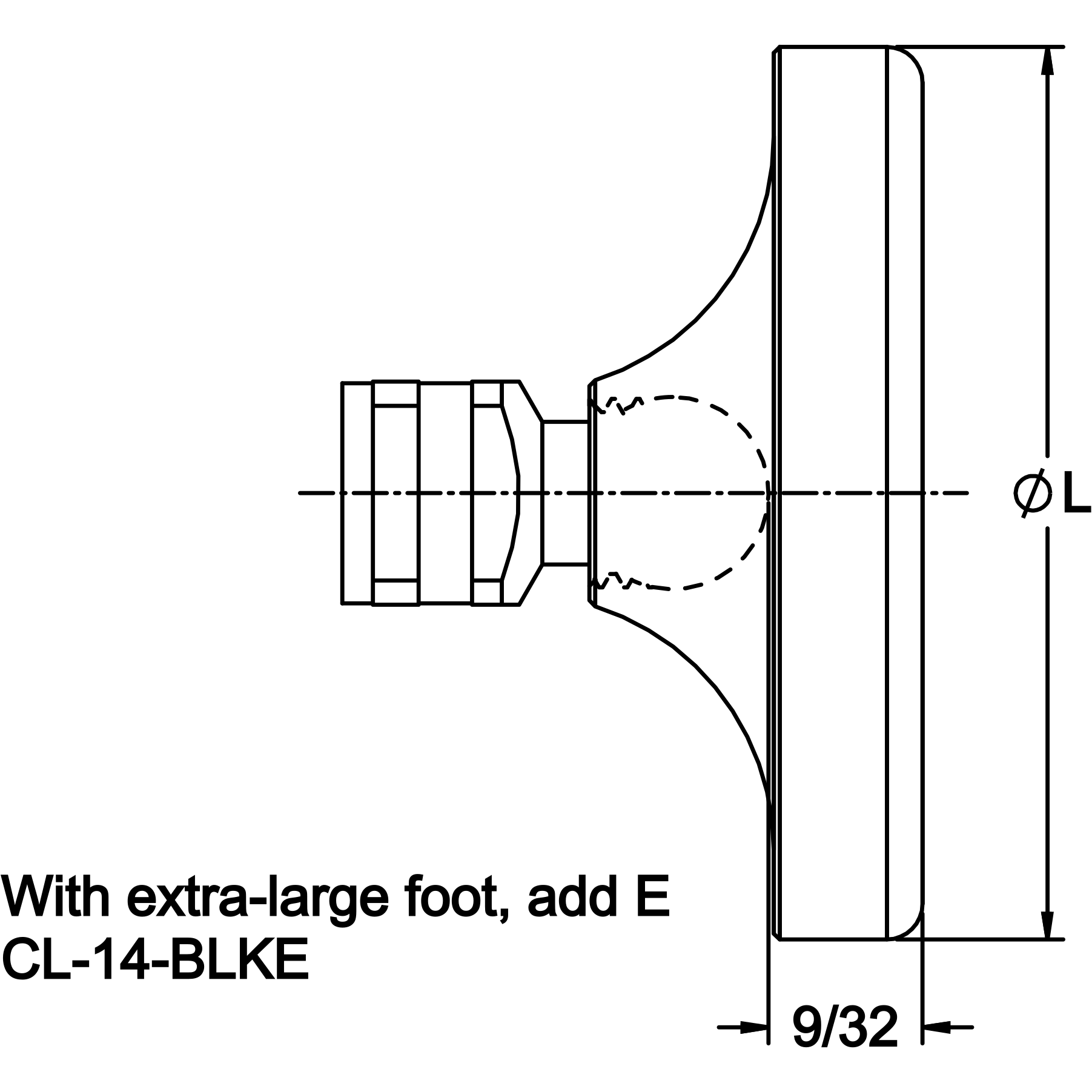

Screw Clamp with Extra-Large Foot (Inch)

QUANTITY	PART NO.	A	B	C	F THREAD	G	H	L DIA	M	N	P
	CL-14-BLKE-ZC	3/8	4-11/16	1-5/16	3/4-10	1-3/8	1/8	1.50	.187	1-1/2	2-1/2
	CL-15-BLKE-ZC	3/8	5-11/16	2-5/16	3/4-10	1-3/8	1/8	1.50	.187	1-1/2	2-1/2
	CL-16-BLKE-ZC	3/8	6-11/16	3-5/16	3/4-10	1-3/8	1/8	1.50	.187	1-1/2	2-1/2
	CL-25-BLKE-ZC	1/2	5-3/8	1-5/8	7/8-9	1-11/16	1/16	2.00	.218	1-1/4	3
	CL-26-BLKE-ZC	1/2	6-3/8	2-5/8	7/8-9	1-11/16	1/16	2.00	.218	1-1/4	3
	CL-28-BLKE-ZC	1/2	8-3/8	4-5/8	7/8-9	1-11/16	1/16	2.00	.218	1-1/4	3
	CL-210-BLKE-ZC	1/2	10-3/8	6-5/8	7/8-9	1-11/16	1/16	2.00	.218	1-1/4	3
	CL-212-BLKE-ZC	1/2	12-3/8	8-5/8	7/8-9	1-11/16	1/16	2.00	.218	1-1/4	3
	CL-35-BLKE-ZC	5/8	5-3/8	1-5/8	1-1/8"-7	1-11/16	1/16	2.00	.218	1-1/4	3
	CL-36-BLKE-ZC	5/8	6-3/8	2-5/8	1-1/8"-7	1-11/16	1/16	2.00	.218	1-1/4	3
	CL-38-BLKE-ZC	5/8	8-3/8	4-5/8	1-1/8"-7	1-11/16	1/16	2.00	.218	1-1/4	3
	CL-310-BLKE-ZC	5/8	10-3/8	6-5/8	1-1/8"-7	1-11/16	1/16	2.00	.218	1-1/4	3
	CL-312-BLKE-ZC	5/8	12-3/8	8-5/8	1-1/8"-7	1-11/16	1/16	2.00	.218	1-1/4	3

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
