ROEMHELD STARK.easyclick

ROEMHELD Zero-Point,Quick-Change

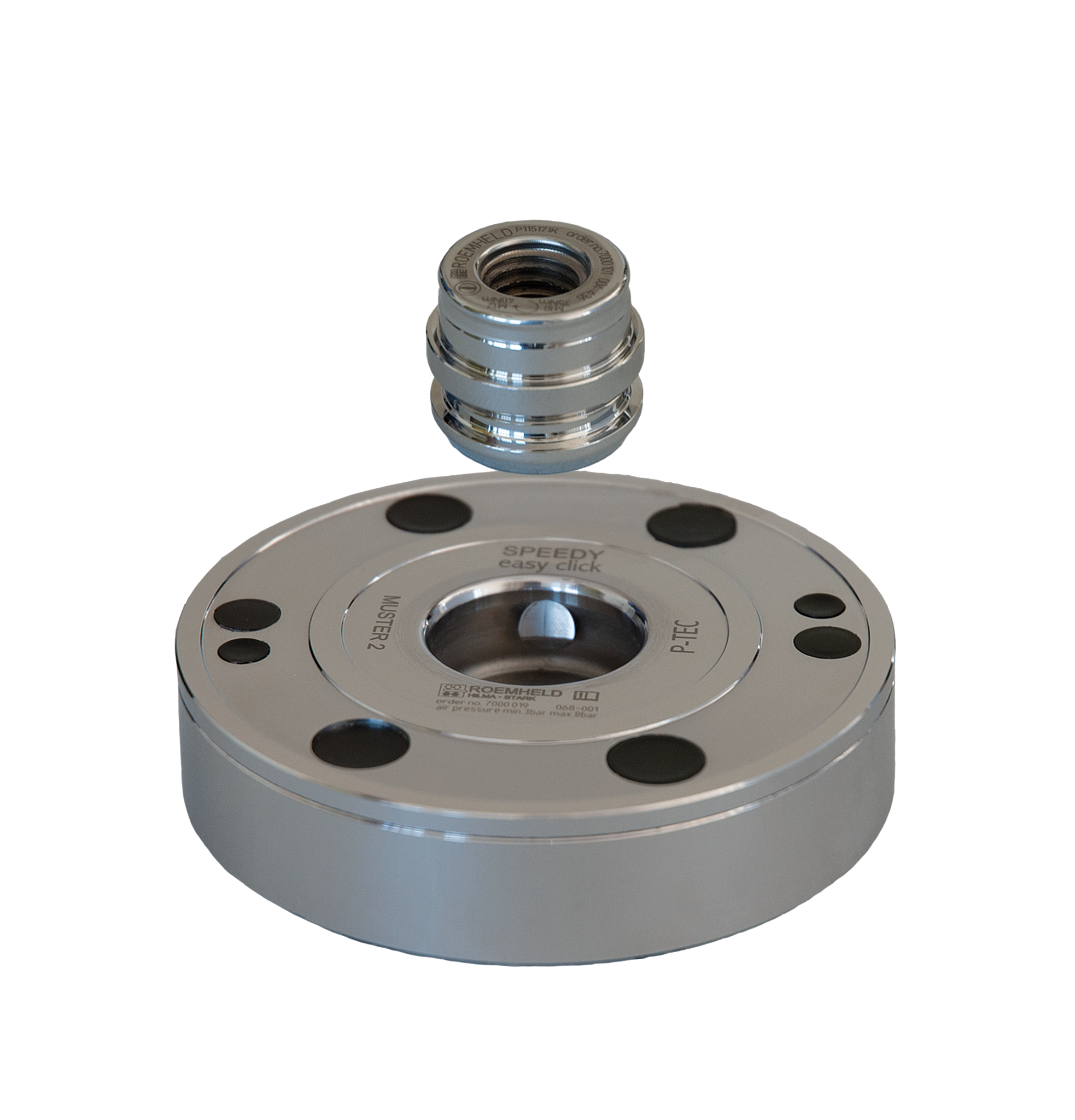

STARK.easyclick Clamps
QUANTITY PART NO. Article Designation Function Max Clamping
(Insertion) Force (kN)
Max Retention
Force (kN)
Dimensions

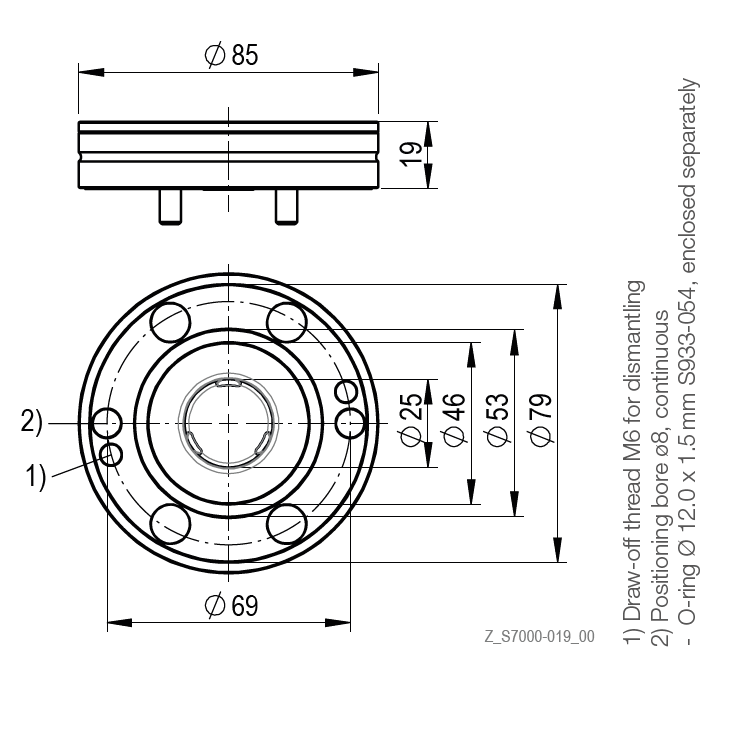

CLR-S7000-019 SM E1 P 050 D085 ST NP Standard Pneumatic 5 10 For further technical & dimensional information see data
sheet under Documents tab and CAD Model.

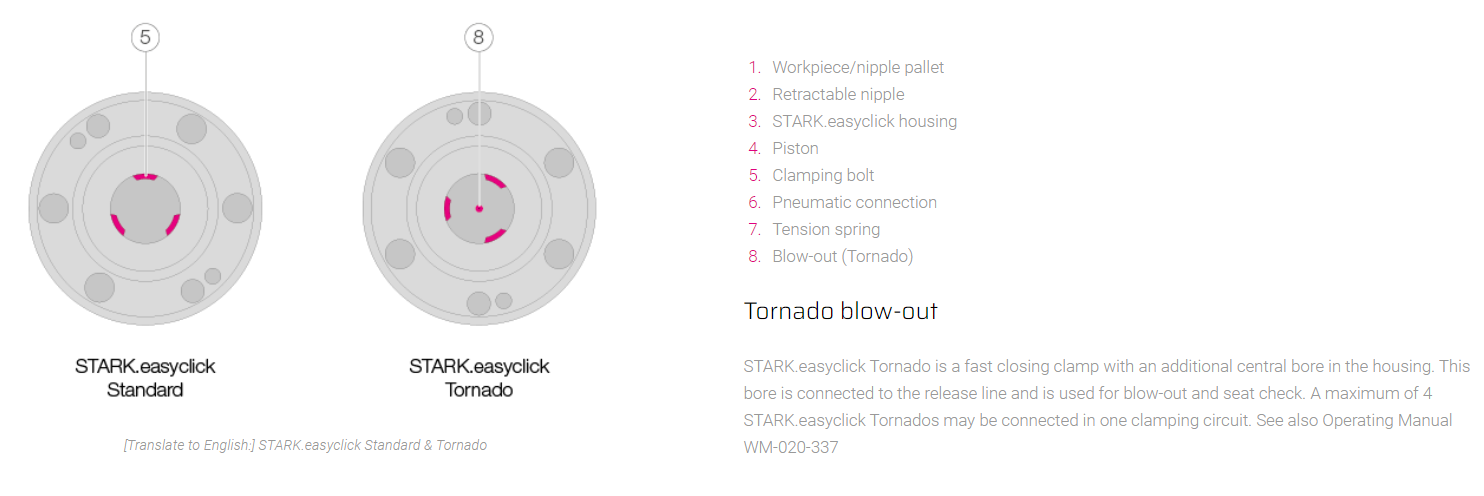

CLR-S7000-119 SM E1 P 050 D085 TO NP Standard Pneumatic
with blow out
5 10 For further technical & dimensional information see data
sheet under Documents tab and CAD Model.
STARK.easyclick Nipples (Pull Studs)
QUANTITY PART NO. Description Dimensions

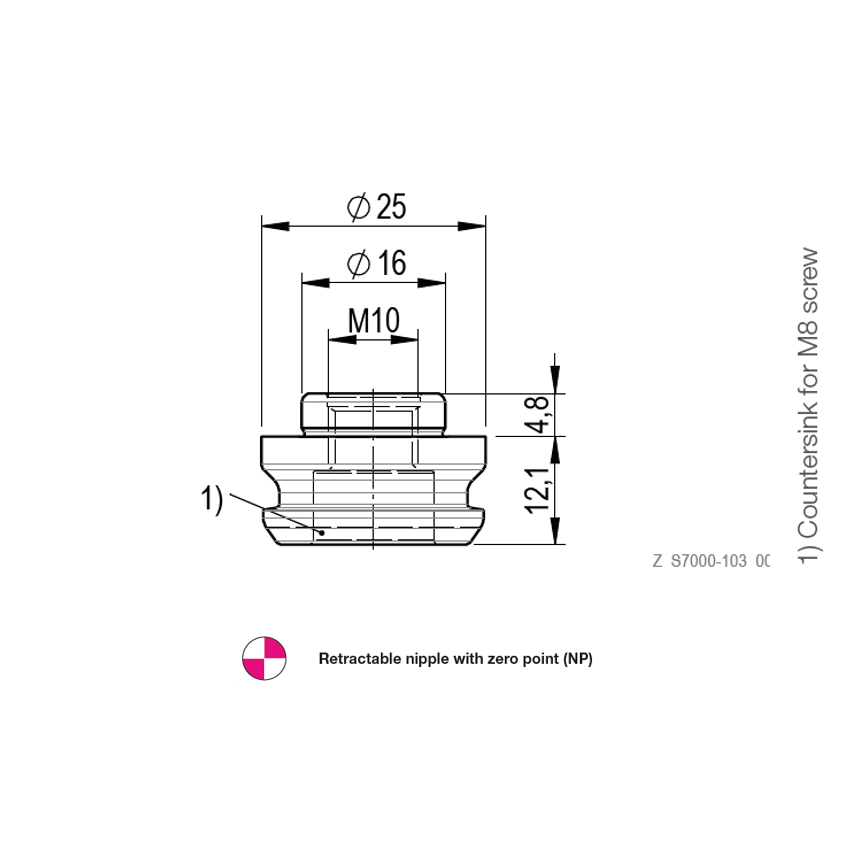

CLR-S7000-103 Zero Point Nipple (round pin) For further technical & dimensional information see data
sheet under Documents tab and CAD Model.

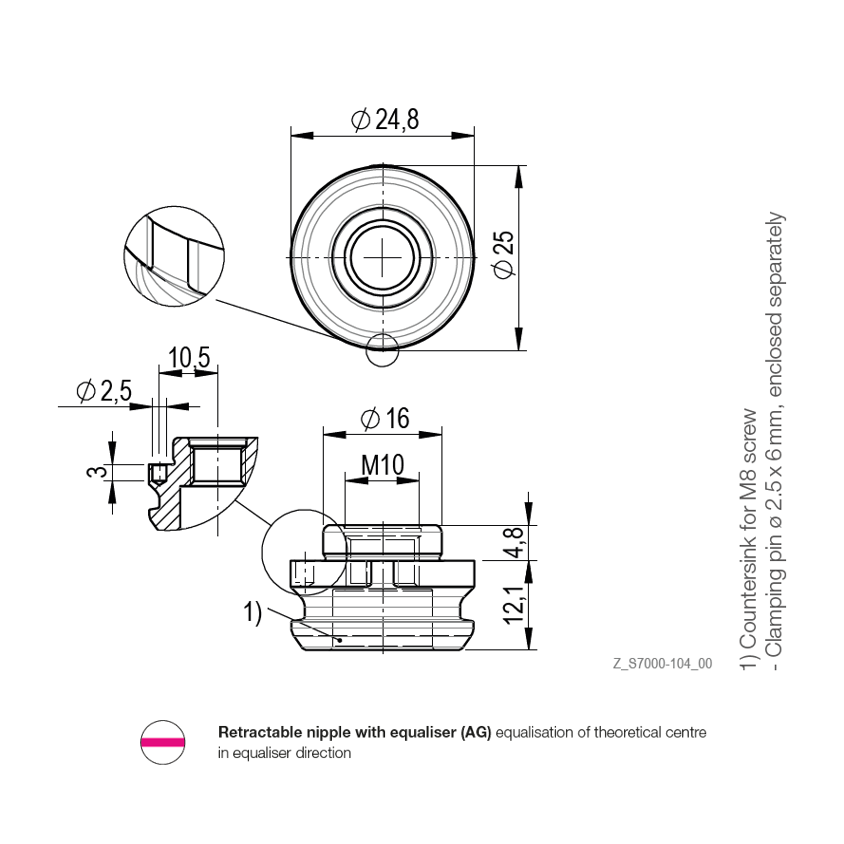

CLR-S7000-104 Equaliser Nipple (diamond pin) For further technical & dimensional information see data
sheet under Documents tab and CAD Model.

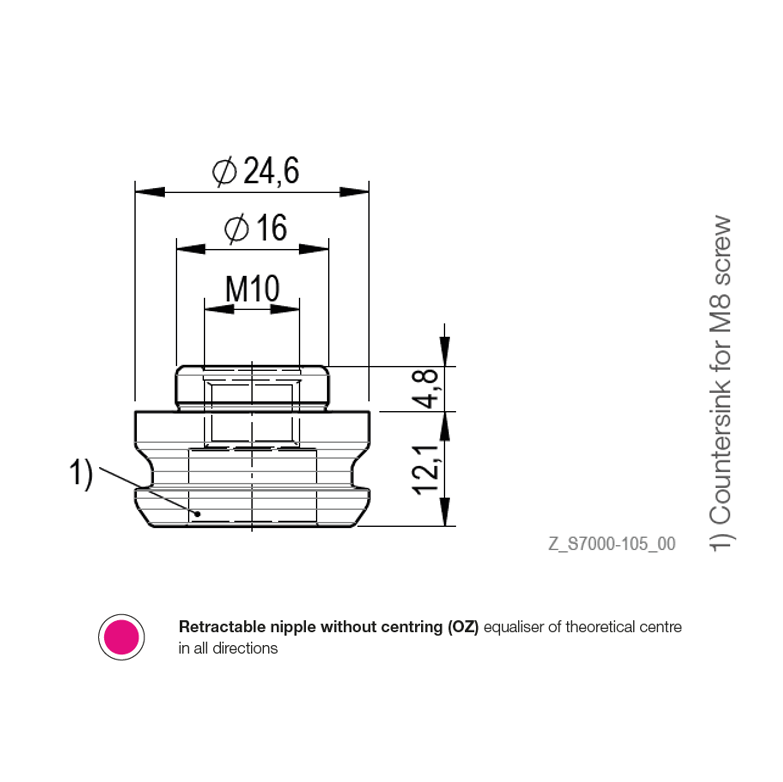

CLR-S7000-105 Without Centering Nipple (floating pin) For further technical & dimensional information see data
sheet under Documents tab and CAD Model.
STARK.easyclick Accessories (see data sheet for additional accessories)
QUANTITY PART NO. Description Dimensions
CLR-S952-242 Diamond locating pin for single clamp applications,
when used in combination with a zero point nipple, Ø8 mm
For further technical & dimensional information see data
sheet under Documents tab and CAD Model.
CLR-S936-134 Dowel pin for single clamp applications,
when used in combination with a equaliser nipple, Ø8 mm
For further technical & dimensional information see data
sheet under Documents tab and CAD Model.
CLR-S936-097 Dowel pin for positioning STARK.easyclick
clamps on a base plate, Ø8 mm
For further technical & dimensional information see data
sheet under Documents tab and CAD Model.
