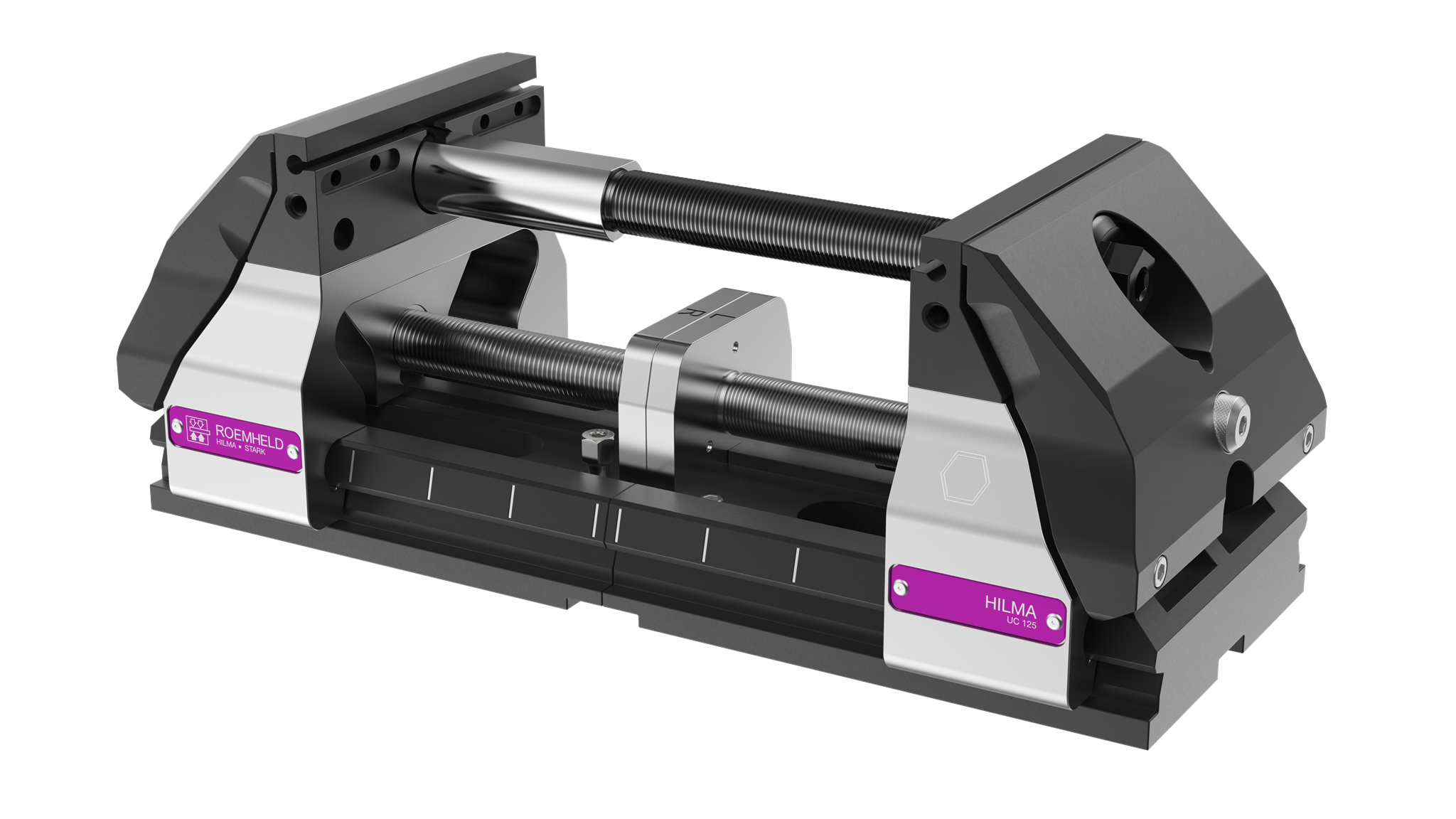

ROEMHELD UC Vise

ROEMHELD Precision Vises

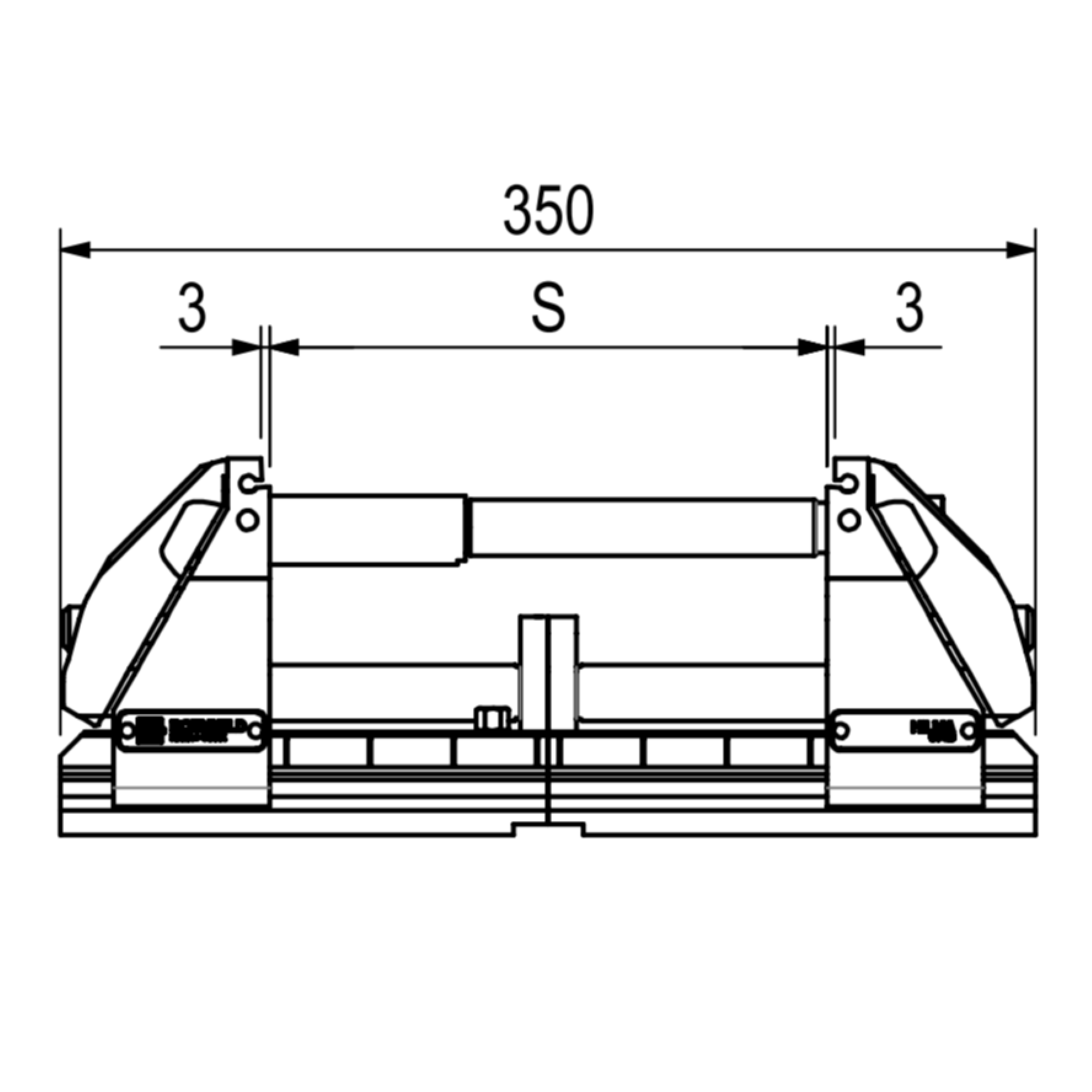

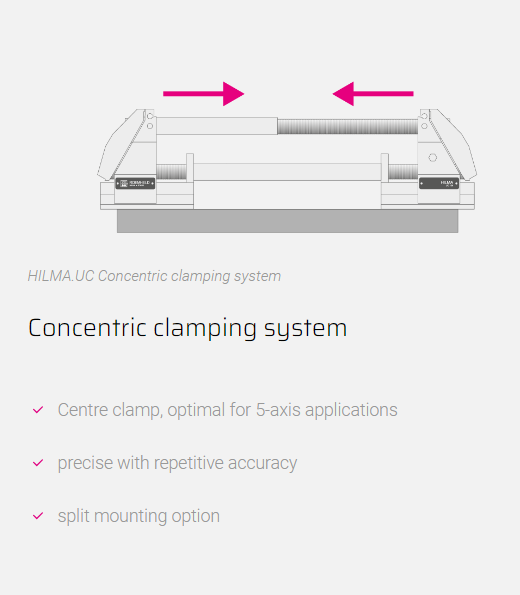

UC 125 - Concentric Manual
QUANTITY Part No. Jaw Width
(mm)
Base Length
(mm)
Clamping Force
(lbs at 89 ft-lbs)
Clamping Force
(kN at 120 Nm)
Clamping Range S
(mm)
Weight
(kg)
Full Technical
Details
CLRH-9-7023-0101 125 350 11,690 52 .0-200 (max. 600) 20 See Data Sheet

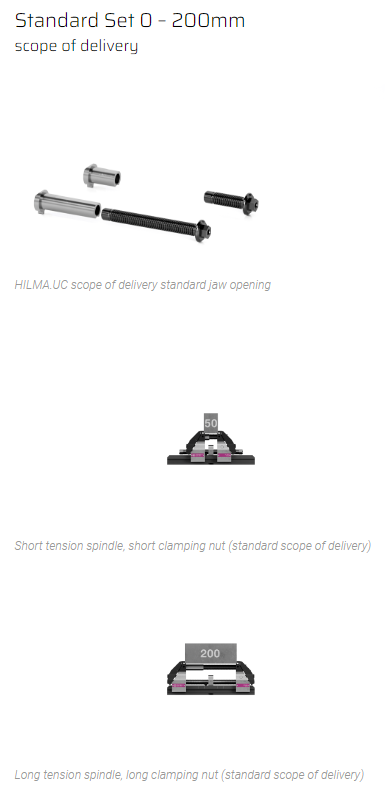

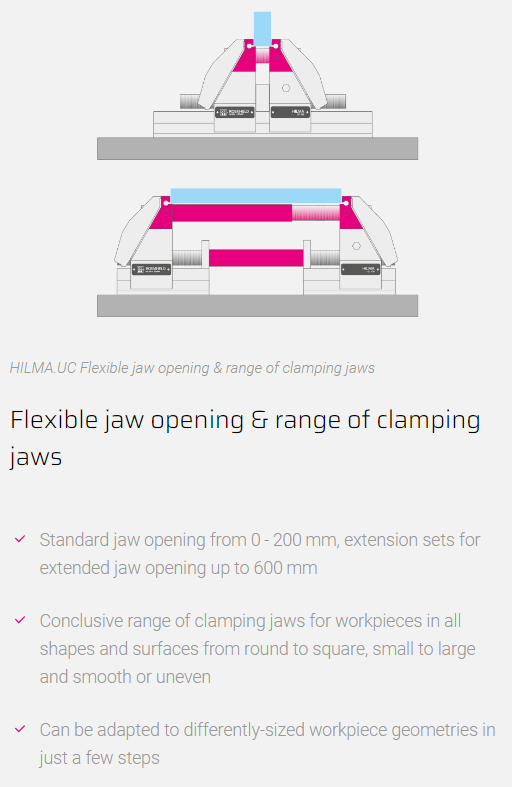

Extension Sets

QUANTITY Part No. Description Includes Clamping Range
(mm)
Full Technical
Details

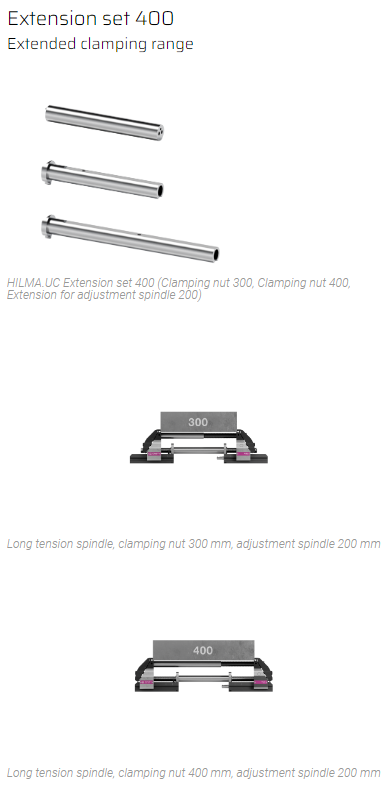

CLRH-9-7023-5002 Extension Set 400 Clamping nut 300
Clamping nut 400
Extension for adjustment spindle 200
196-400 See Data Sheet

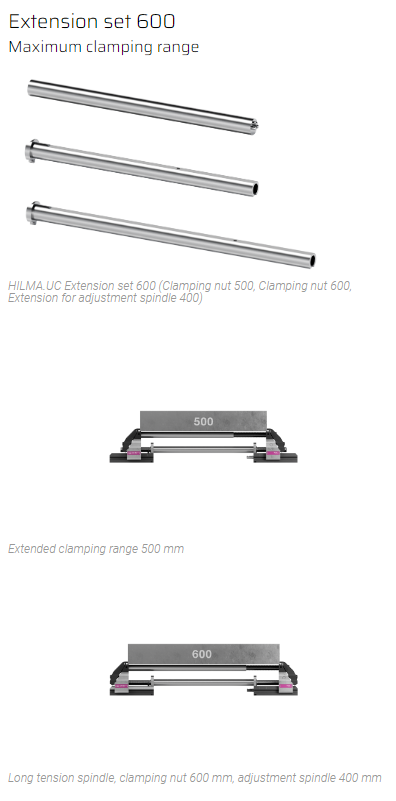

CLRH-9-7023-5003 Extension Set 600 Clamping nut 500
Clamping nut 600
Extension for adjustment spindle 400
196-400 See Data Sheet
Jaws & Jaw Accessories -
*Stated clamping ranges are standard clamping range without extension sets
QUANTITY Part No. Description Includes Clamping Range*
(mm)
Support
Bars
Full Technical
Details

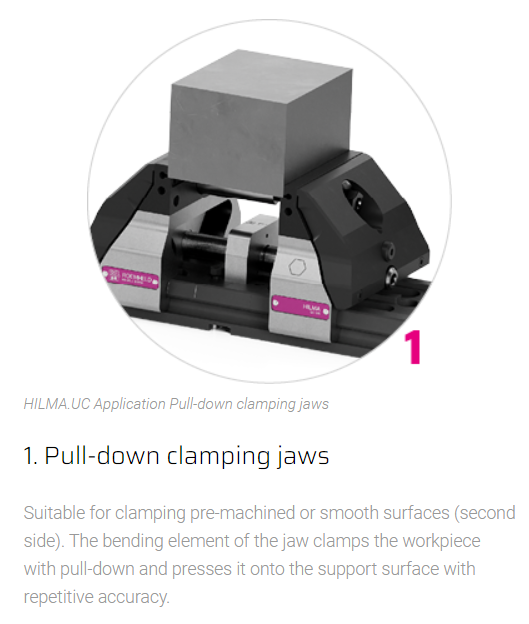

CLRH-9-7023-6001 Pull-down jaws 125mm, hardened 2 pcs. clamping jaws
4 pcs. mounting screws
6 - 206 Optional See Data Sheet

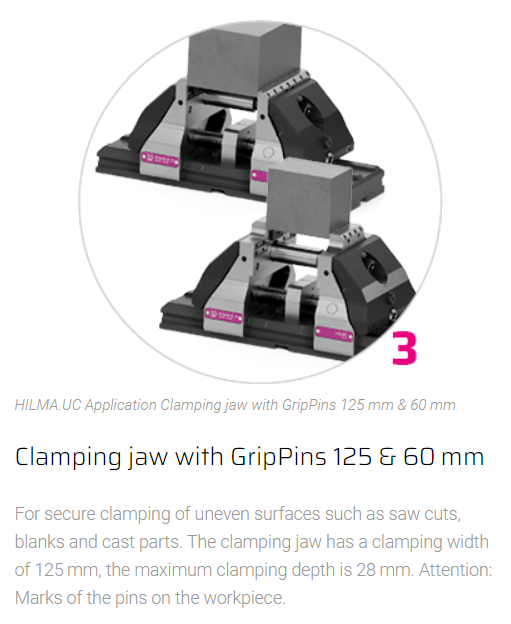

CLRH-9-7023-6002 GripPin jaws 125mm 2 pcs. clamping jaws, 18 GripPins
4 pcs. mounting screws
.0 - 200 Required See Data Sheet
CLRH-9-7023-6003 GripPin jaws 60mm 2 pcs. clamping jaws, 12 GripPins
4 pcs. mounting screws
.0 - 190 Required See Data Sheet

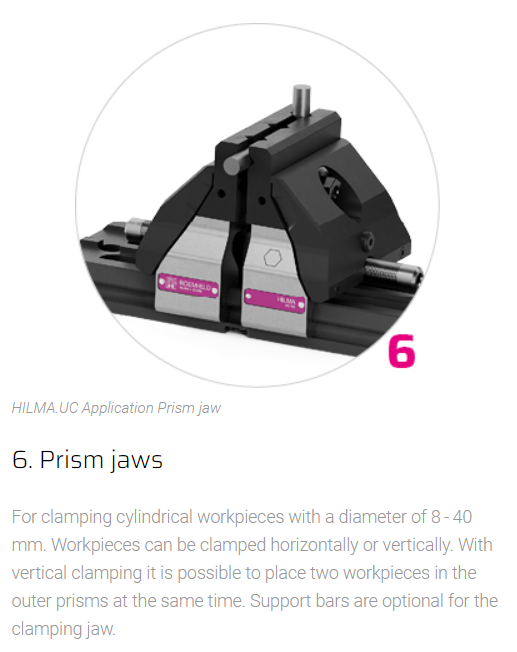

CLRH-9-7023-6004 Prism jaws, hardened 2 pcs. Prism jaws
4 pcs. mounting screws
8 - 40 Optional See Data Sheet

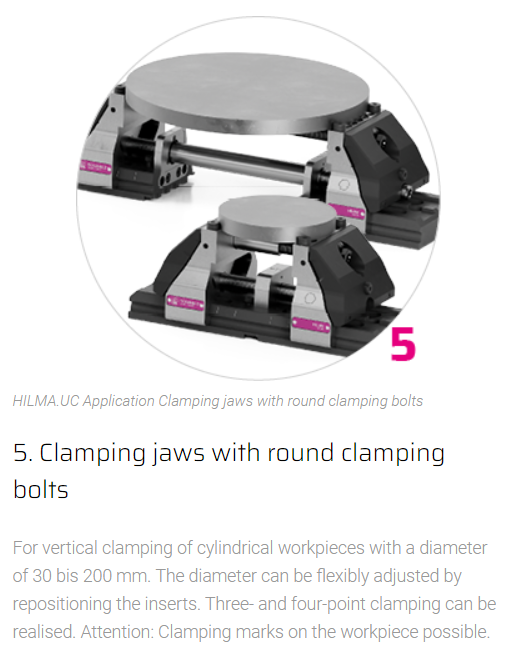

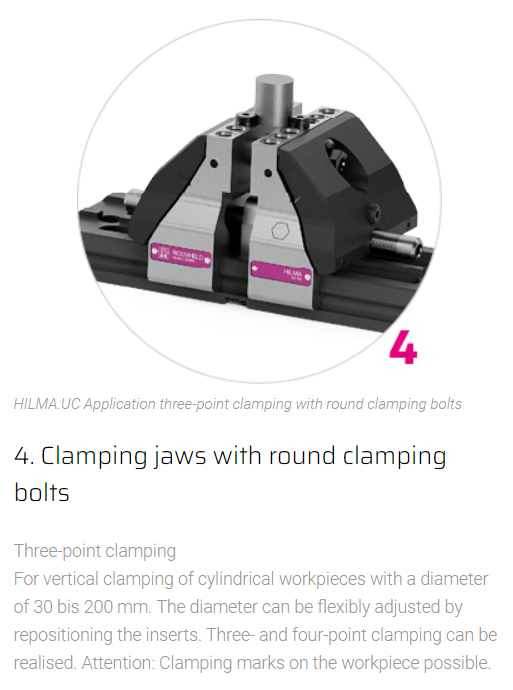

CLRH-9-7023-6005 Jaws with round clamping bolts 2 pcs. clamping jaws
4 pcs. mounting screws
30 - 200 - See Data Sheet

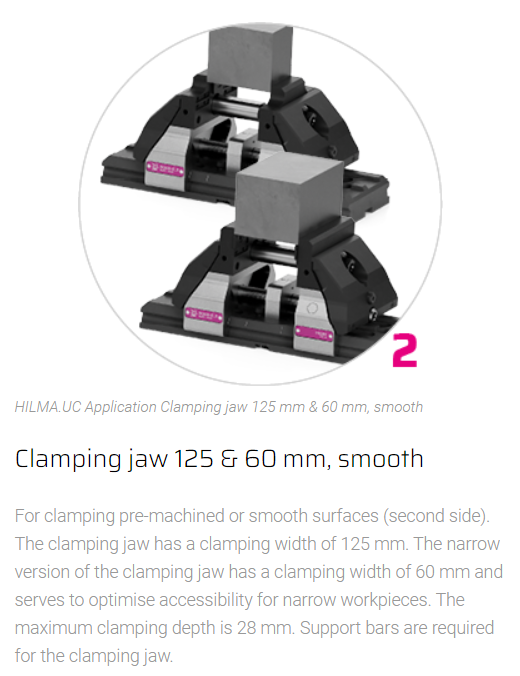

CLRH-9-7023-6006 Smooth jaw 125, hardened 2 pcs. clamping jaws, 4 round clamping bolts
4 pcs. mounting screws
.0 - 190 Required See Data Sheet
CLRH-9-7023-6007 Smooth jaw 60, hardened 2 pcs. clamping jaws
4 pcs. mounting screws
.0 - 190 Required See Data Sheet
CLRH-9-7023-6008 Soft jaws 2 pcs. clamping jaws
4 pcs. mounting screws
.0 - 190 - See Data Sheet
CLRH-9-7023-5004 GripPins, spares 10 pcs. Spare pins D7 - - See Data Sheet
CLRH-9-7023-5005 Support bars 3.5mm, hardened 4x support bars 3.5mm for 3mm/8mm height of supports
4x support bars 3.5mm for 5mm/10mm height of supports
4 pcs. mounting screws
min. 7 - See Data Sheet
CLRH-9-7023-5016 Round clamping bolts 2 pcs. round clamping bolts
- - See Data Sheet
CLRH-9-7023-5017 Support bars 5.5mm, hardened 4x support bars 5.5mm for 3mm/8mm height of supports
4x support bars 5.5mm for 5mm/10mm height of supports
4 pcs. mounting screws
min. 11 - See Data Sheet
Accessories
QUANTITY Part No. Description Includes Full Technical
Details
CLRH-9-7023-5001 Riser, 35mm 2 pcs. riser
4 pcs. mounting screws, M10x45mm
See Data Sheet
CLRH-9-7023-5006 Clamping claw set 4 pcs. Clamping claws
4 pcs. M12x30mm
4 pcs. T-nut 18mm
4 pcs. T-nut 14mm
See Data Sheet

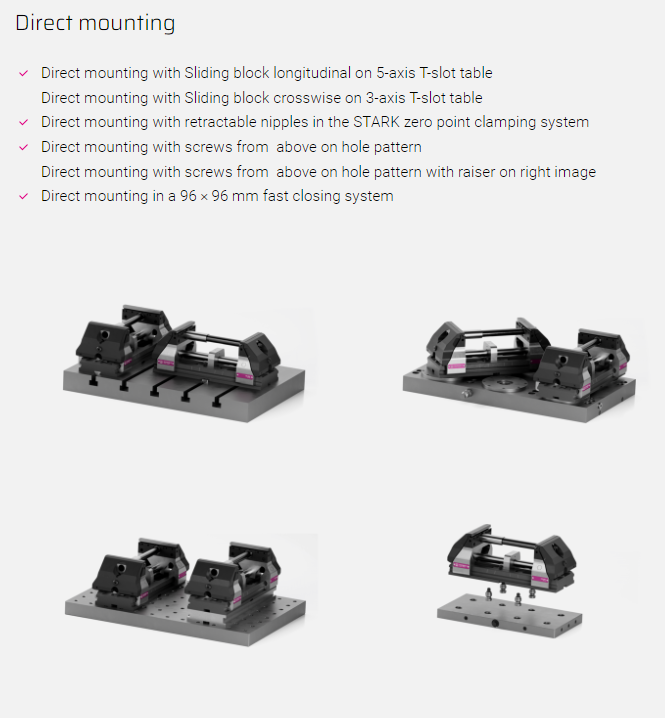

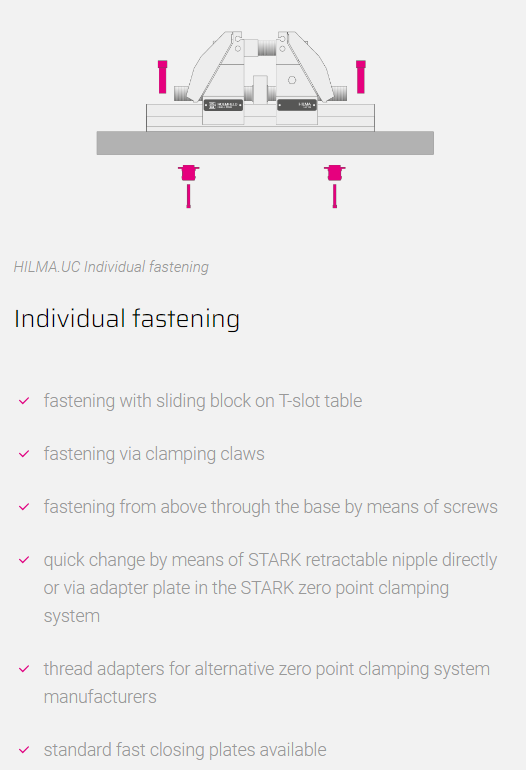

CLRH-9-7023-5007 Fastening set for T-slot table 2 pcs. fitting sliding block
2 pcs. M6x16
4 pcs. T-nut 18mm
4 pcs. T-nut 14mm
4x M12x40mm incl. washers
4 pcs. Locating pins 12x20
See Data Sheet

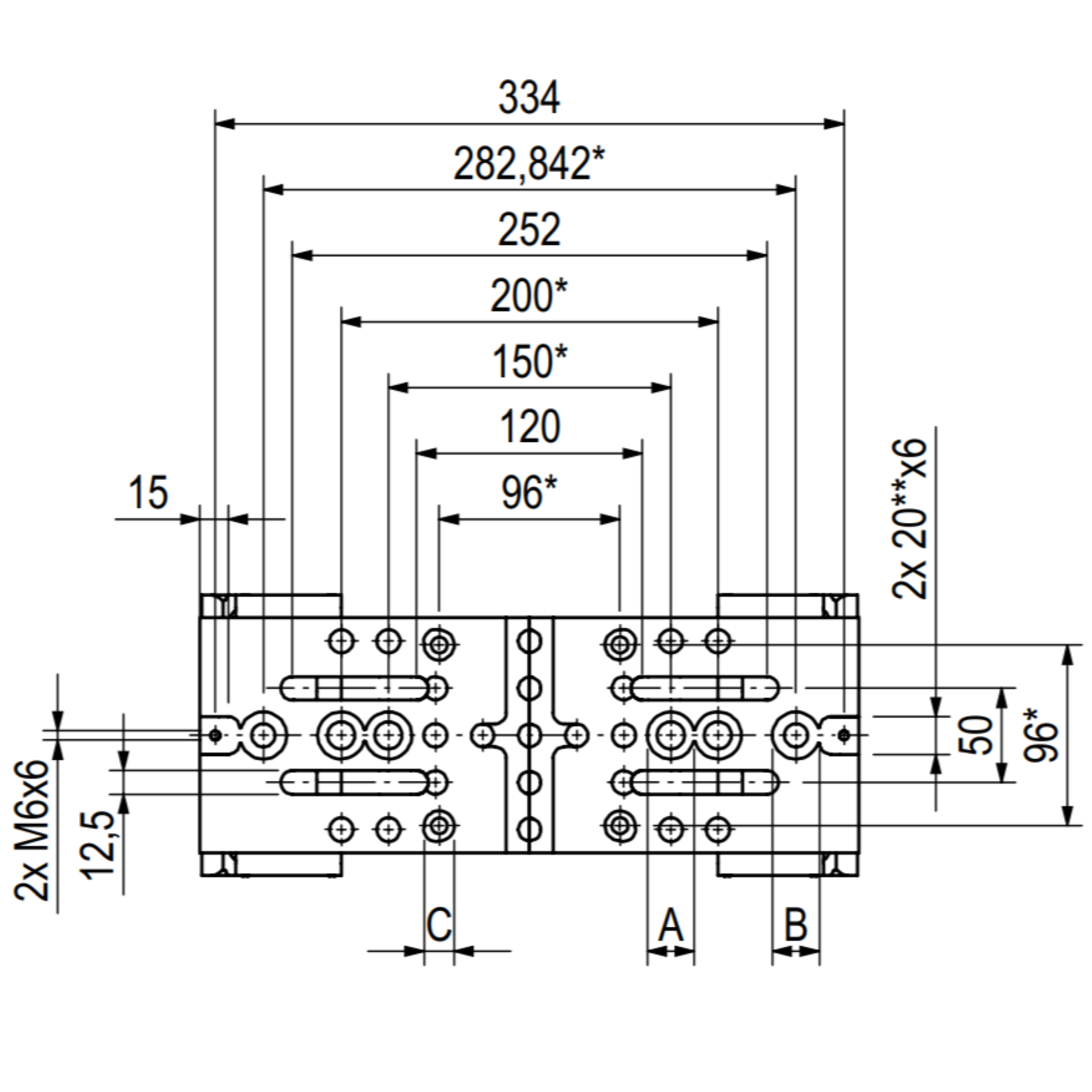

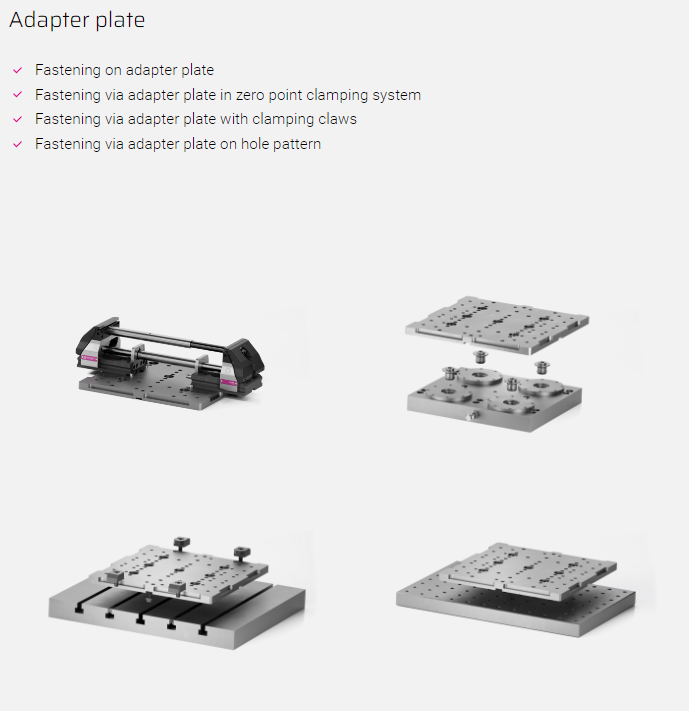

CLRH-9-7023-5008 Adapter Plate, allows quick and
precise positioning of UC Vise in the
standard and extended configurations
1x adapter plate 150 x 400mm
Holes for pull studs Holes for locating pins and mounting screws
See Data Sheet
CLRH-9-7023-5009 Adapter Plate, allows quick and
precise positioning of UC Vise in the
standard and extended configurations
1x adapter plate 400 x 400mm
Holes for pull studs Holes for locating pins and mounting screws
See Data Sheet
CLRH-9-7023-5010 Adapter Plate, allows quick and
precise positioning of UC Vise in the
standard and extended configurations
1x adapter plate 600 x 400mm
Holes for pull studs Holes for locating pins and mounting screws
See Data Sheet
Zero-point Quick Change Base Plates - Spring Clamp, Hydraulic Release
QUANTITY Part No. Description Size Active Pull-in Force
(lbs)
Active Pull-in Force
(kN)
Full Technical
Details
CLR-S804-726 4-fold classic 2 plate (S804-452) 4x 396x346x46mm
200 x 200mm spacing
27,000 120 See Data Sheet
CLR-S804-727 6-fold classic 2 plate (S804-452) 6x 596x346x46mm
200 x 200mm spacing
27,000 120 See Data Sheet
CLRH-9-7023-5014 Pull stud set for direct
mounting of UC Vise
1x zero point pull stud
1x diamond pull stud
4x Mounting screws for above & below mounting
2x Threaded insert M10
- - See Data Sheet
CLR-S804-470 Zero point pull stud (NP) For classic 2 zero-point systems - - See Data Sheet
CLR-S804-471 Diamond pull stud (AG) For classic 2 zero-point systems - - See Data Sheet
CLR-S804-472 Floating pull stud (OZ) For classic 2 zero-point systems - - See Data Sheet
Zero-point Quick Change Base Plates - Spring Clamp, Pneumatic Release
QUANTITY Part No. Description Size Retention Force
(lbs)
Retention Force
(kN)
Full Technical
Details
CLR-S805-307 4-fold basic M plate (S804-452) 4x 396x346x46mm
200 x 200mm spacing
12,140 54 See Data Sheet
CLR-S805-308 6-fold basic M plate (S804-452) 6x 596x346x46mm
200 x 200mm spacing
12,140 54 See Data Sheet
CLRH-9-7023-5015 Pull stud set for direct
mounting of UC Vise
1x zero point pull stud
1x diamond pull stud
4x Mounting screws for above & below mounting
2x Threaded insert M10
- - See Data Sheet
CLR-S8000-300 Zero point pull stud (NP) For basic M zero-point systems - - See Data Sheet
CLR-S8000-301 Diamond pull stud (AG) For basic M zero-point systems - - See Data Sheet
CLR-S8000-302 Floating pull stud (OZ) For basic M zero-point systems - - See Data Sheet
